Harris NetWave User Manual

Revision A • 6/06
HARRIS CORPORATION
2-30
2 Installation
VISTAMAX NETWORK CONNECTIONS
When the optional VistaMax Link is activated, the NetWave’s RJ-45 VistaMax Link connection, located next
to the DC power connector, connects the console to any available Hub Card facet on a VistaMax or Envoy card
frame using a
Link cable . A Link cable is a single CAT-5e or CAT-6 crossover cable up to 300 feet [100 meters] in
length. It carries 64 audio channels bi-directionally between the NetWave console and the Hub card. Sources
from the VistaMax system may also have logic signals associated with the audio to control the console channels.
The console channel on and off logic can also control associated logic outputs on the VistaMax system.
The RJ-45 LAN connectors on the rear panel tie the optional Dual Router panels individually to the VistaMax
LAN. These can be directly connected to the main network switch (where all of the card frames, RMX
d and
BMX
d consoles, the administration computer and the VistaMax edge device panels connect) or, when several
Dual Router panels are installed, they can be connected to a small network hub or switch which in turn connects
to the main network switch. Refer Chapter 4, and to the VistaMax (75-52) or Envoy (75-55) manuals, for addi-
tional details on Link cables, Dual Router panel LAN cables and for setup and configuration details.
VISTAMAX ENVOY FRAME WITH ONE ANALOG I/O CARD (99-1340-1A)
(standard configuration, rear view)
STANDARD NETWORK SWITCH
(UNMANAGED-TYPE)
LOGIC I/O
INACTIVE
CTRL COM
NORMAL
/ DATA
PRE99-1365
A B C
A B C
32
29
28
25
24
21
20
17
16
13
12
9
8
5
4
1
LOGIC INPUTS
LOGIC OUTPUTS
+
_
+ 5
32
29
28
25
24
21
20
17
16
13
12
9
8
5
4
1
+
_
+ 5
NETWAVE-8 CONSOLE,
With two optional
Dual Router Kits
installed into the first
two Dual Fader panels
All network cables are
CAT-5, straight-thru type
LINK CABLE
(CAT-5e or CAT-6
Crossover cable)
STANDARD NULL
MODEM CABLE
WINDOWS®
COMPUTER
To/From additional:
RMXdigital consoles;
BMXdigital consoles;
VistaMax frames;
Envoy frames;
NetWave Dual Router kits;
VistaMax control panels
VISTAMAX LAN CABLES
(CAT-5)
LINK CABLES
TO THREE
ADDITIONAL
CONSOLES
LINK CONNECTOR
(RJ-45)

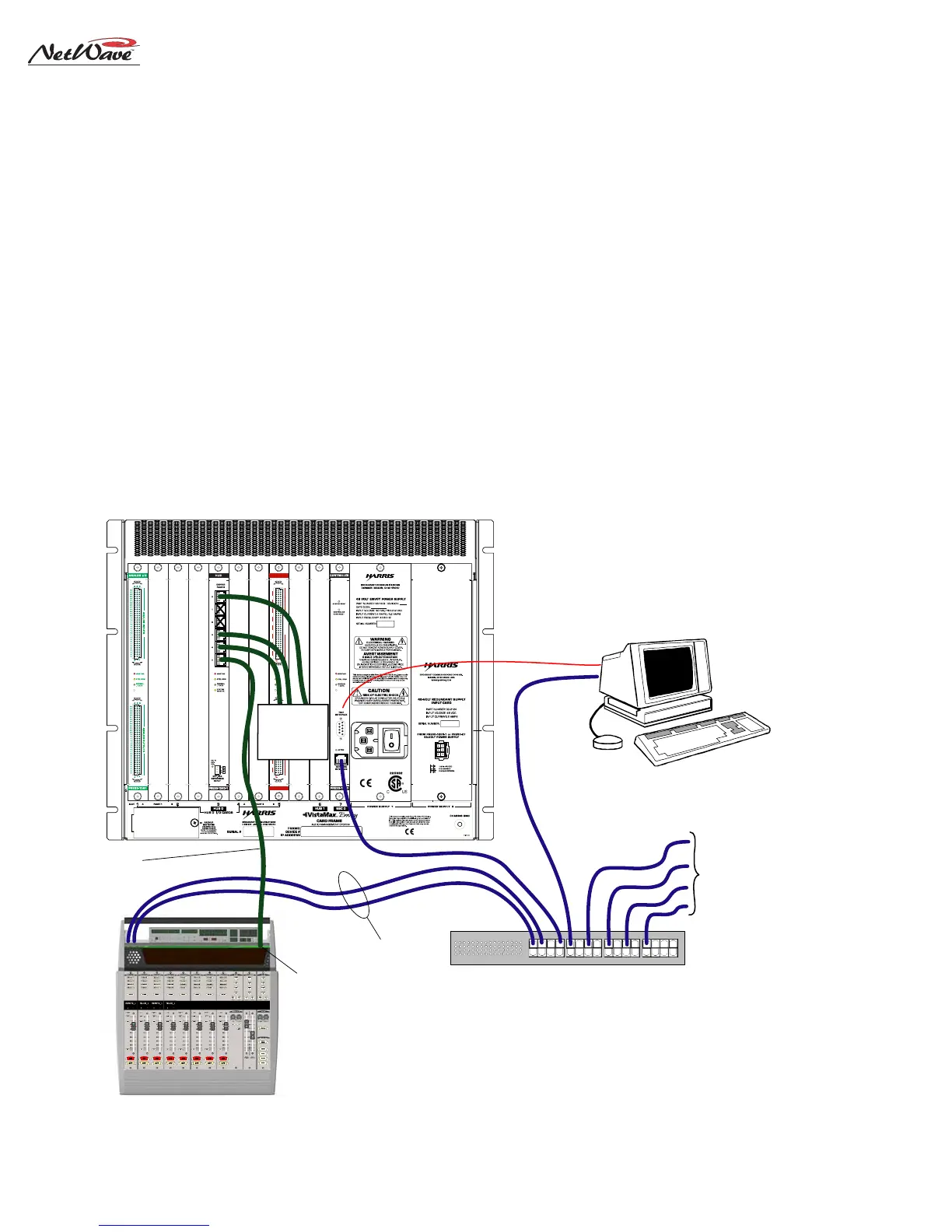

NetWave Console Link and LAN Connections
