Thanks for joining the growing ranks of
broadcasters employing Harris Corporation prod-
ucts designed by PR&E. Our mission: provide the
finest quality products, systems, documentation and
after-sale support.
To obtain the maximum benefit from the
NetWave’s capabilities, read through the chapters
on
Installation
and
Operation
prior to the actual
product installation.
NetWave consoles have these parts:
• Main Frame: with 8, 16 or 24 channel slots
• Monitor & Output Card: one per console
• DSP & I/O Card: one on 8-input frames; two
on 16-input frames; three on 24-input frames
• Monitor Panel: one per console
• Dual Fader Panel: four on 8-input frames; six
on 16-input frames; nine on 24-input frames
• Reflective Display: clock, timer and two meters
are standard, an additional two meters can be
added to the NetWave-16 and NetWave-24
• Dual Width Blank Panel: two standard on
NetWave-16; three on NetWave-24 (cover the
unpopulated channel slots)
• 48-volt Supply: an in-line supply is standard
on the NetWave-8 and NetWave-16; a rack-
mount supply is standard on the NetWave-24
(optional on the other frame sizes)
• Installation Materials: installation kit; Net-
Wave CD-ROM; NetWave Quick Guide
• Toolkit (optional): 76-1901 toolkit
• Printed Manual (optional): 75-54 NetWave
Installation & Operation manual
Introducing
NetWave

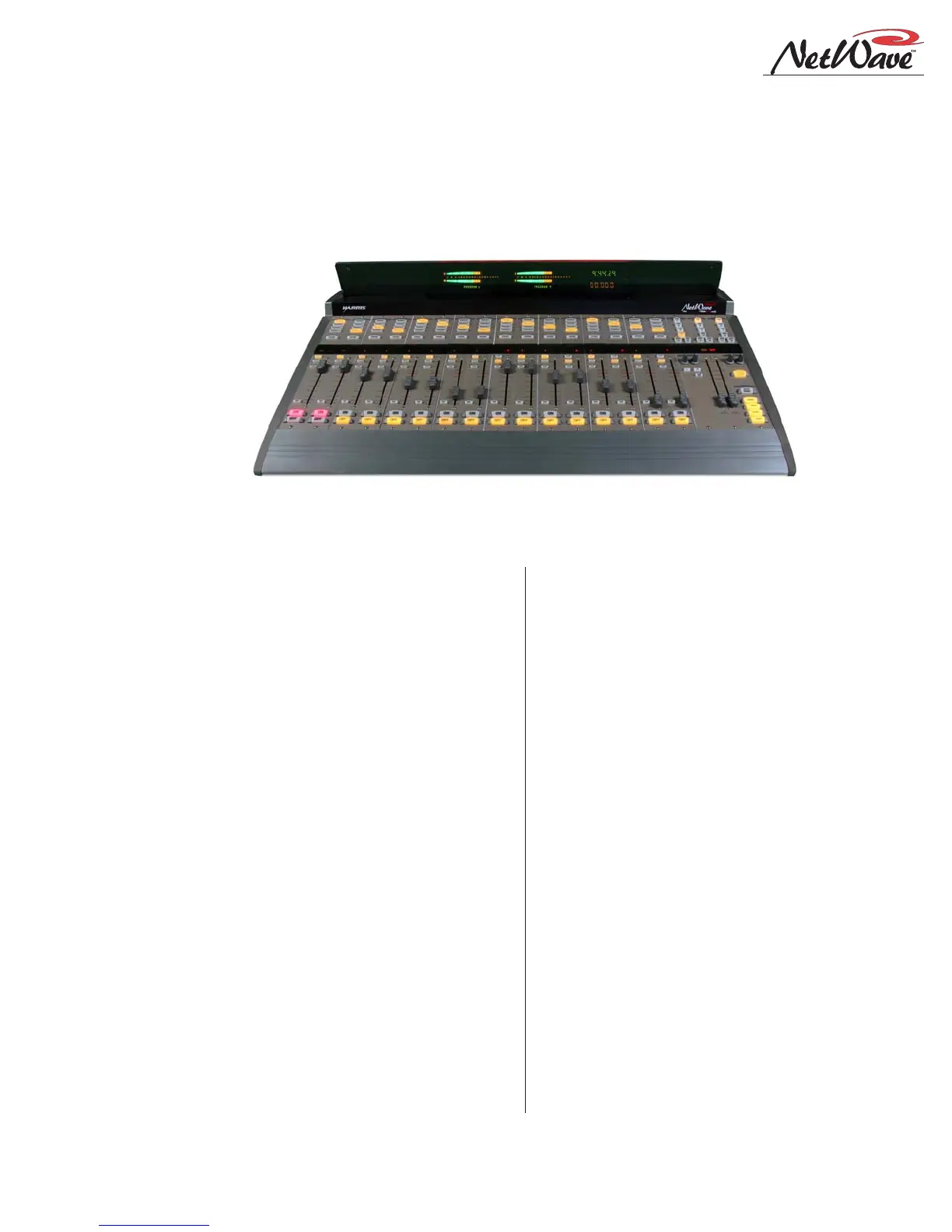

NetWave-16 Console
