crophones. The appropriate Room Code is then
set on each mic input. When the mic is routed
to a channel strip, its room code is compared
with the assigned room codes on the console so
that the appropriate monitor output is muted
and the correct warning command is output
while the mic channel is On.
The remaining signal entries are set in the Con-
sole pane. Highlight the console name, then
scroll up or down to see these items.
Create Console Include Lists
Only those signals without checkmarks in the
Hidden column can be added to an include list.
An Include List is the master signal source or
destination list for a console. The source include
list sets which signals are available for routing
(e.g. which ones are shown in the source selec-
tor displays). The destination include list sets
which destinations can have signals routed to
them. This typically only affects edge devices
(e.g. Source Selector panels or Source/Desti-
nation selector panels) since the console does
not have any destination selection device.
To create the signal lists, first highlight a De-
vice name. All of the unhidden sources or des-
tinations on that device are shown in the Avail-
able Signals box. Using standard Windows se-
lection techniques, select the desired signals,
then click the double right arrow key (>>) to
add these signals to the Include Signals list. Re-
peat for the other devices. To remove any sources
from the Include List, highlight the signals then
click the double left arrow key (<<).
Select Monitor/Meter Include Lists & Sources
There are three columns of seven buttons on
the monitor module to select the Aux Meter
source, the Control Room monitor source and
the Studio monitor source. In addition, there
are two source selectors to select an alternate
source for the Control Room and the Studio.
Each selector button is assigned a bus or a
routed signal in VMCC. Up to fifteen routed sig-
nals can be set for each Monitor and Meter In-
clude list. Any one of these routed signals can
then be assigned to a button. The ones not as-
signed to a monitor button are called up using
the monitor source selector controls.
Buttons have default sources assigned (PGM
1 thru PGM 4, Send, Real Air) by VMCC, but
any button can be reassigned, and relabeled, as
needed. The monitor and meter include lists are
set just like the console include lists by high-
lighting a device, selecting which signals should
be assigned, then clicking the double right ar-
row (>>) key to add them to the list. Note that
each of these lists can only have fifteen sources
in their include lists.
To remove any sources from the Include List,
highlight the signals then click the double left
arrow key (<<).
Assign Room Mute Codes
Each console has three monitor outputs that
can be muted (CR, Studio 1 and External) to
prevent “hot mics” from feeding back through
in-room monitor speakers. A numeric code

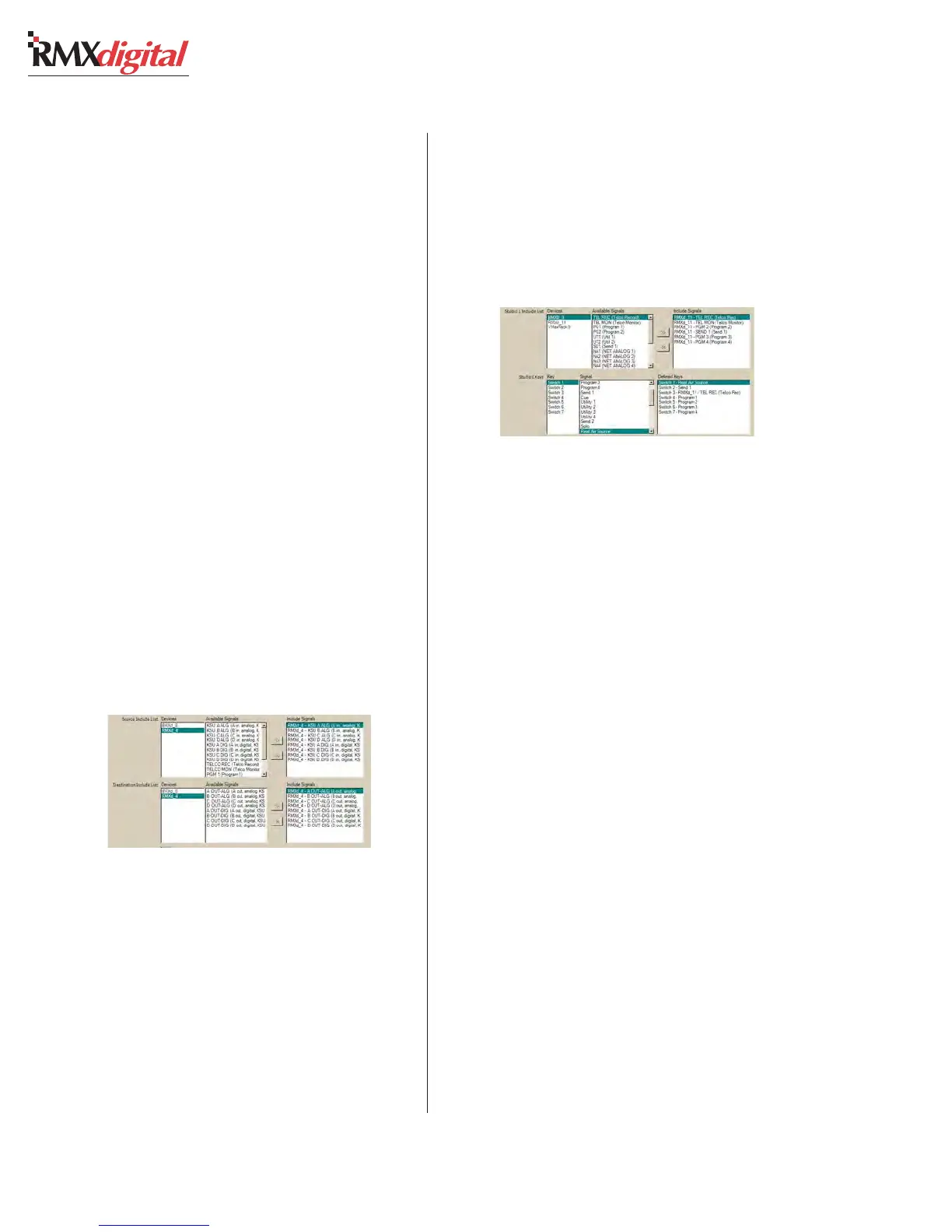

Setting Signal Include Lists
Setting Meter and Monitor Include Lists
and Selector Button Sources
