HARTING Han M23 - Han M23 Power Hybrid Technical Characteristics

51
30

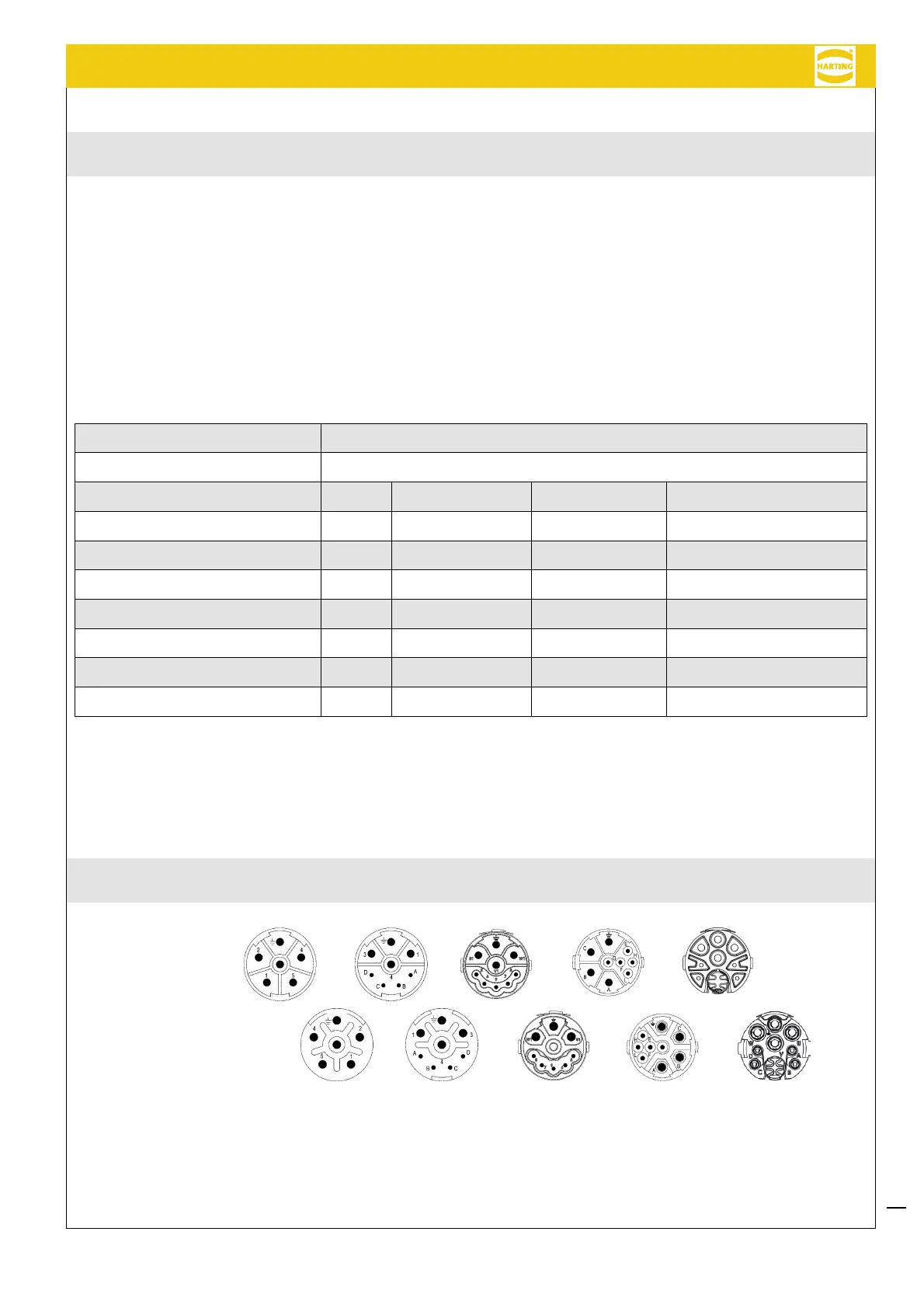

Technical characteristics
Hoods and housings
Material Copper zinc alloy
Surface Nickel plated
Seal NBR
Limiting temperatures -40 °C … +125 °C
Degree of protection and seal in locked position IP67 / IP69K
Clamping range 7 – 17 mm
Material Thermoplastic polyamid
Termination technique Crimp
Number of poles 5 + PE 4 + 3 + PE 5 + 3 + PE 4 + 4 + 3 + PE
Number of contacts 6 4 4 5 4 4 4 4
Contact-Ø mm 2 1 2 1 2 0.60 1 2
Rated current A 28 8 28 10 28 2 8 28
Rated voltage
1)
V 600 300 600 250 630 60 300 630
Test voltage V 4000 2500 4000 2500 4000 500 2500 4000
Insulation resistance MΩ > 10
13
> 10
13
> 10
13
> 10
6
> 10
10
> 10
13
Max. contact resistance mΩ 3 3 3 < 3 < 3 < 3
1)
According to DIN VDE 0627, metallic parts which may be touched by a person and may have voltages present under fault conditions
must have integral protection.
Inserts – mating faces
Power / Hybrid
Han
®
M23 Power / Hybrid Technical characteristics
