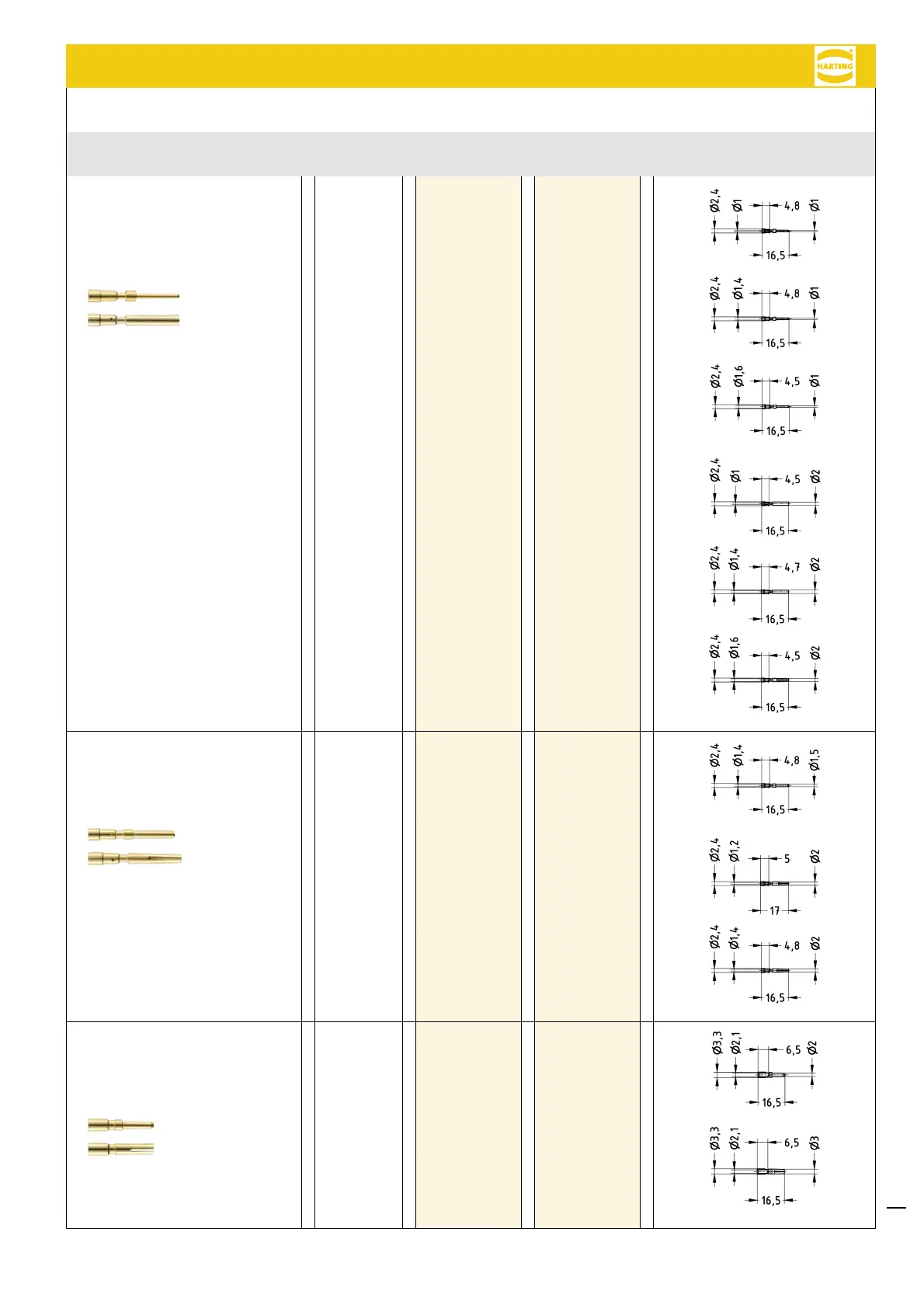

HARTING Han M23 - Han M23 Signal Contacts

51
19
09 15 100 6201
09 15 100 6202
09 15 100 6203
09 15 100 6211
09 15 100 6212
09 15 100 6221
09 15 100 6101
09 15 100 6102
09 15 100 6103
09 15 100 6111
09 15 100 6121
Han
®
M23 crimp contacts,
1 mm turned;
Contact surface:
gold plated
Han
®
M23 crimp contacts,
1.5 mm turned;
Contact surface: gold plated
Han
®
M23 crimp contacts,
2 mm turned;
Contact surface: gold plated
Conductor cross-section Part number Drawing
Identification (mm²) Male Female Dimension, in mm
0.08 – 0.56
0.14 – 1.00
0.75 – 1.50
0.08 – 0.56
0.34 – 1.00
0.75 – 1.50
0.14 – 1.00
0.14 – 0.56
0.34 – 1.00
0.75 – 2.50
0.75 – 2.50
Han
®
M23 Signal Contacts
