HARTING Han M23 - Page 33

51
33
09 15 600 0303
1)
09 15 600 0313
09 15 600 0308

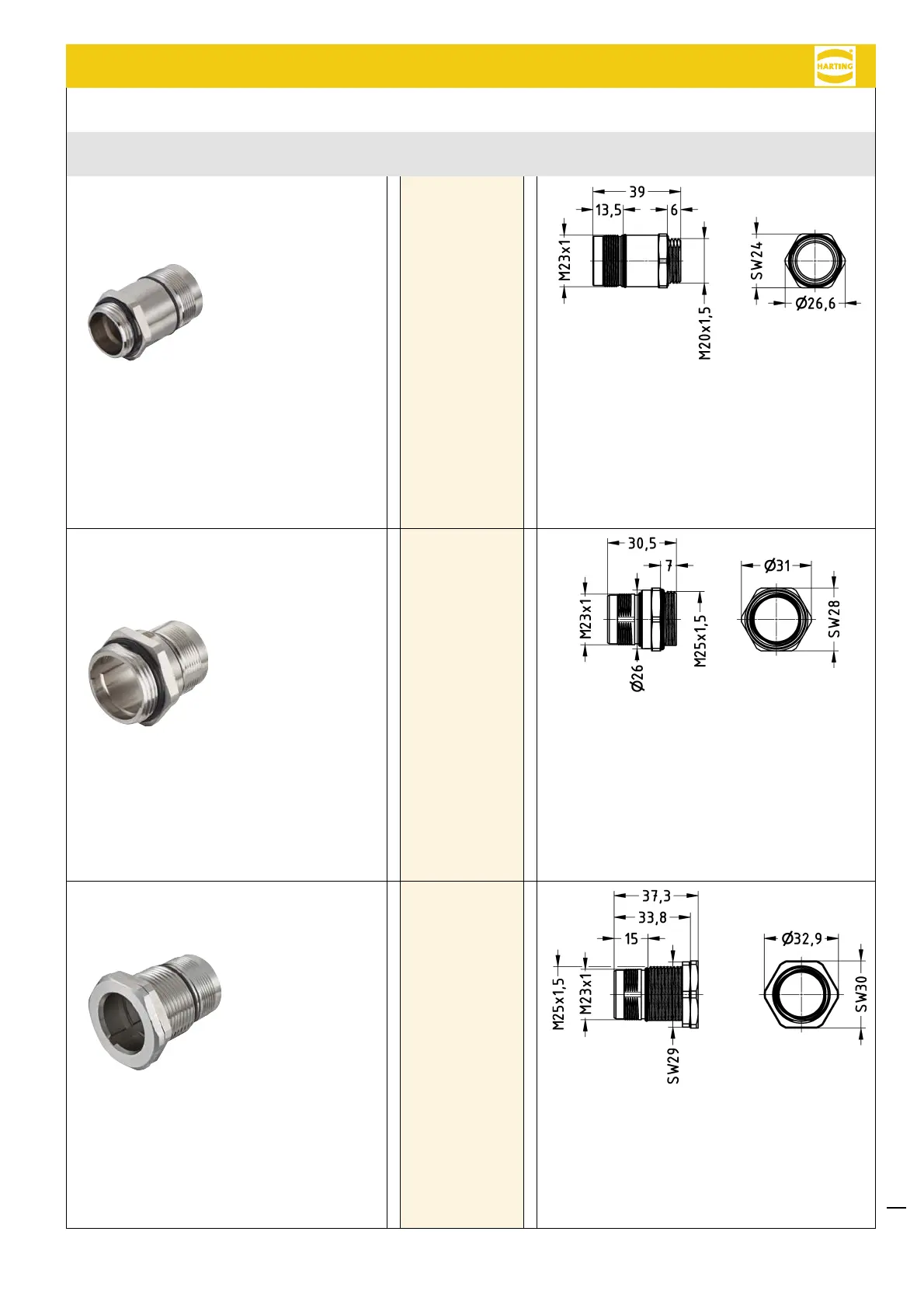

Bulkhead mounted housing,
front wall assembly
(M20 x 1.5)
Bulkhead mounted housing,
front wall assembly
(M25 x 1.5)
Bulkhead mounted housing,
back wall assembly
(M25 x 1.5)
Drawing
Identification Part number Dimensions, in mm
Panel cut out Ø 20.2
Panel cut out Ø 25
Panel cut out Ø 25
1)
Not suitable for rapid locking
Han
®
M23 Power / Hybrid Bulkhead mounted housings
