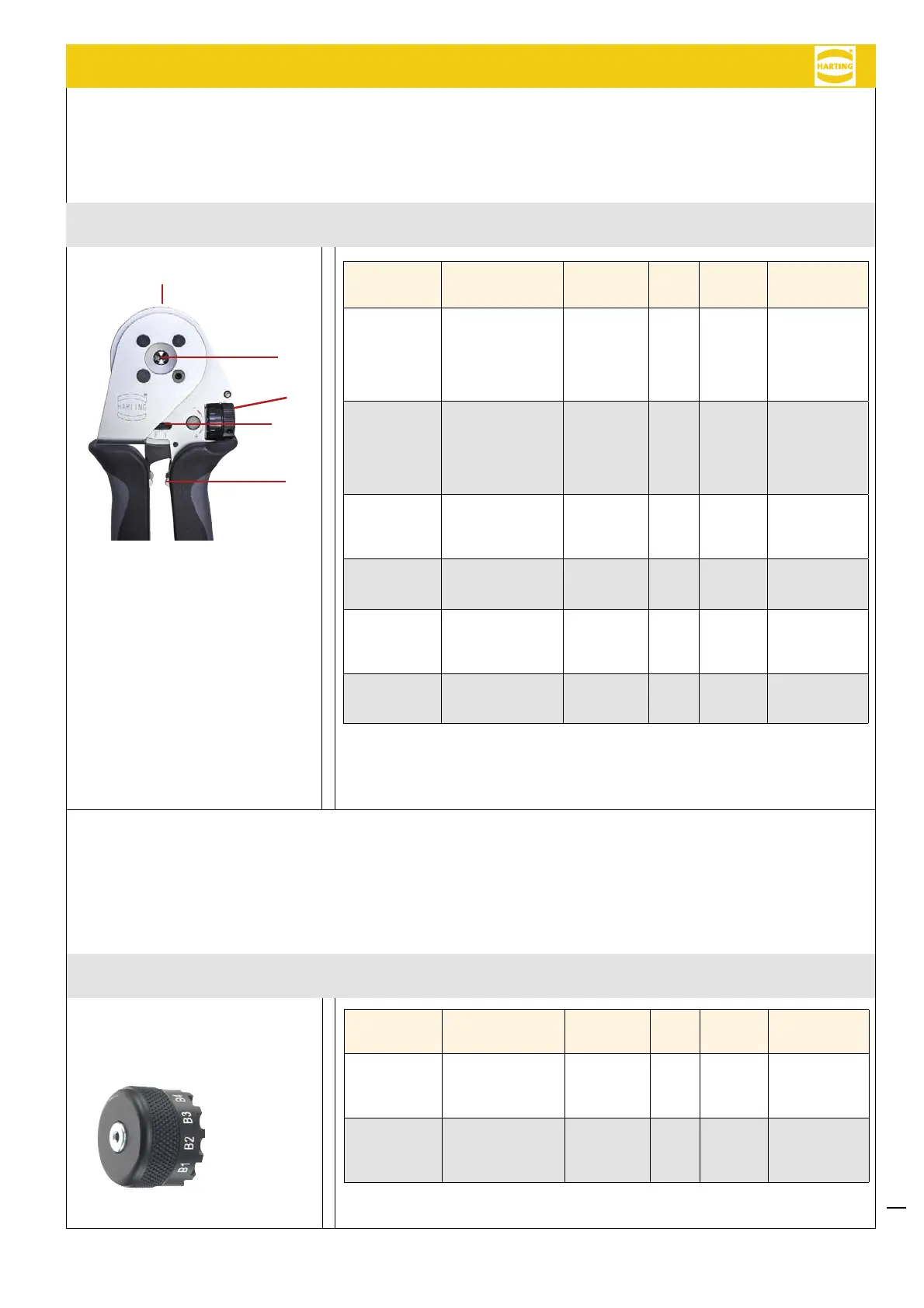

Crimping depth settings for Han
®
M23 Power crimp contacts
Contacts and locator position
Crimping tool for power and signal contacts 09 99 000 0896
Conductor cross-section 0.14 to 4 mm²
Crimping tool for data contacts 09 99 000 0890
For use in combination with Han
®
M23 Locator 09 99 000 0961, Ethernet contacts 0.6 mm²
Ⓐ Tool opening
Ⓑ Settings dial (with 0.01 mm pitch)
Ⓒ Settings scale (with 0.2 mm pitch)
Ⓓ End stop
Ⓔ Locator (on the back of the crimping
tool)
Part number
Crimp contact
Ø
Conductor
cross-section
(mm²)
AWG
Crimping
depth
Locator
position
09 15 600 6101
Male
crimp contact
1 mm
0.14
0.25
0.35
0.5
0.75
1.0
26
24
22
20
18
17
0.75
0.8
0.85
1.03
1.08
1.13
1
09 15 600 6201
Female
crimp contact
1 mm
0.14
0.25
0.35
0.5
0.75
1.0
26
24
22
20
18
17
0.75
0.8
0.85
0.89
0.95
1.02
2
09 15 600 6121
Male
crimp contact
2 mm
0.75
1.0
1.5
2.5
18
17
16
14
1.3
1.4
1.55
1.7
7
09 15 600 6122
Male
crimp contact
2 mm
2.5
4.0
14
12
1.47
1.6
7
09 15 600 6221
Female
crimp contact
2 mm
0.75
1.0
1.5
2.5
18
17
16
14
1.3
1.4
1.55
1.7
8
09 15 600 6222
Female
crimp contact
2 mm
2.5
4.0
14
12
1.47
1.6
8
* Stripping length for Han
®
M23 Power crimp contact:
2.00 mm contact = 7.0 mm
1.00 mm contact = 4.0 mm
Part number
Crimp contact
Ø
Conductor
cross-section
(mm²)
AWG
Crimping
depth
Locator
position
09 15 600 6191
Male
crimp contact
0.6 mm
(0.08 - 0.34 mm²)
0.08
0.14
0.25
0.34
28
26
24
22
0.57
0.60
0.64
0.73
B1
09 15 600 6291
Female
crimp contact
0.6 mm
(0.08 - 0.34 mm²)
0.08
0.14
0.25
0.34
28
26
24
22
0.57
0.60
0.64
0.73
B2
Han
®
M23 Locator, Ethernet contact
0.6 mm – use with crimping tool
09 99 000 0890
Han
®
M23 Power / Hybrid Crimping tools
