HearthStone Quality Home Heating Products, Inc. Luno Model #8160

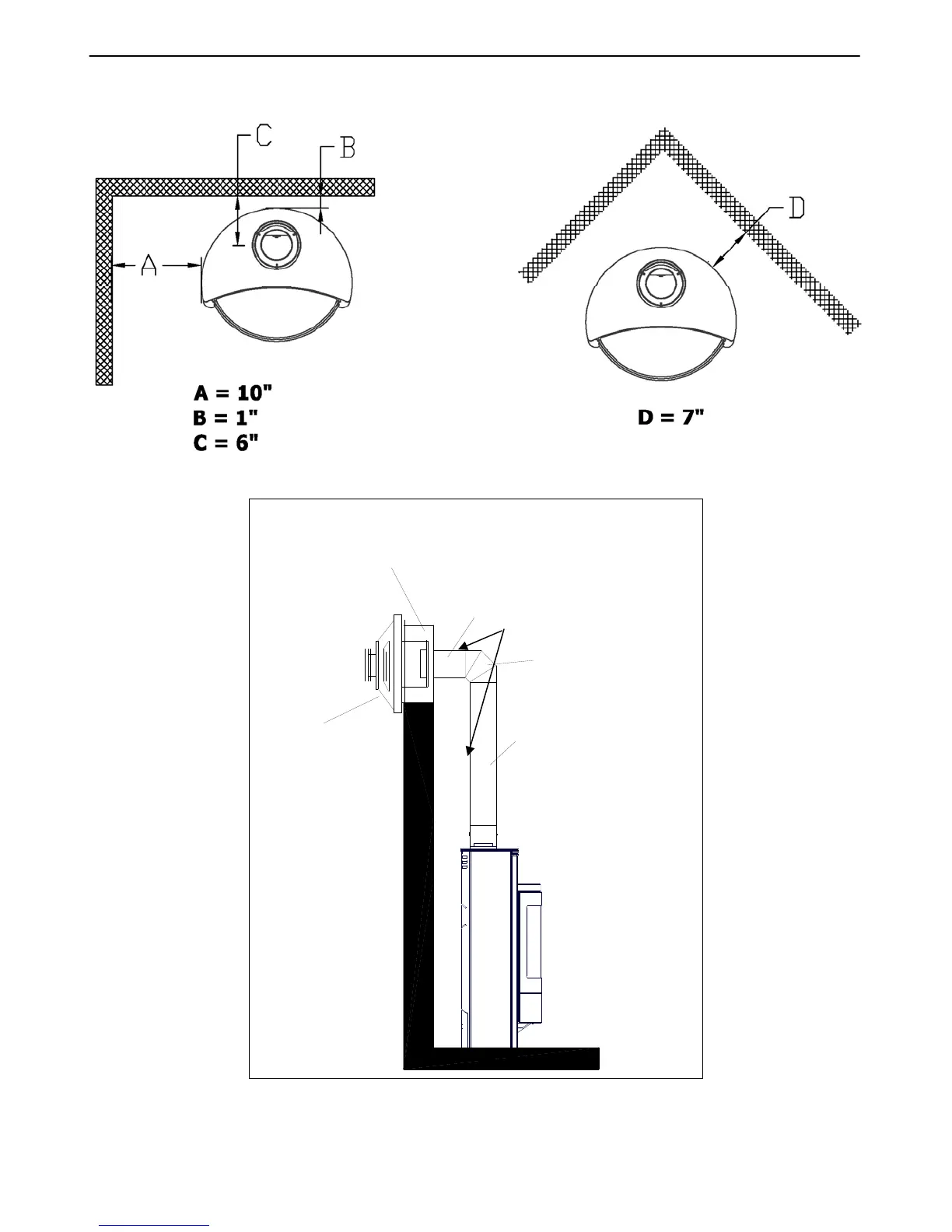

Figure 2 – 8160 Clearance to Combustibles
Termination
cap
1" rear
clearance to
combustible
90 degree
elbow
Minimum
24" pipe
section
Minimum12"
pipe section
Wall
pass-through
2” minimum vent pipe clearance to
combustibles.
Figure 3 - Minimum Vent Configuration and Clearances
