HearthStone Quality Home Heating Products, Inc. LUNO 8160 Gas-Fired Direct-
Vent

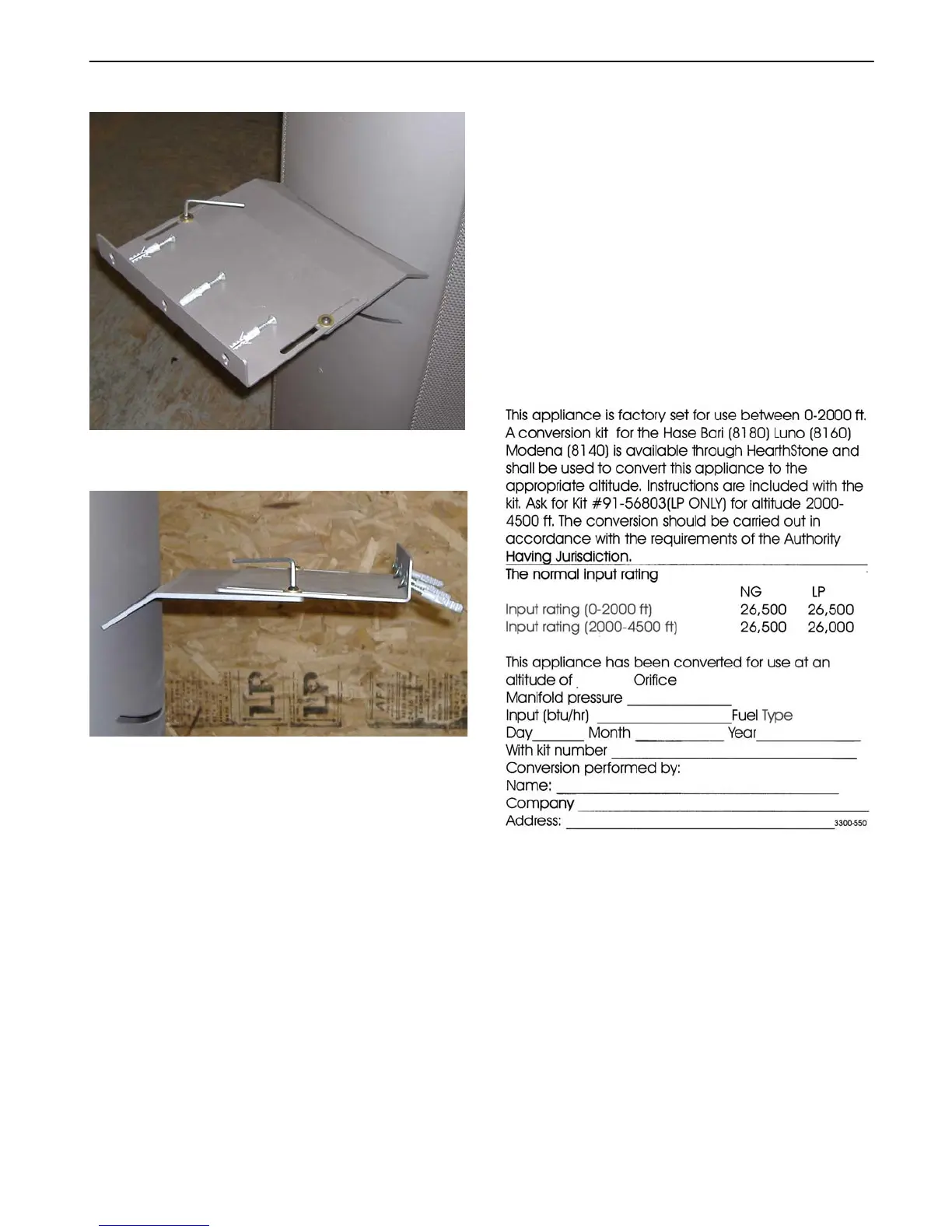

Figure 13 – Structure Attachment Kit (top view)
Figure 14 – Structure Attachment Kit (side view)
Leave the screws loose. Next, level, then slide the rear or
outer plate up tight to the wall. Using the three screws
provided, screw the steel plate to the wall framing. Once
the screws are in place and the stove is in its proper
location, use the provided allen wrench to tighten the two
screws that hold the two plates together.
HIGH ALTITUDE
INSTALLATIONS
For installations from 610-1370 meters altitude (2000-
4500ft) the orifice sizes (DMS) should be 38 for NG and
53 for LP. See the rating label for more information. For
high altitude installations, consult the local gas distributer
or the authority having jurisdiction for proper rating
methods. If the installer must convert the unit to adjust for
varying altitudes, the information sticker (similar to Figure
15) must be filled out by the installer and adhered to the
appliance at the time of conversion. (Cet appareil est
equipe pour des altitudes compries entre 0 et 2000pieds
(0-610m) seulment).
Figure 15 - Altitude Conversion Sticker
22
