Hasselblad 503CX User Manual

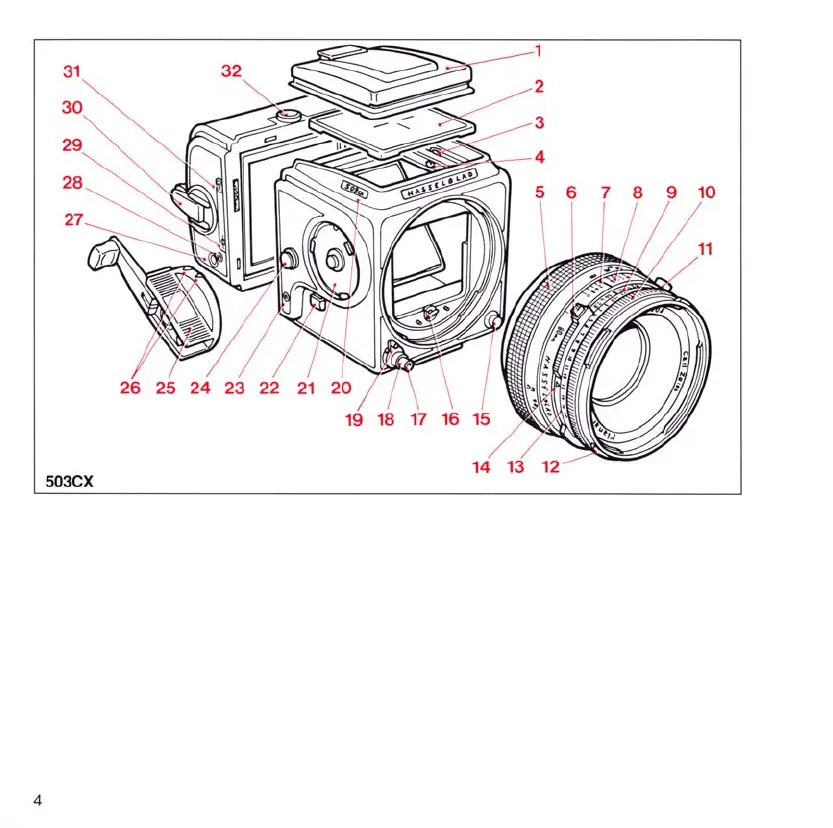

503CX och 500 Classic, Parts and Components
1. Focusing hood
2. Focusing screen 10.
503CX:Acute-Matte’screen
500C/M:Ground-glassscreen
500Classic:Grid&microprism
screen
3. Screen retaining clip
4. Flash function indicator**
5. Focusing ring and scale
6. Shutter speed and aperture
interlock button
7. Central lens index
8. Depth-of-eldscale
9. Aperture ring and scale
10. Shutter speed selector ring
11. PCashterminal
12. External and internal lens
accessory mount
13. Exposure value scale
14. Exposure value index
15. Lens release button
16. Drive shaft
17. Threaded cable release socket
18. Shutter release button
19. Time exposure catch
20. Name plate**
21. Winding crank bayonet
22. Pre-release button
23. Camera status indicator
24. Strap lug
25. Winding crank
26. Winding crank index
27. Frame counter
28. Magazine status indicator
29. Film plane index
30. Film winding crank
31. Magazine designation
32. Magazine catch

Hasselblad 503CX Specifications

General

Camera Type	Medium format SLR
Image Size	6x6 cm
Focus	Manual
Film Format	120/220
Lens Mount	Hasselblad V-system
Shutter Speed	1/500 sec to 1 sec, Bulb
Viewfinder	Interchangeable waist-level or prism
Shutter Type	Focal-plane shutter
