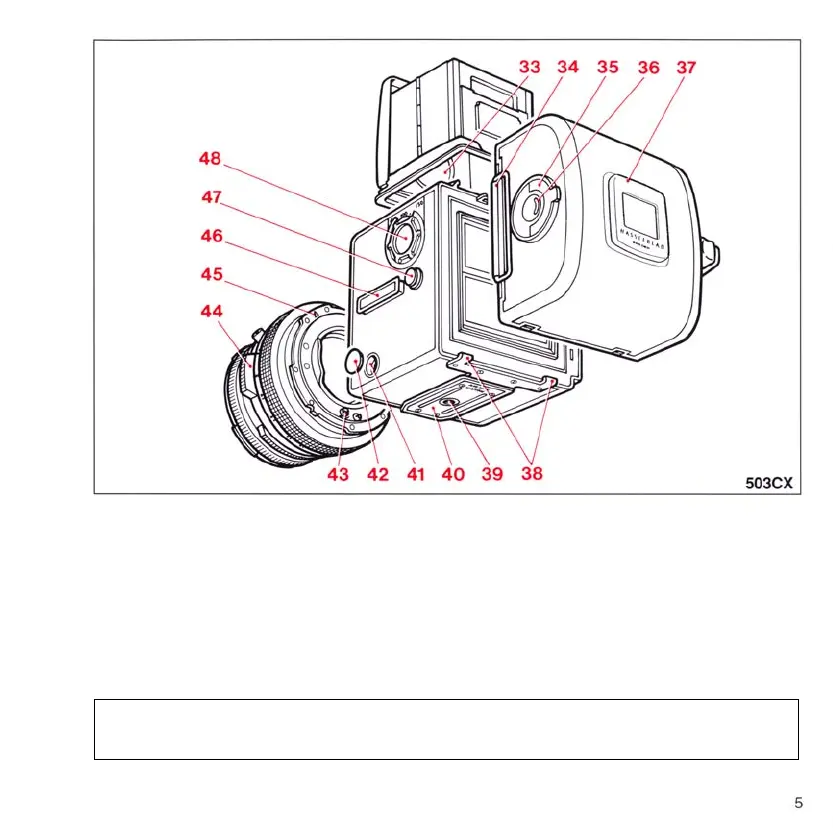

33. Focusinghoodmagnier
34. Magazine slide
35. Film holder key
36. Film load indicator
37. Film tab holder
38. Magazine supports
39. Tripod thread 1/4”
40. Quick coupling plate
41. Dedicatedashconnector**
42. Connector cover**
43. Lens drive shaft
44. Depth-of-eldpreviewknob
45. Lens locating index
46. Accessory rail
47. Strap lug
48. Film speed selector**
* Acute-Matte designed by
MINOLTA
** 503CX only
NOTE:Inthetext,thepositionsofcomponentsaredescribedinrelationtothecameraasyouseeitwhentaking
aphotograph,i.e.thelensisonthefront,theviewnderonthetop,andthewindingcrankisontherighthand
side.

Hasselblad 503CX Specifications

General

Camera Type	Medium format SLR
Image Size	6x6 cm
Focus	Manual
Film Format	120/220
Lens Mount	Hasselblad V-system
Shutter Speed	1/500 sec to 1 sec, Bulb
Viewfinder	Interchangeable waist-level or prism
Shutter Type	Focal-plane shutter
