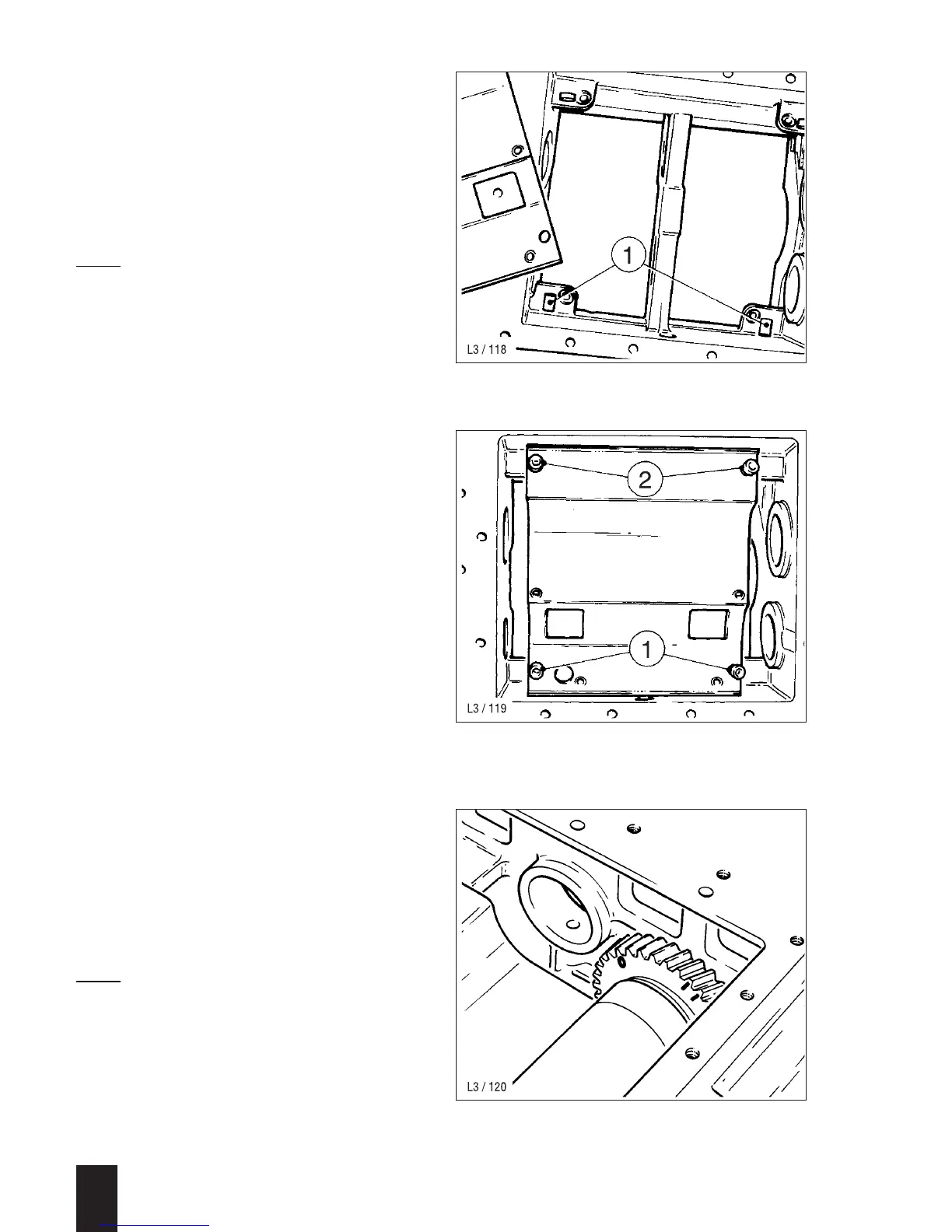

– Insert spacing rollers for the M8 screws
in the correct positions as shown in
Fig. 13.
Note:
Insert the longer spacing rollers (13/1) at
the oil filter flange side.
– Insert splash plate as shown in Fig. 14,
insert the lower machine screws (14/1)
and tighten them. Screw the upper ma-
chine screws (14/2) in only hand-tight.
– Insert the balancing weight with circle
and line markings as shown in Fig. 15,
and push in the bearing journal.
Note:
This balancing weight is driven directly
from the crankshaft.
3
L / M . . 09.96
13
14
15
