– Screw the cylinder head on until it is re-
sting evenly on the cylinder, but without
final tightening.

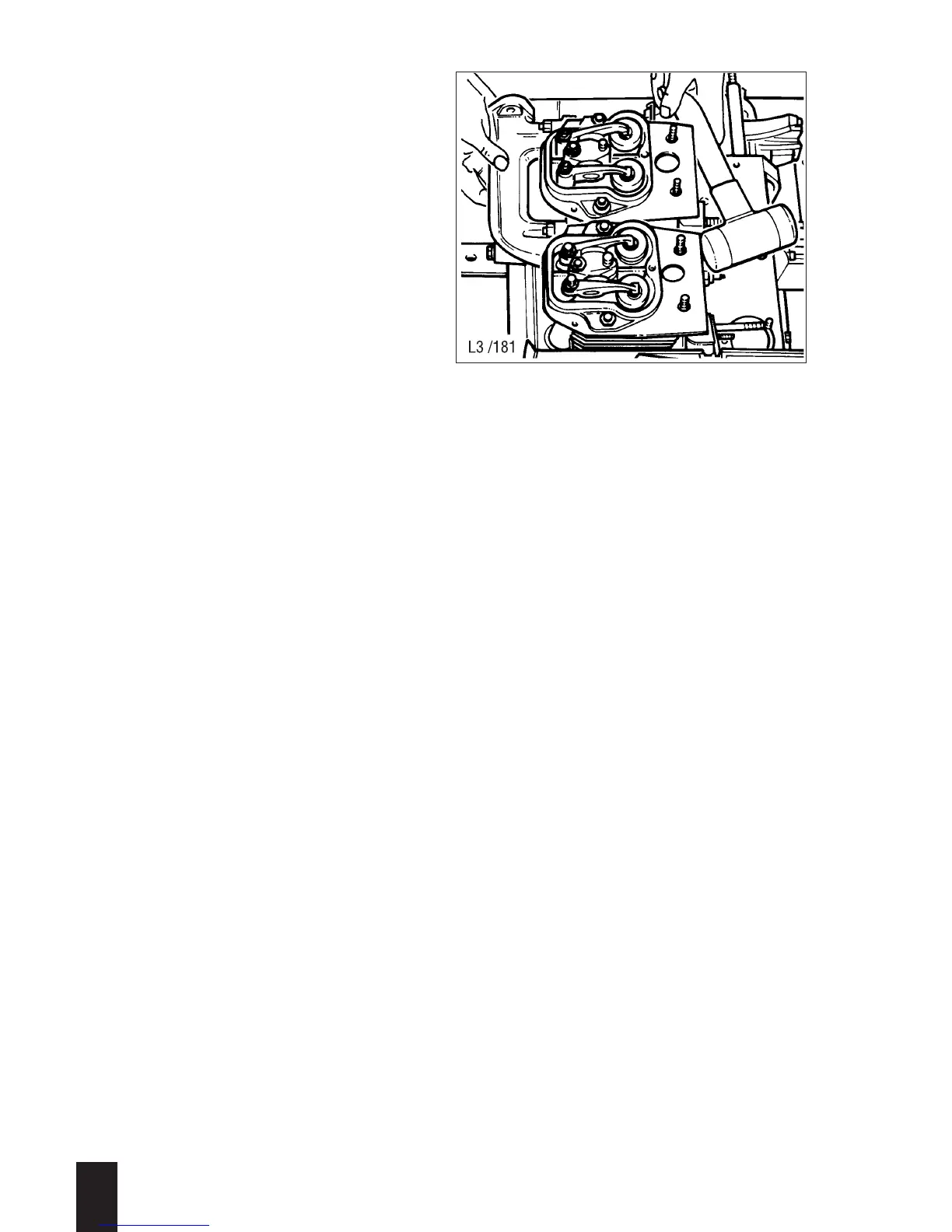

– Align the cylinder head by attaching the
exhaust manifold; see Fig. 80.
– Install the support plate and the injector
centering flanges.
– Tighten the cylinder head uniformly, in a
cross-wise pattern, to the specified tor-
que.
– Take off the exhaust manifold, attach
the gaskets and install it again.
– Adjust valve clearances to the specified
values.
– Further installation work is as described
for removal, but in the reverse order.
3
L / M . . 09.96
80
