Encapsulated engine

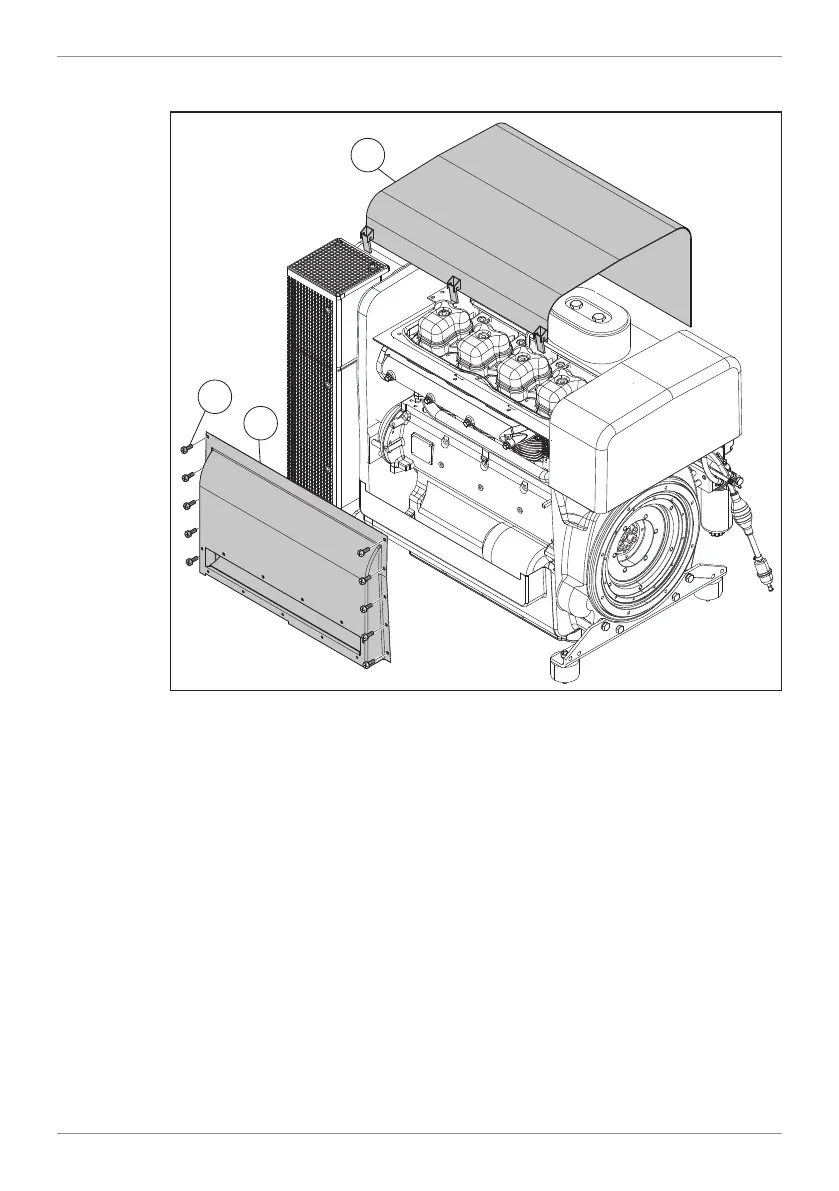

Before dismantling the exhaust system the capsule has to be dismounted:
▪ Remove the top cover (1) by opening the clips.
▪ Remove all screws (2) and remove the side cover (3).
Assembly:
▪ Assemble in reverse sequence.
▪ Before tightening the capsule all screws have to be turned in and the dif-
ferent covers have to be correctly adjusted.
