TECHNICAL INFORMATION

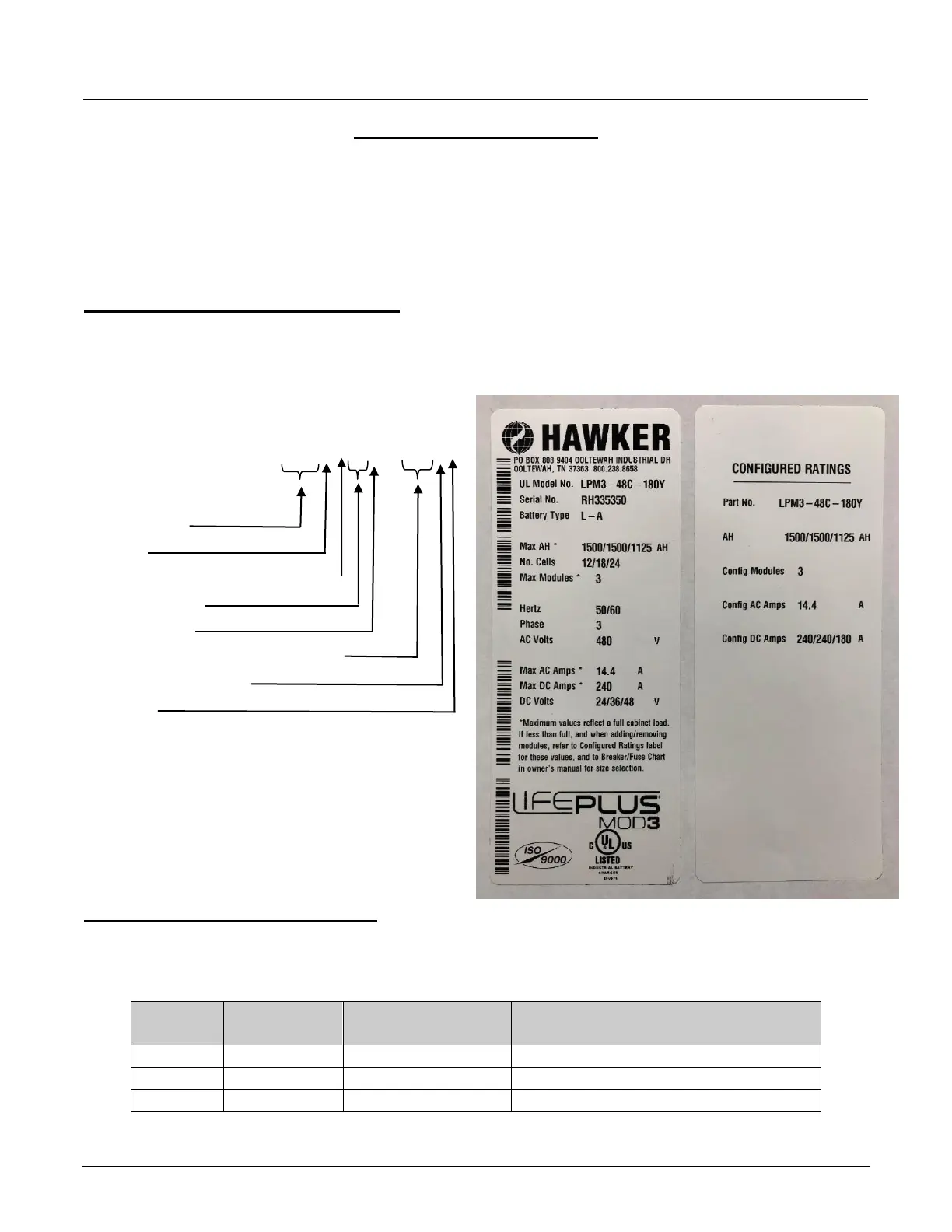

There are two nameplates located on the outside of the charger and should be used to
check this application before installation. The “Main” nameplate includes the UL Model number
and the ratings of the cabinet at its full capacity, while the “Configured Ratings” nameplate
includes the Part number and the ratings of the cabinet as configured. The Configured Ratings
nameplate label must be replaced when adding or removing modules permanently in the field.
Part Number and UL Model Number
The UL Model Number specifies the characteristics of a full cabinet charger, while the Part
Number specifies the characteristics of the cabinet as configured, plus all options. The Part
Number is required in any discussion or correspondence regarding this unit.
LPM3 - 48F – 240YR
Model type
Phase
(-) for Standard or (C) for CEC
Max DC Volts
Cabinet Size
Max DC Current @ Max DC V
Input Voltage Code
Options
Cabinet Size/Gauge Letter Codes
The following table describes the letter codes to be used in charger part numbers to
indicate the number of slots and size of DC cables.
