Hawle E2 - Parts List

10 | P a g e

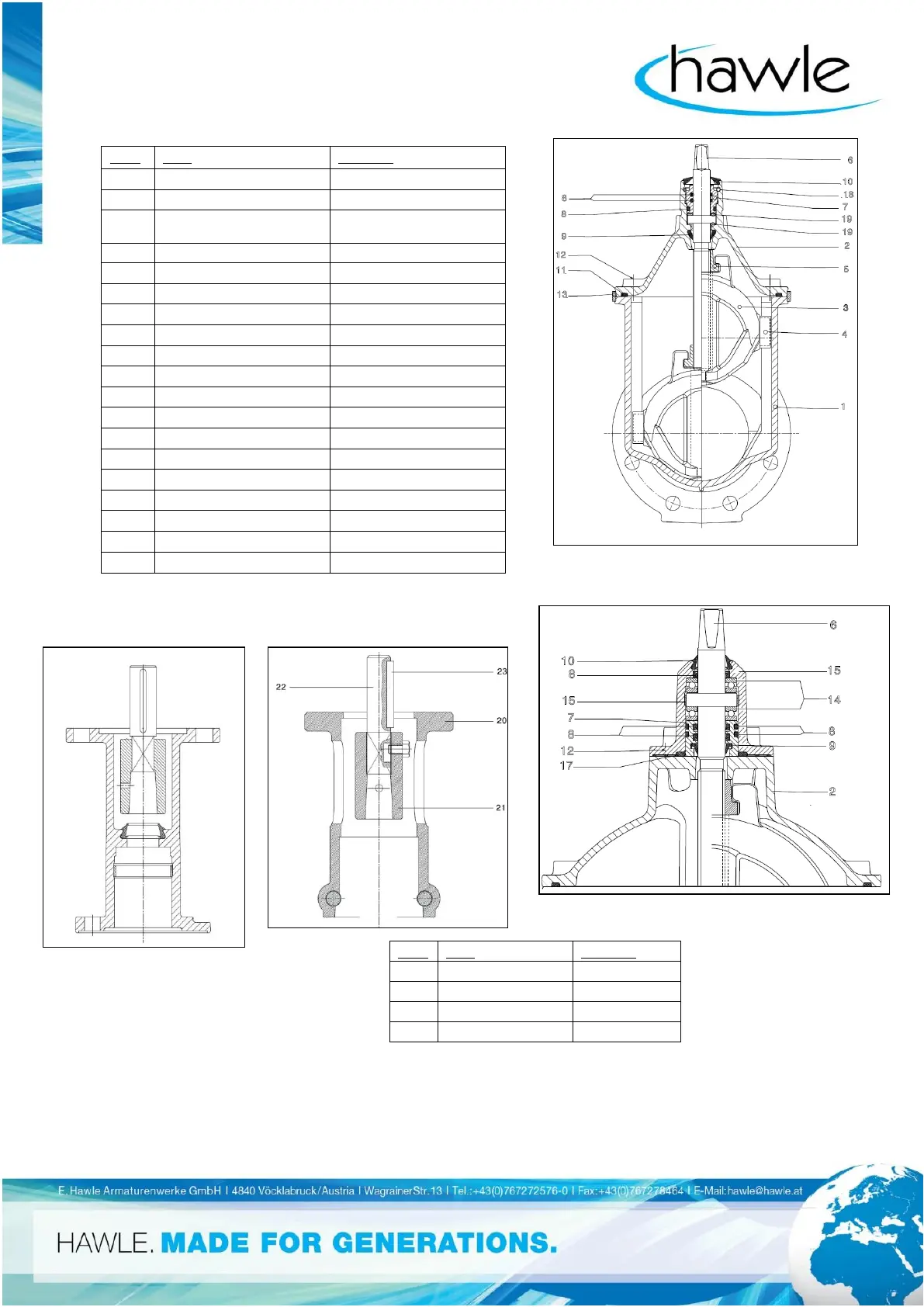

C5 Parts List
Item
Part
Material
1
Body
GJS 400
2
Bonnet
GJS 400
3
Wedge
GJS 400 externally
vulcanized elastomer
4
Wedge guide
POM
5
Wedge nut
Brass
6
Spindle
Steel
7
O-ring bush
Elastomer
8
O-rings, lip seals
Elastomer
9
Back seal
Elastomer
10
Wiper ring
Elastomer
11
Bonnet gasket
Elastomer
12
Allen screws
8.8
13
Edge protection
PE
14
Ball bearing from DN250
Steel
15
Centering ring
POM
16
Centering flange
GJS 400
17
Centering flange gasket
Elastomer
18
Retaining ring
POM
19
Sealing compound
POM
Item
Part
Material
20
Adapter
GJS 400
21
Spindle sleeve
GJS 400
22
Pin
Steel
23
Feather key
Steel
From DN250
DN50-200
DN250-600
