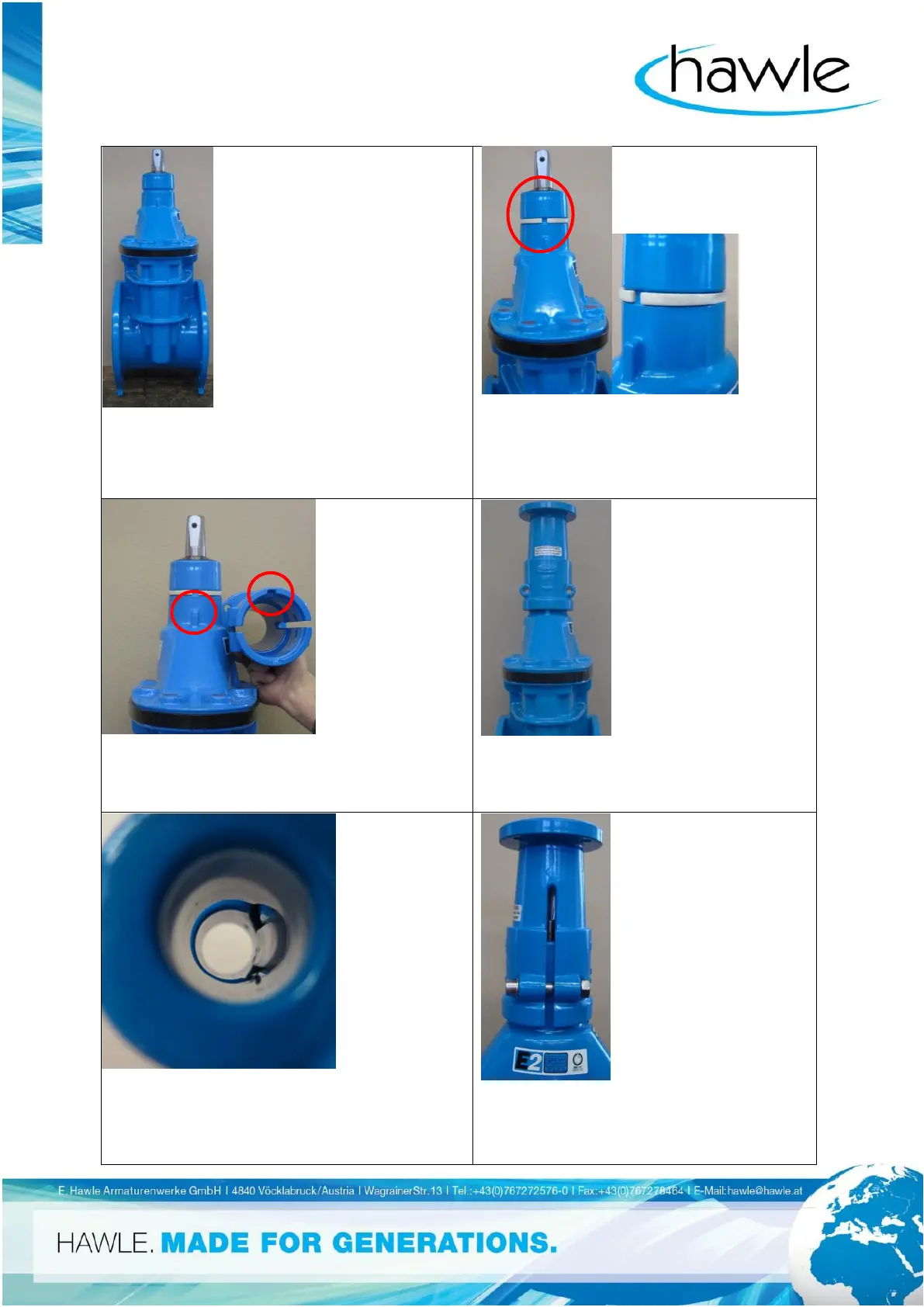

C6 Modification of a standard valve DN50-200 with an adapter for an electric actuator
1. E2 valve for operation by hand.
2. Place the retaining ring into the slot. The
gap in the retaining ring and the locking rib
have to be aligned.
3. Mount the lantern on the upper body. The
locking rib and the recess in the lantern define the
mounting position.
4. Mount the lantern onto the upper body, all
the way to the end stop.
5. The recess in the retaining ring and the hole in
the lantern fixture have to be aligned with each
other.
6. Attach the lantern to the upper body with
the included bolts. Maximum tightening
torque: 80Nm
