Hawle E2 - C8 Conversion of Standard DN250-400 Valve to Lantern for Electric Operation

15 | P a g e
Vöcklabruck, 05.04.2017
Fellner A. / Lerchner S.

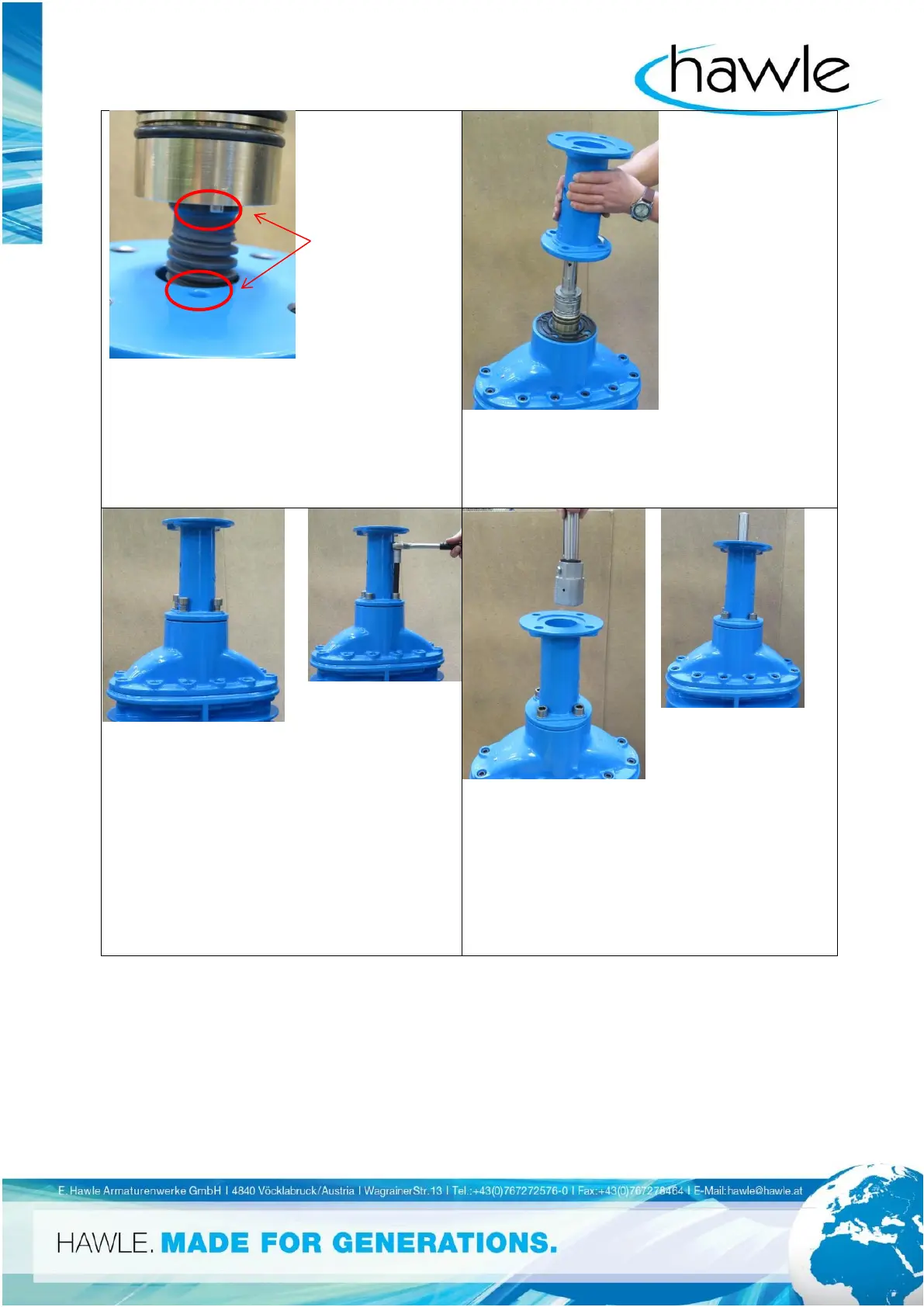

7. Locking pin of the o-ring bracket has to be
placed into the recess on the upper body.
8. Mount the adapter incl. the POM centering ring
and the scraper ring on the upper part
9. Fasten the lantern with the supplied bolts
10. Mount the spindle socket with spigot into the
square cap
