Assembling the Handle
No Parts Required

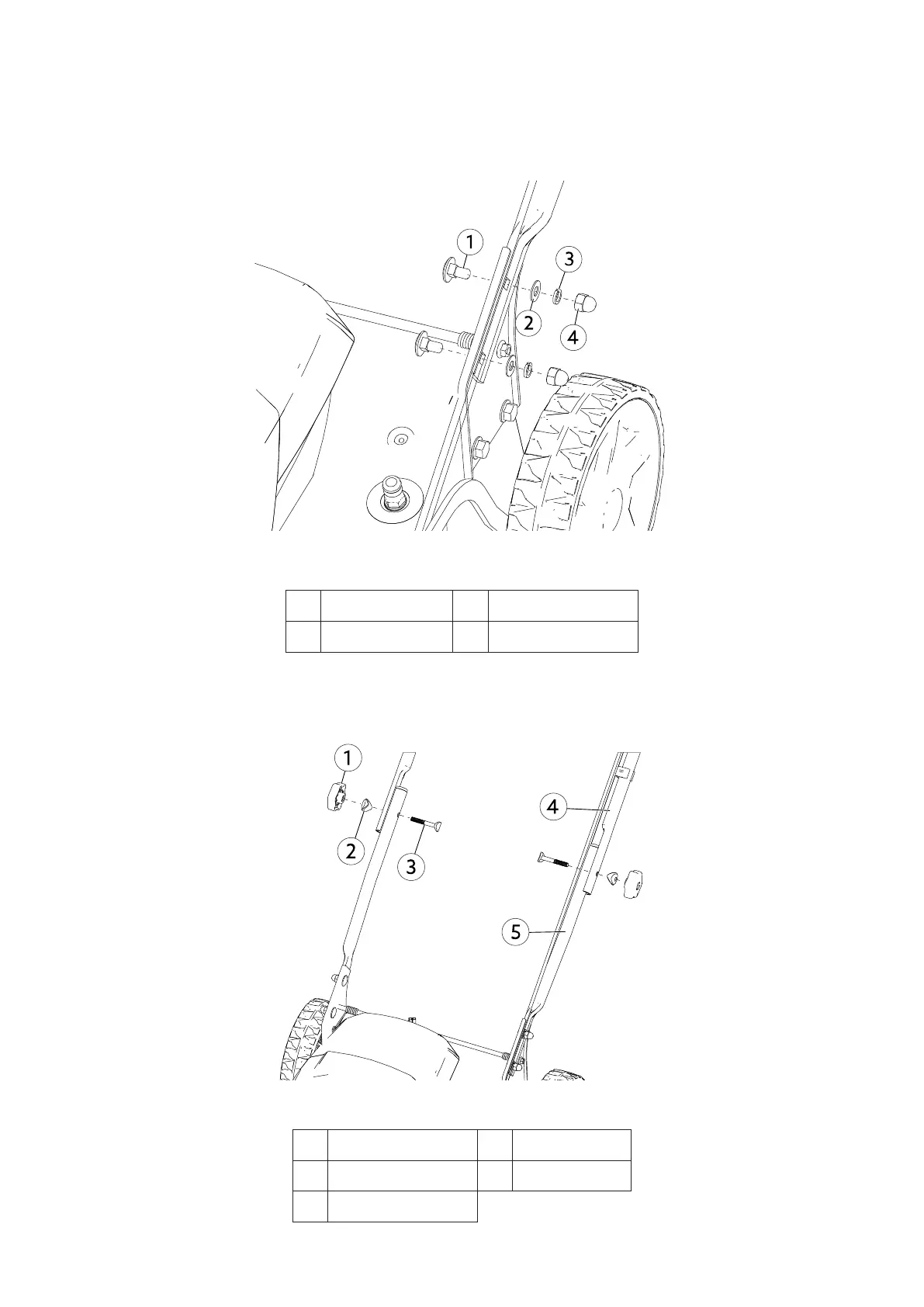

1. Attach the lower handle to the mower housing with 4 bolts, 4 flat washers, 4 split washers, and 4 nuts
Figure 5).
Figure 5
1. Bolt (4) 3. Split washer (4)
2. Flat washer (4) 4. Nut (4)
2. Attach the upper handle to the lower handle using 2 handle bolts, 2 curved washers, and 2 bolts. Tighten
the handle bolts securely by hand. Figure 6.
Figure 6
1. Handle bolt (2) 4. Upper handle
2. Curved washer (2) 5. Lower handle
3. Bolt (2)
