Folding the Handle
WARNING: Folding or unfolding the handle improperly can damage the cables, causing an unsafe
operating condition.
• Do not damage the cables when folding or unfolding the handle.
• If a cable is damaged, contact an Authorised Service Dealer.
1. Remove the electric-start button. Figure 22A.
2. Hold the handle while disengaging the handle knobs to avoid pinching your hands. Figure 22B.
3. Fold the handle forward to the fully forward position. Figure 22C.
4. To unfold the handle, refer to Unfolding the Handle.
Important: Route the cables to the outside of the handle hinge as you fold the handle.
B
C
A

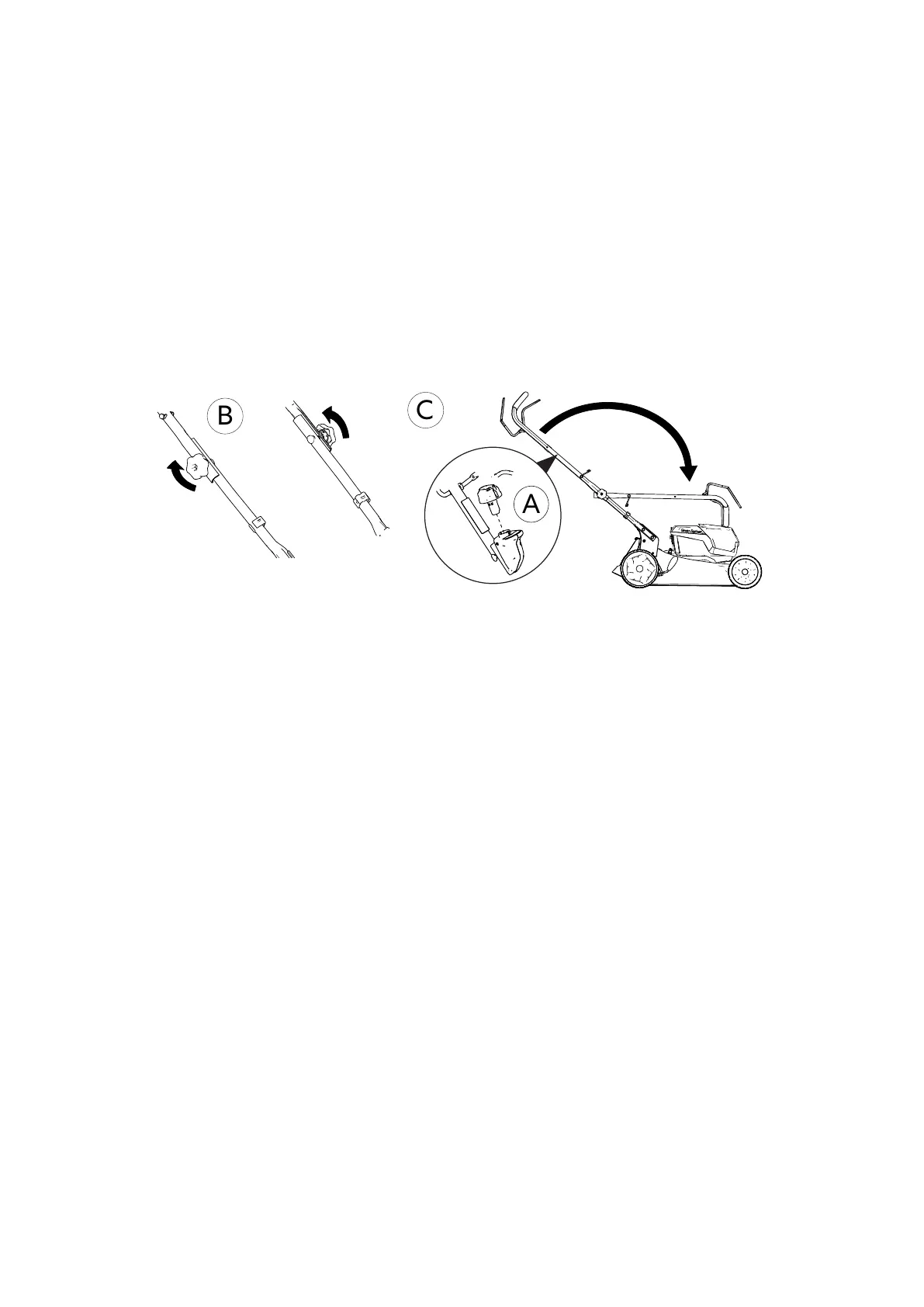

Figure 22
