OPERATING THE MOWER
WARNING: PREVENT ACCIDENTS - Never operate the mower without first checking that the
steering column adjuster mechanism is in good working order and that, once adjusted and locked,
the steering wheel remains securely in position.
WARNING: PREVENT ACCIDENTS - Adjustment of the steering wheel and steering column
should only be carried out when the mower is at a standstill with the parking/emergency brake
engaged.

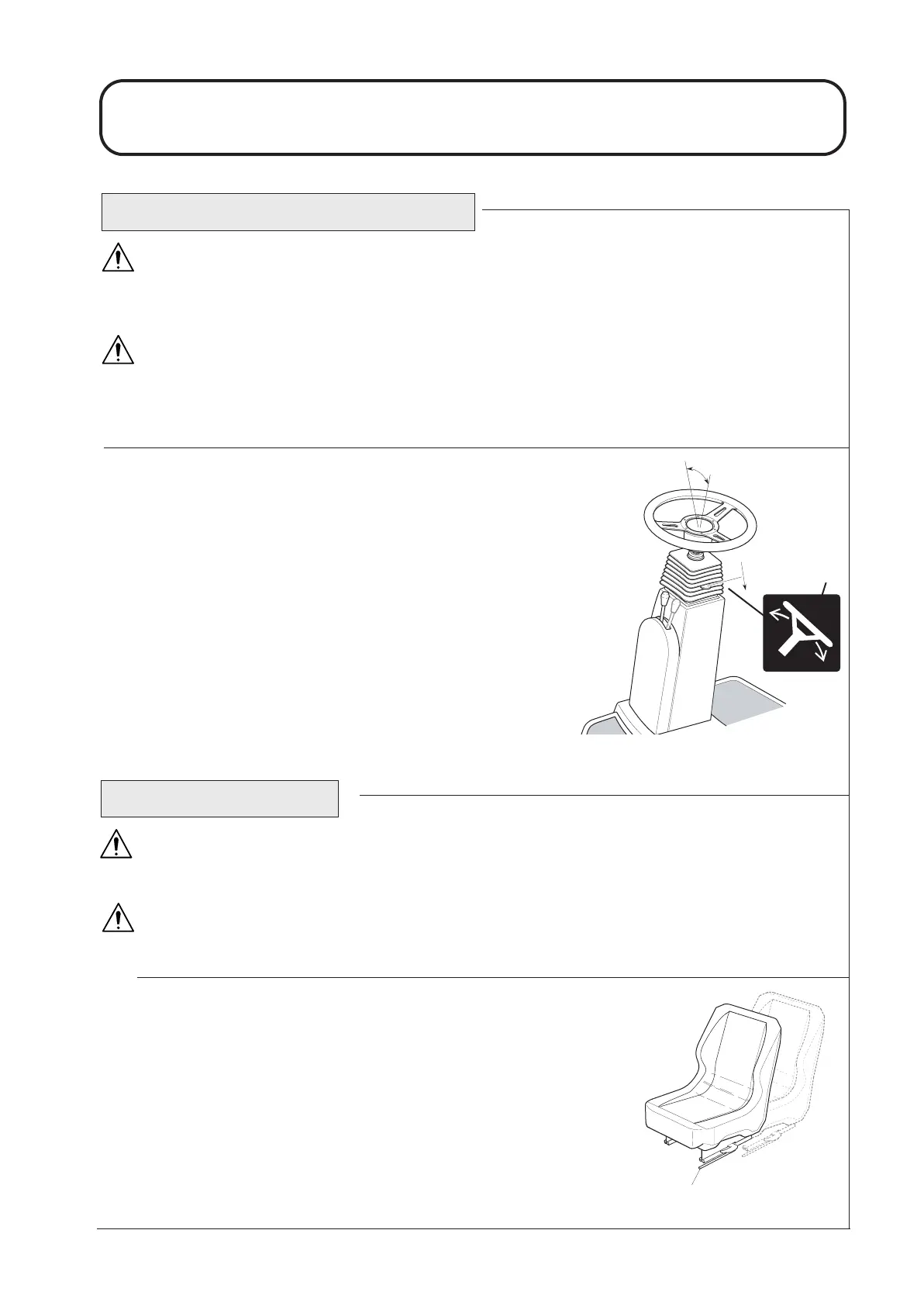

Adjusting the angle of inclination of the steering wheel: Move lever ‘A’
downwards to adjust the angle of steering wheel. Release the lever to lock
the steering wheel in position.
ADJUSTABLE STEERING COLUMN
1.30
1.30
WARNING: PREVENT ACCIDENTS - Never operate the mower without first checking that the
operator seat mechanisms are in good working order and that, once adjusted and locked, the seat
remains securely in position.
WARNING: PREVENT ACCIDENTS - Adjustment of the seat mechanisms should only be carried
out when the mower is at a standstill with the parking/emergency brake engaged.
Fore/Aft Adjustment:
Move lever ‘B’ upwards to adjust the Fore/Aft posi-
tion of the seat. Release the lever to lock the seat in position.
OPERATOR SEAT
1P955A08A
B
995909 Rev.0.
1) Decal - Steering Wheel Adjustment - Part No: 995909
1
A
