6060 Booster Pump ____________________ _____________________________ Page 5 of 16
WWW.HAYWARDPOOL.COM USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

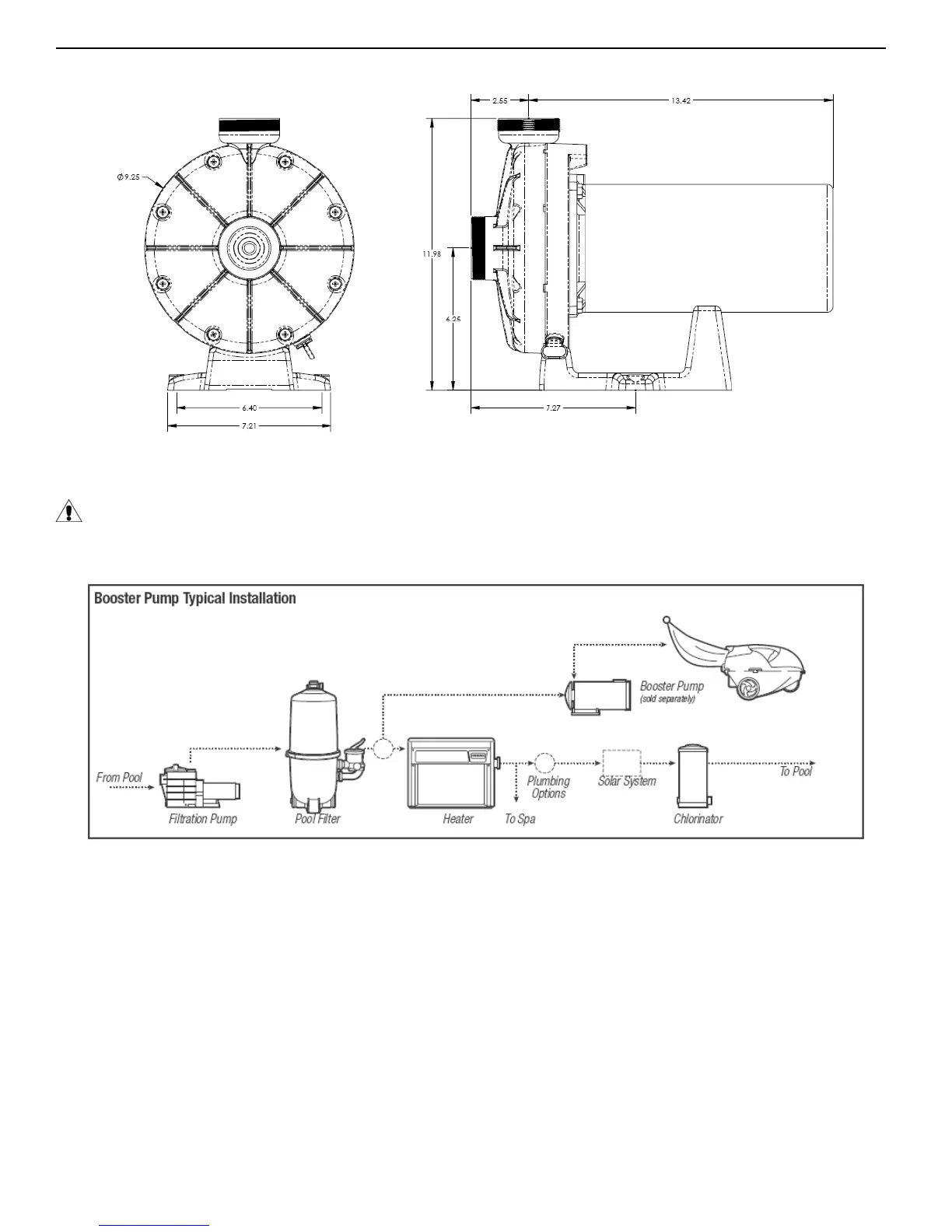

Product Specifications
Installation Instructions
WARNING – This product should be installed and serviced only by a qualified professional.
Pump Location
Locate booster pump as shown in above diagram and run suction lines as direct as possible to reduce friction loss. Suction
lines should have continuous slope upward from lowest point in line. Joints must be tight (but not over-tightened). Suction
line diameter must equal or be larger than the discharge line diameter.
Though the pump is designed for outdoor use, it is strongly advised to place pump in the shade to shield it from continuous
direct heat. Select a well-drained area that will not flood when it rains. Do NOT install pump in a damp or non-ventilated
location. Keep motor clean. Pump motors require free circulation of air for cooling.
Pump Mounting
Install pump on a level concrete slab or other rigid base to meet all local and national codes. Secure pump to base with
screws or bolts to further reduce vibration and stress on pipe or hose joints. The base must be level, rigid, and vibration free.
Pump mount must:
Allow pump inlet height to be as close to water level as possible.
Allow use of short, direct suction pipe (to reduce friction losses) and gate valves in suction/discharge piping.
Be protected from excess moisture and flooding, and allow adequate access for servicing pump and piping.
Pressure Cleaner
To Next Page
