Electrical Wiring
The Hub requires both high and low voltage connections. Always:
- Ensure that Power is disconnected prior to performing any wiring
- Follow all local and NEC (CEC if applicable) codes
- Use copper conductors only
A dedicated channel on the right side of the Hub has been provided for all low voltage wiring. All low
voltage wires should run through this channel to exit the Hub. A weather resistant gasket is provided
(see page 21) to seal this exit.

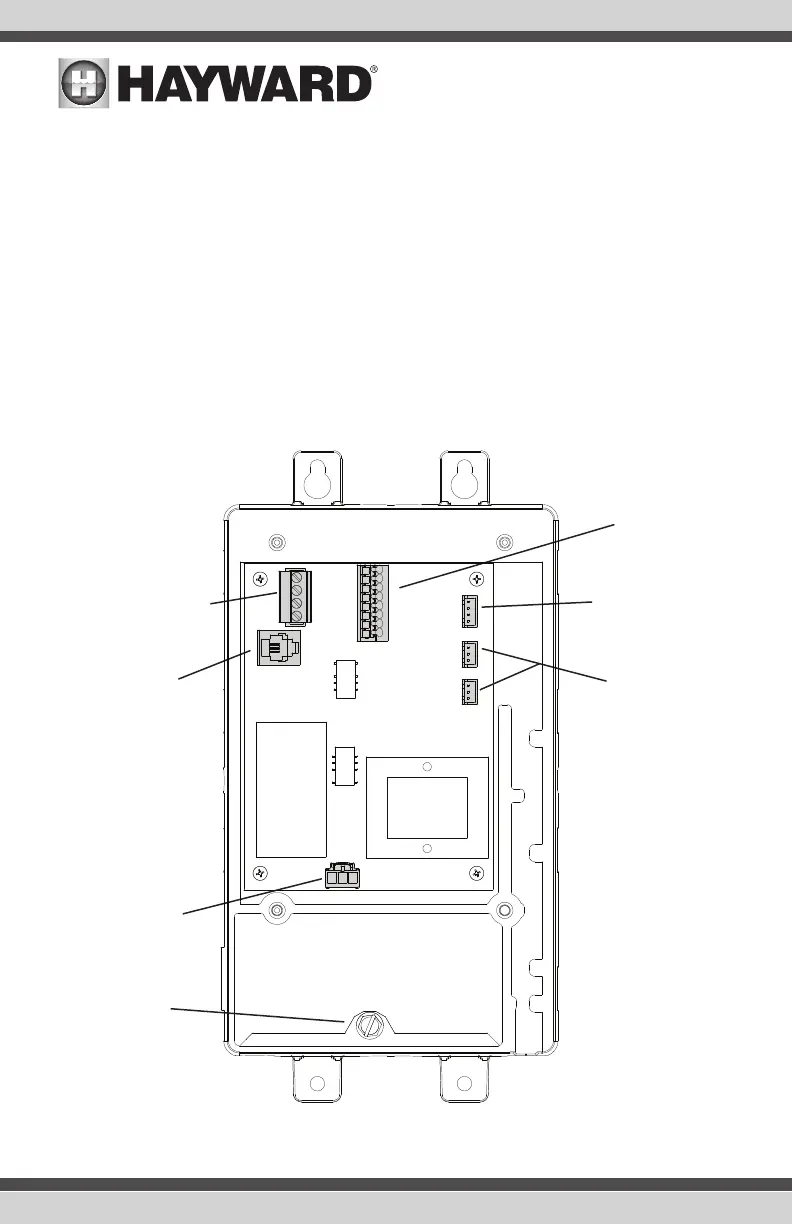

Input Power
Flow Switch
Communication for
Smart Relays, Sense
& Dispense, Aqua Rite,
Variable Speed Pumps
Temperature Sensors,
External Input
& Heater
Control Pad
Valve Actuators
(Hub must be powered by
230 VAC)
Wiring Channel
Low Voltage
Ground Screw
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
10
