Remote LED Relay On LED Indication
Off Off No power or firmware failure
Red On for 1
sec, Off for 6
sec
Off or Green
There is no communication with the Wiring Hub - the relay
can be manually controlled using the On/Off button
Green On Off or Green
There is communication with the Wiring Hub - this indicates
normal operation and On/Off button is disabled
Green 3 fast
blinks
Off or Green
User attempted to use the On/Off button manually while the
Smart Relay is being automatically controlled by Wiring Hub
(not allowed)
Blinking Blinking Firmware upgrade in progress
Universal ColorLogic Lights (UCL)
Transformers powering multiple UCLs must be wired to the same Smart Relay if synchronization or
OmniDirect mode is desired. OmniDirect mode is only supported by Universal ColorLogic lights built
after June 2018.
Low Voltage Wiring
NOTE: There is a low voltage channel on the right side of the Hub's enclosure labeled on page 10
and shown on page 21. All low voltage wiring that exits the Hub must run through this channel. The
included foam gasket (page 21) should be used to seal the channels's exit after wiring is complete.
Do not run low voltage wiring through a knockout or with any high voltage wiring.
Hayward Variable Speed Pump (VSP) Wiring
A separate VSP pump manual has been included with the VS Omni. For low voltage communication
wiring information, refer to the pump manual.

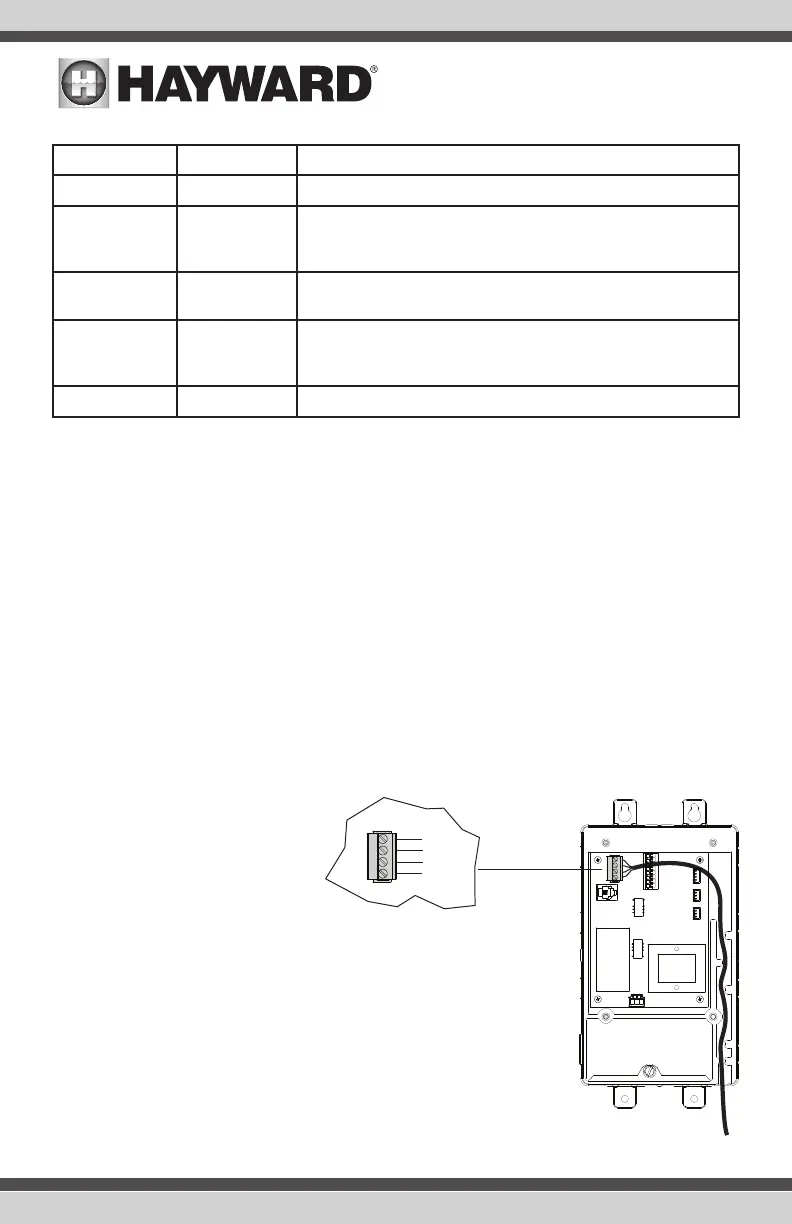

Smart Relay Connection
Smart Relays
Like VSPs, Smart Relays rely on com-
munication from the Hub. Their 4
conductor cable is wired to the same
connector as a VSP. Wire the cable as
shown. Up to three Smart Relays can
be controlled by the VS Omni. In ad-
dition to communication wiring, the
Smart Relay will be wired to high volt-
age pool equipment as shown on page
13.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
14
