Smart Relay
The Smart Relay is packaged with a single gang electrical box but can also be used with any existing
comparable standard electrical box with a minimum volume of 16.2 in
3
. If using 115 VAC, make
sure that there is a Neutral line inside the box before installation. If not, you must run a separate
Neutral wire to power the Smart Relay. This is not a concern if using 230 VAC. Note that conduit and
connections to the included plastic box must be non-metallic.
Find a location within 15 ft of the Hub with convenient access to the pool equipment that you intend
to control with the Smart Relay. Three threaded 1/2" NPT knockouts are provided for high voltage
power coming into the relay and for power out to the pool equipment. A Wiring Whip is included to
aid installation.
2.85”
The Smart Relay has a manual On/Off but-
ton that can be used if communication is
lost with the Hub. Although this button is
not functional during normal operation,
mount the Smart Relay in an accessible
location to use this feature in case of com-
munication loss.

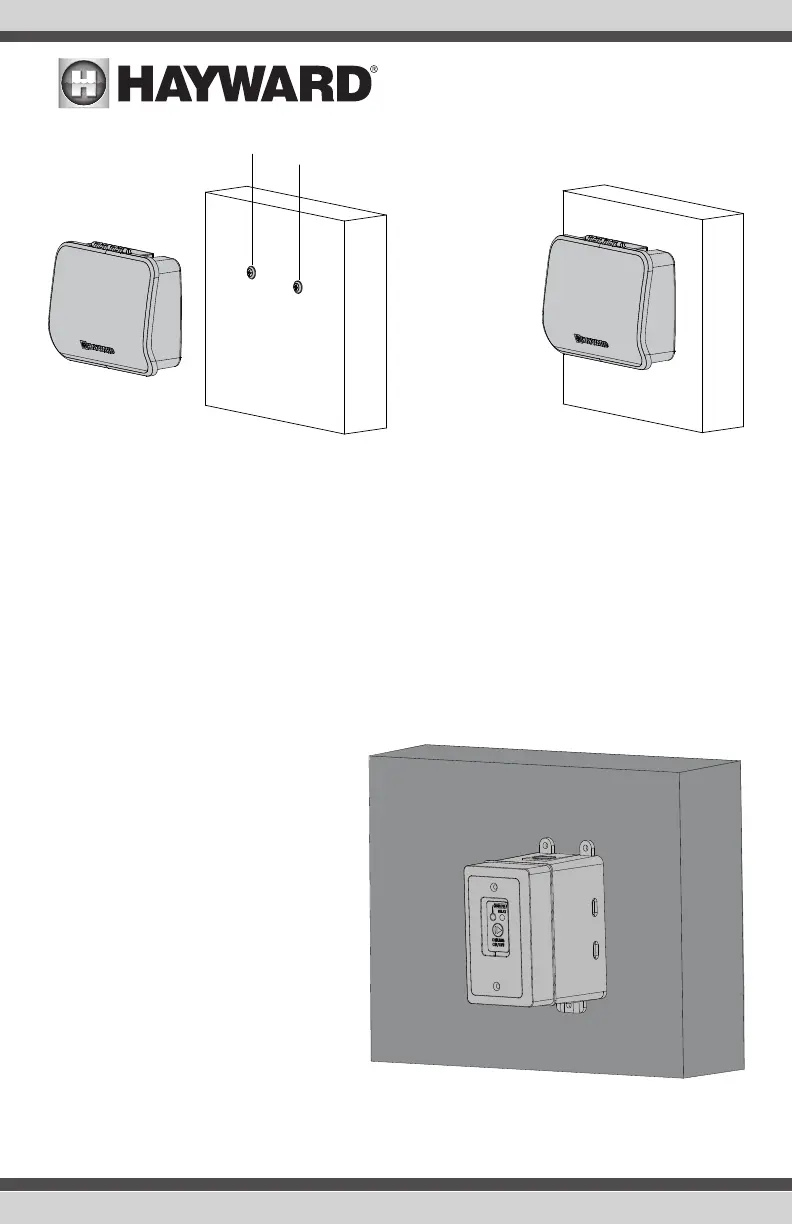

Mount the Smart Relay to a wall or other
flat surface using the mounting holes
which are designed to accommodate #8
screws.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
8
