Equipment
VS Omni Hub
All incoming/outgoing wiring will be connected to the Hub. The VS Omni Hub can be powered by
either 230 VAC (required if using actuators) or 115 VAC. Input power should be constant, not from
a timer. If a timer must be used, set the timer to power the Hub continuously. For convenience, a 6ft
Wiring Whip is included with the VS Omni. This whip is intended to connect the Hub's input power
to the variable speed pump if using 230 VAC. This connection should be made inside of the Hub and
will ensure that both the Hub and pump are powered continuously.
The remaining connections, including the Control Pad, are all low voltage. Depending on your instal-
lation, these connections could be to a heater, Smart Relays, temperature sensors, actuator and a
flow switch.
Control Pad
The Control Pad is weather resistant and comes with a 15 ft cord. Its resistive touch screen with
flip down cover is designed to function year round directly in the elements. Because it plugs into the
Hub, it should be mounted close by, but in a location that is convenient for the user to periodically
view and change pool/spa settings.
The Control Pad features a USB connector for firmware updates and an Ethernet connector for an
optional direct connection to your router (if wifi won't be used).
Smart Relay
Smart Relays have 15 ft cable that wire to the Hub. They're used to control high voltage 115 or 230

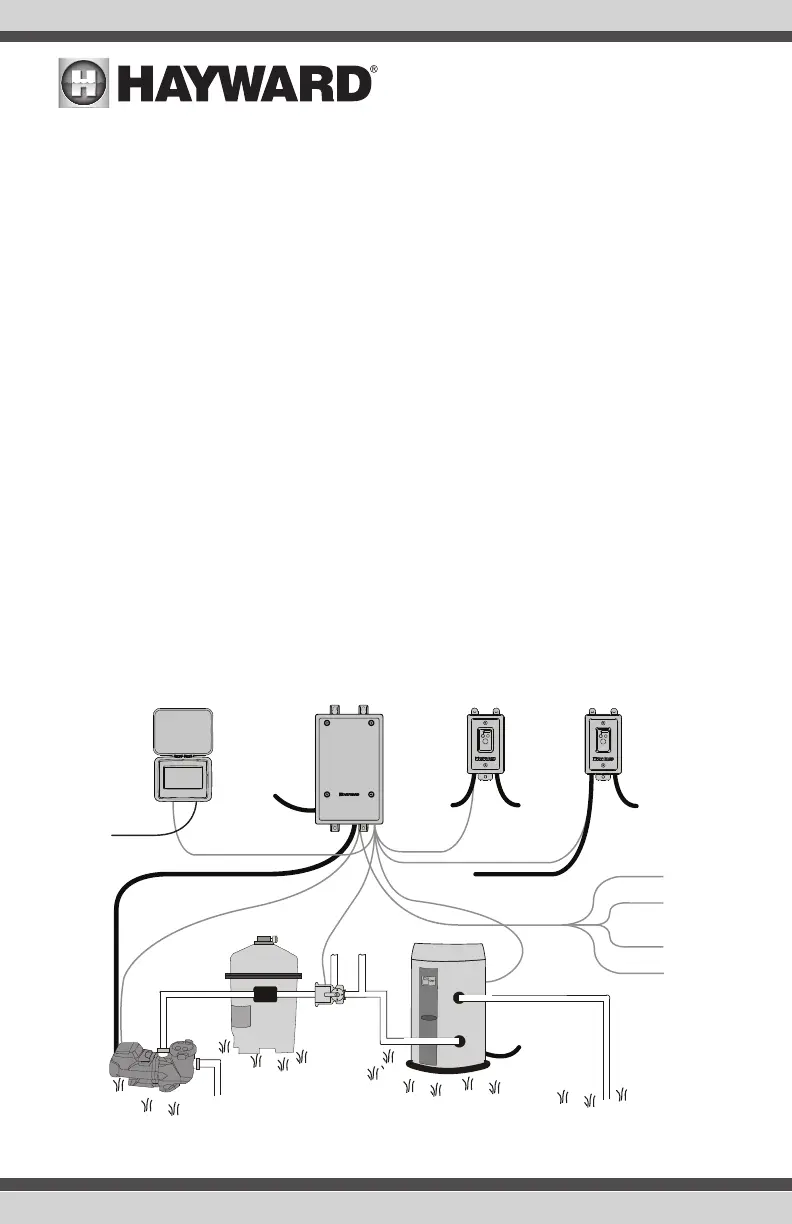

Input Power or
Existing Timeclock
Wiring Hub
(Optional)
Smart Relay 2
To Feature,
Accessory,
Lights, etc.
Variable
Speed Pump
Filter
Valve
Actuator
Heater
TO
POOL
FROM
POOL
Power
to VSP
if same
voltage
as Hub
Input Power to
Smart Relay 1
Comm. to Smart
Relay 1 (15’)
Heater
Remote
Control
Comm. to
Valve Actuator
Comm.
to VSP
To Solar
REMOTE
RELAY
OFFLINE:
ON/OFF
Smart Relay 1
Input
Power
Comm. to Smart
Relay 2 (15’)
Control Pad
To Feature,
Accessory,
Lights, etc.
Wireless
Connection
OR
Ethernet to
Router
Comm. to
Controller (15’)
Sensor 1
(Water Temp.)
Sensor 2
(Air Temp.)
Sensor 3 (Solar OR
External Input)
(Optional)
Flow Switch
REMOTE
RELAY
OFFLINE:
ON/OFF
Wiring Whip
Heat pumps require
input power directly
from electrical panel
5
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
