Hayward Perflex EC50C90 Series Owner's Manual

Perflex™ Extended Cycle Filtration System _____________________________________
Replacement Parts

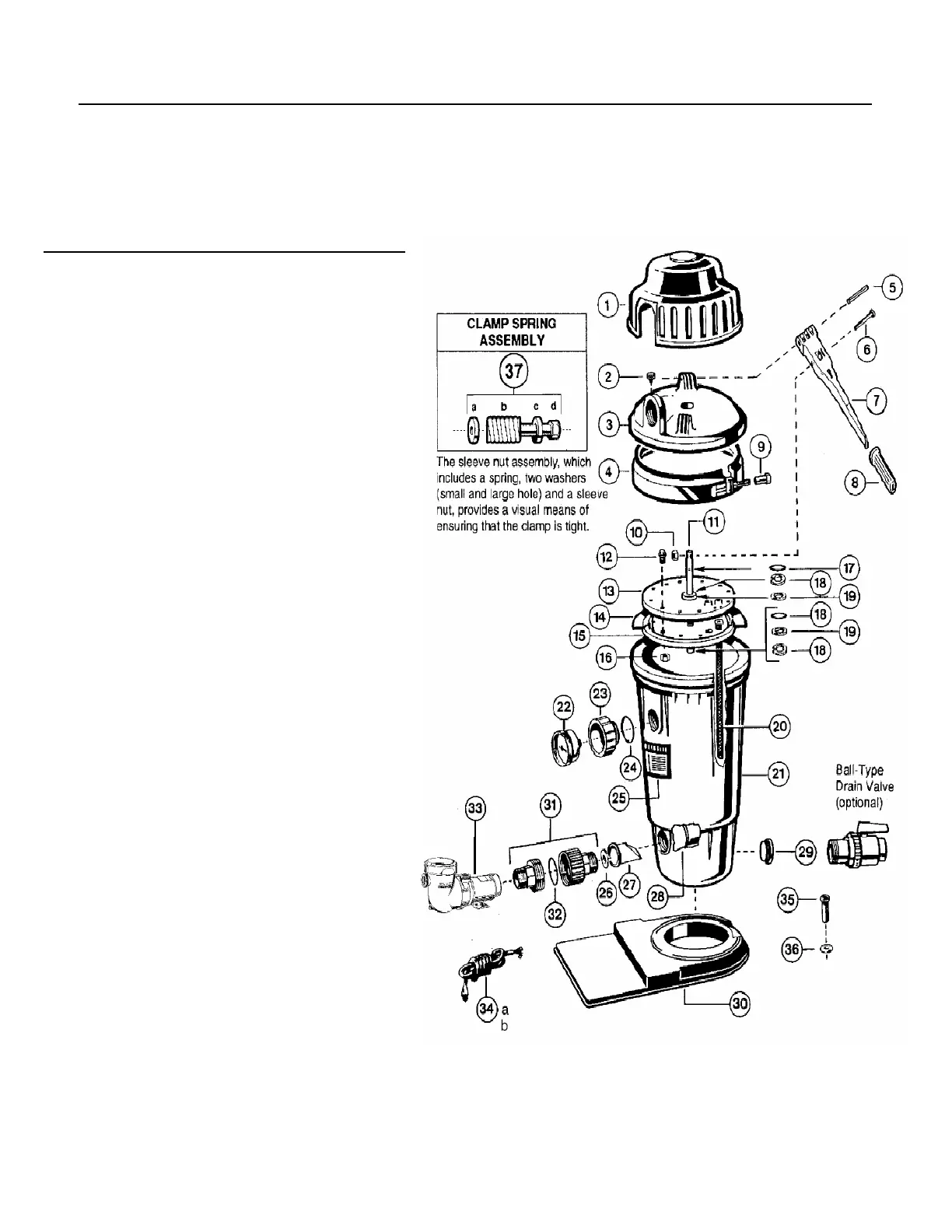

Parts Listing Parts Diagram
Ref.
No. Part No. Description No. Req’d
1 ECX5000D Bump Mechanism Cover 1
2 ECX1322A Vent Valve with O-Ring 1
3 ECX5000BP Filter Head with Vent Valve 1
4 ECX5000C Clamp Assembly with Spring 1
5 ECX100Z9 Pivot Pin (long) 1
6 ECX4236 Shoulder Screw 1
7 ECX1040 Bump Handle
1
8 ECX1037B Bump Handle Grip-Noryl
®
1
9 DEX360JN Nickel Plated Sleeve Nut, 5/16" 1
10 ECX4249 Locknut 1
11 ECX5000F Bump Shaft 1
12 SPX1500N1 Tube Sheet Screw 12
13 ECX1004 Tube Sheet, Top 1
14 ECX5000G Diaphragm Gasket 1
15 ECX1004 Tube Sheet, Bottom 1
16 ECX1500Y1 Tube Sheet, Nut 12
17 ECX96112-46 O-Ring 2
18 ECX1014 Retainer 2
19 ECX1011 Thrust Washer 2
20 ECX1032 Flex-Tube
™
Assembly 72
21 ECX5000AP Filter Body with Flow Diffuser 1
22 ECX27091 Pressure Gauge (back mount) 1
23 ECX1286-6 Gauge/Inspection Port Adapter 1
24 ECX1287 O-Ring for Gauge Adapter 1
25 ECX5029 Decal - Operation 1
26 ECX1055 Flow Controller 1
27 ECX4077B1 Check Valve 1
28 ECX1256 Flow Diffuser with Check Valve 1
29 SP1022C Drain Plug with Gasket 1
30 ECX1161 Platform Base 1
31 SP1480 1 ½" Male Union 1
32 SPX1425Z6 O-Ring 1
33 --- Power-Flo Matrix Pump 1
34a SPX1250WA 6 ft. Cord Set 1
34b SPX1550WA1 3 ft. Twist Lock Cord Set 1
35 ECX1108 Pump Mounting Screw 4
36 ECX1109 Washer 4
37a DEX2400J4 Washer with Small Hole 2
37b DEX2400JS Spring 2
37c DEX2400J3 Washer with Large Hole 2
37d DEX360JN Nickel Plated Sleeve Nut 2
