3 Installation
• Connect the MP55DP module to a 24V supply voltage.
• Connect the Profibus cable to the MP55DP module. Ensure that a
terminating resistance is connected to the first and last Profibus unit (the
housing of the Profibus connector usually contains a sliding switch for this
purpose).
Example:
PLC
First device in
the bus line
Last device in
the bus line
sliding switch of Profibus
connector to ”Resistance ON”
sliding switch of Profibus connector to
”Resistance ON” .
Profibus
connector
Profibus
connector

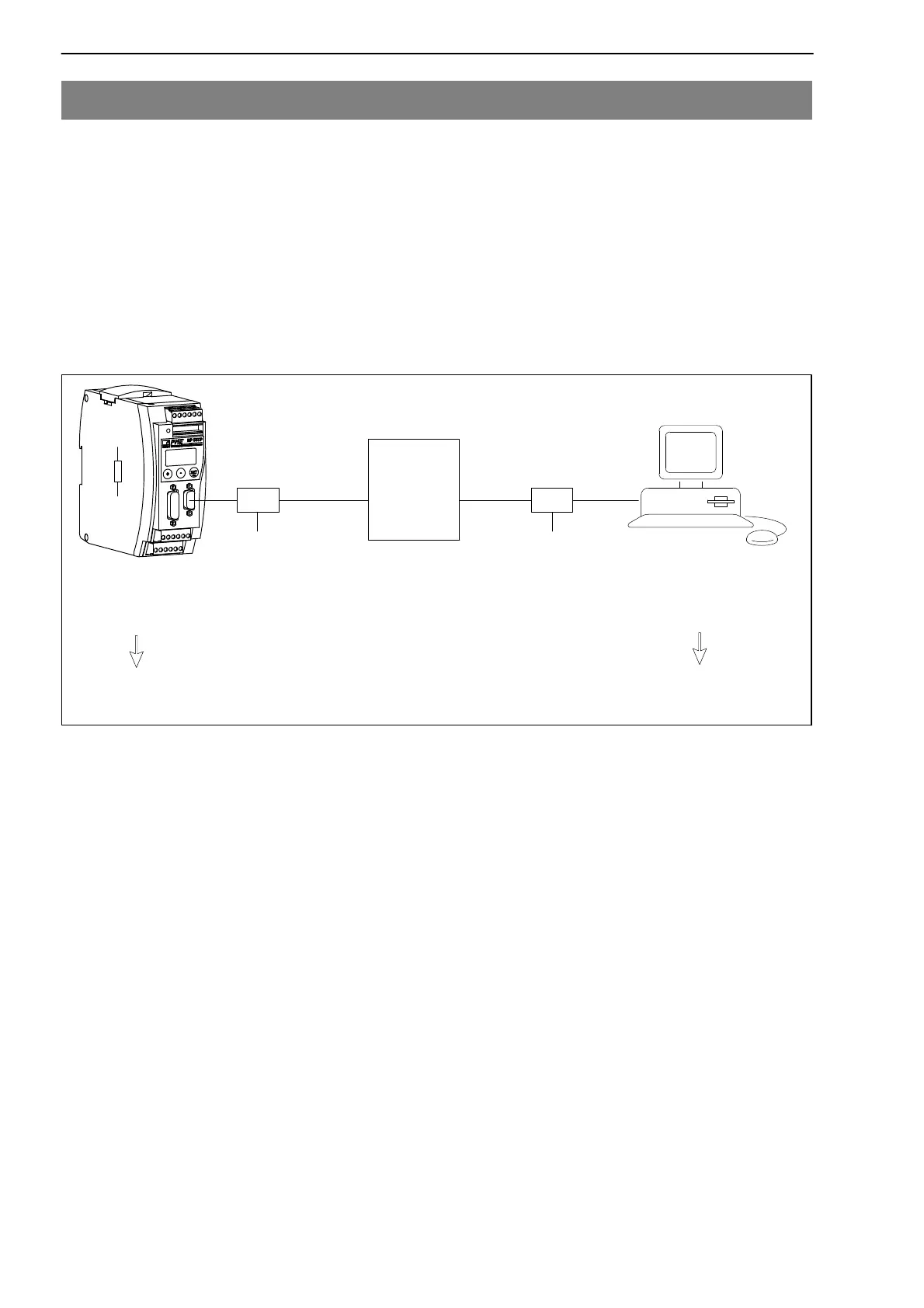

Fig. 3.2: Profibus operation
