HBM MP55DP - Connections; Pin Assignment

27
PME-MP55DP
HBMA0582-3.1 de/en/fr
4 Connections
Warning
Please note the safety instructions before commissioning the device.
4.1 Pin assignment
For the pin assignment of the MP55DP module please refer to the User
Manual “PME industrial measurement electronics with MP55 module field bus
link”. On the front panel of the MP55DP is an additional 9-pin D-sub port for
the Profibus connection.
Profibus
connection jack
1
5
6
9
GND
RS485-RTS
RS485-B
RS485-A
Vcc (5V)

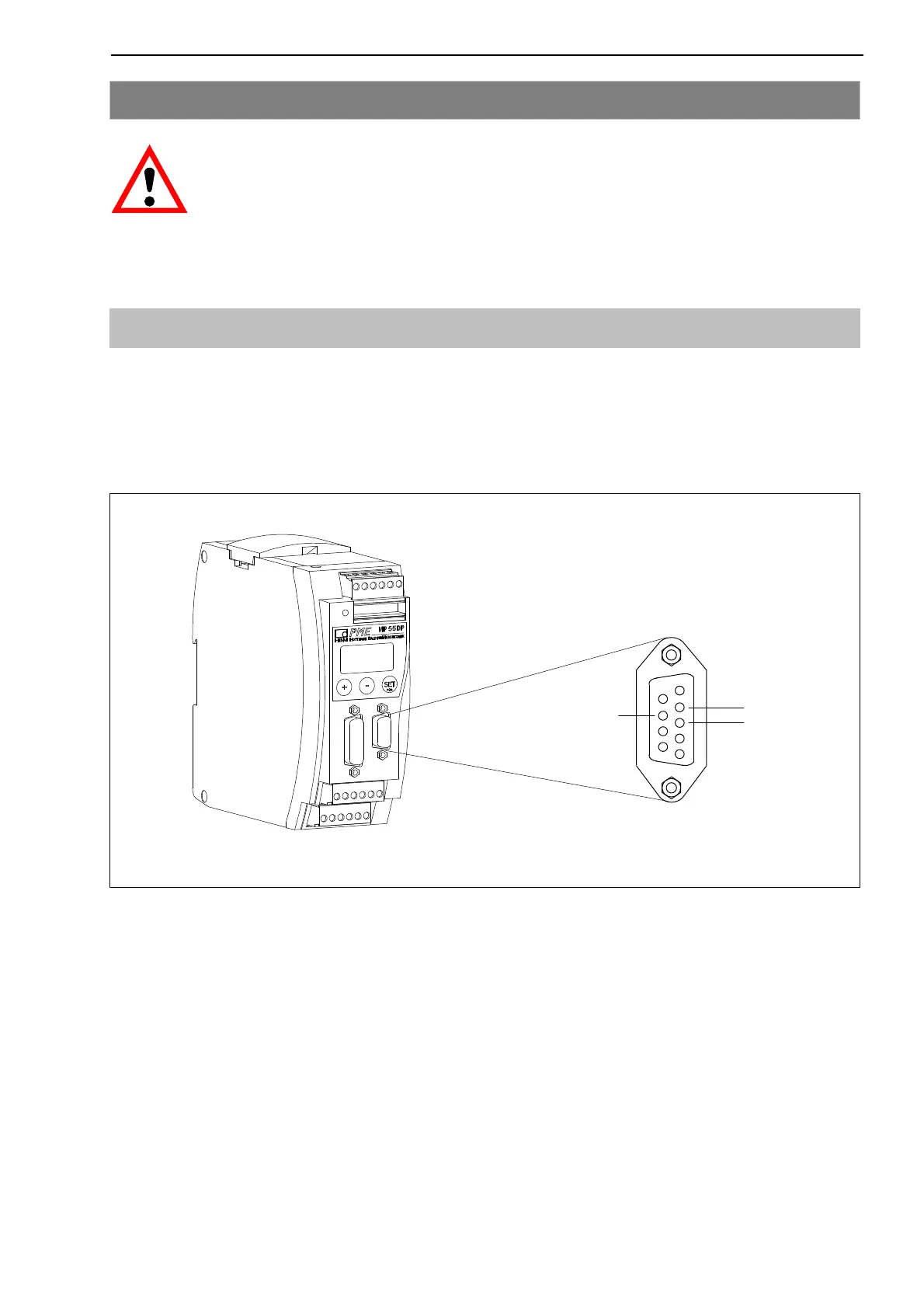

Fig. 4.2: Profibus connection in accordance with standard
