4.3 Connecting housings
The following pictures show the connection of two IP20 housings. The procedure is identical
for IP65 housings.
Press

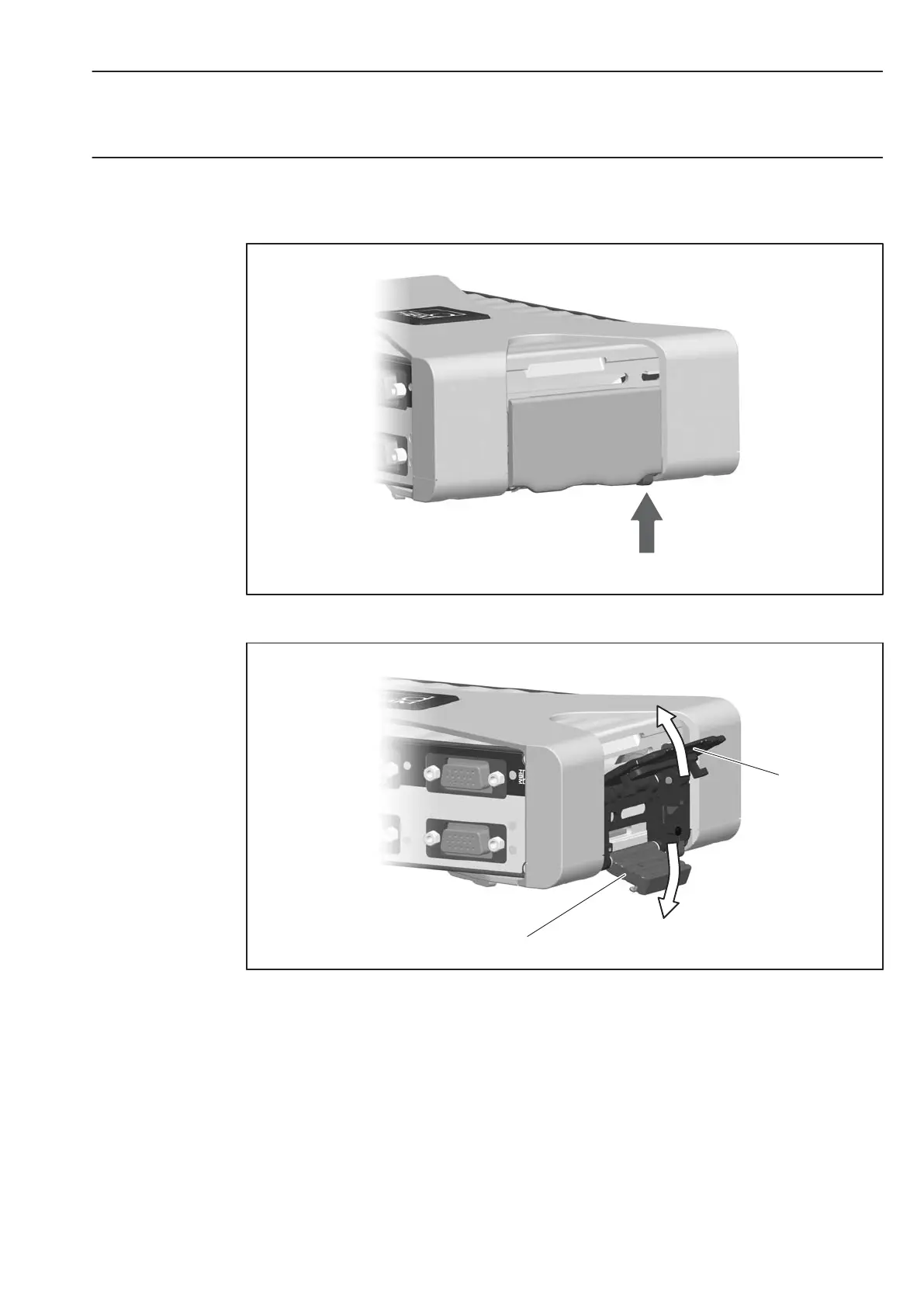

Fig. 4.11: Unclip the housing clip
Catch
Lever
Fig. 4.12: Unclip the lever and catch
