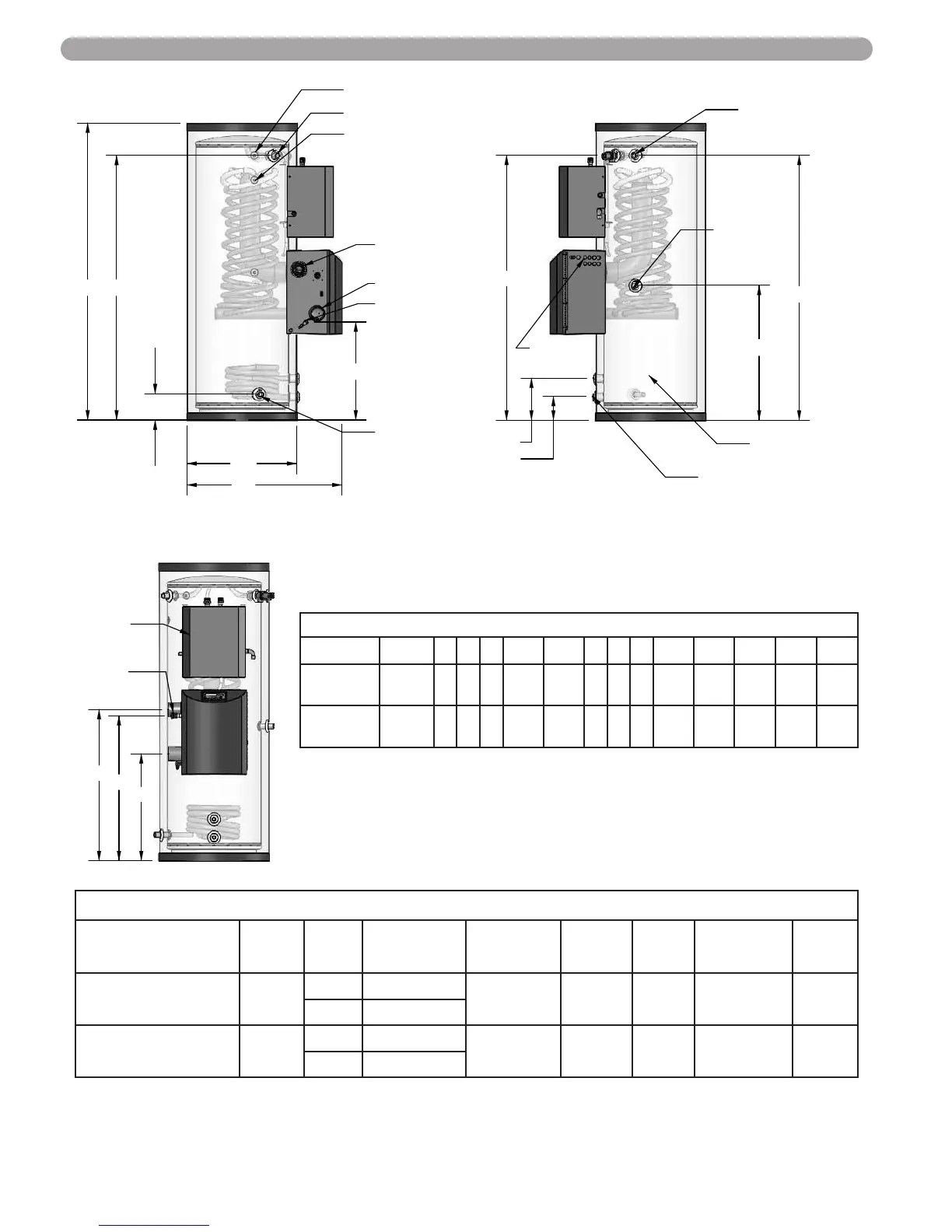

PHOENIX EVOLUTION WATER HEATER DIMENSIONS
MODEL #* GALLONS A B C D F G H J K L M N O
PHE130-80S /
PHE199-80S
80 23" 34" 72" 61" 38-1/2" 26" 37" 24" 31-1/4" 64-1/2” 64-1/2" 10-1/4” 10-1/4”
PHE130-119S /
PHE199-119S
119 27" 37" 74" 65-3/4" 38-1/2" 26" 37" 24" 33" 64-1/2” 66-1/2" 5-3/4” 5-3/4”
PHOENIX EVOLUTION SOLAR WATER HEATER SPECIFICATIONS
MODEL #* GALLONS BTU'S
AIR INTAKE/
EXHAUST VENT
SIZE
WATER INLET/
OUTLET SIZE
AUXILIARY
CONN.
GAS LINE
CONN.
SYSTEM RELIEF
PIPE SIZE
SHIPPING
WEIGHT
PHE130-80S / PHE199-80S 80
130,000 2"
1" NPT 1" 3/4" 3/4" 275
199,000 3"
PHE130-119S / PHE199-119S 119
130,000 2"
1" NPT 1" 3/4" 3/4" 445
199,000 3"
*No Suffix denotes natural gas and suffix “LP” denotes propane gas
*Suffix “NHX” denotes no solar heat exchanger (119 gallon only)
