66

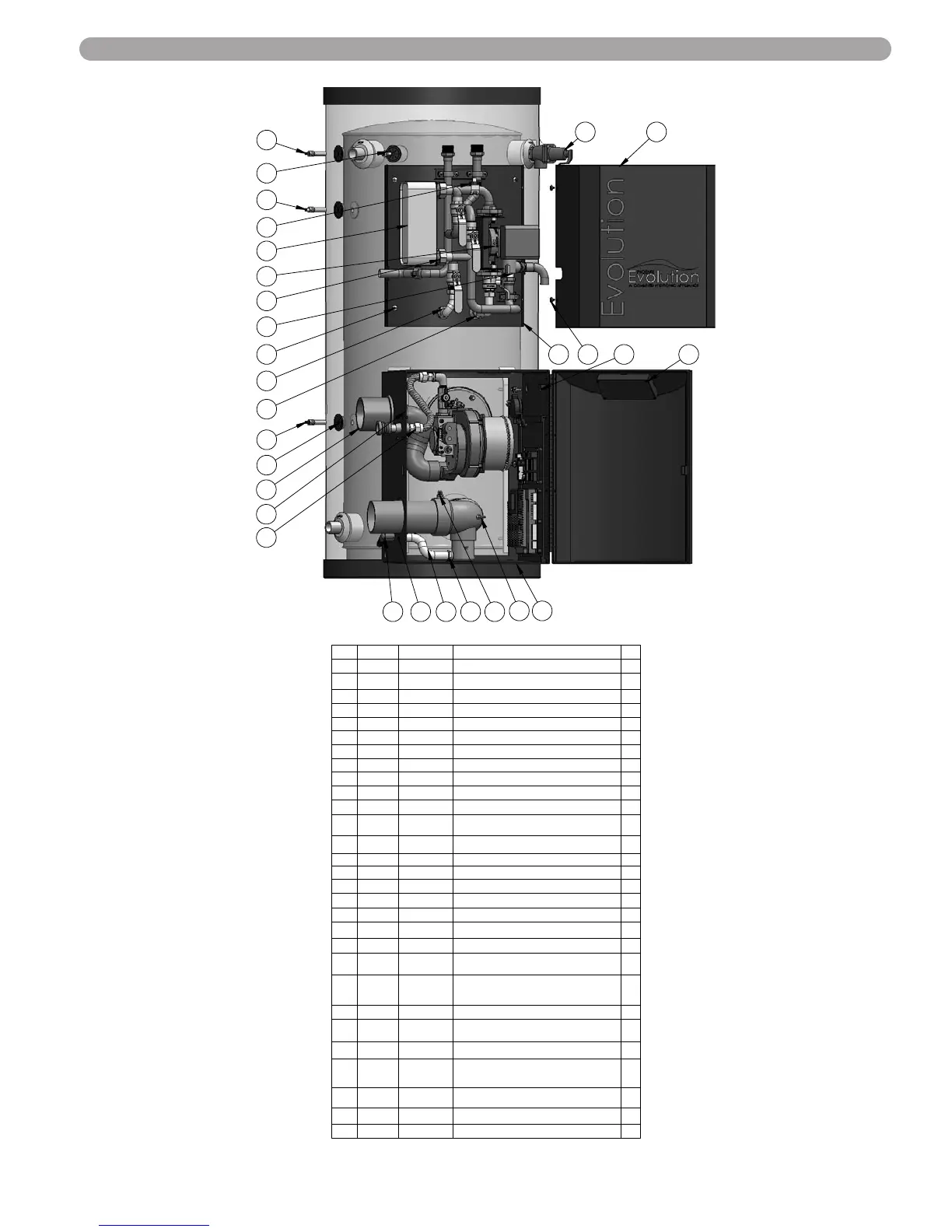

TROUBLESHOOTING
ITEM # PART #
REPLACEMENT
PART #
QTY.
1 TP1400 TP1400 TEMPERATURE AND PRESSURE RELIEF VALVE 1
2
7100-006 7100P-006 HIGH LIMIT SAFETY 1
3
7100-852-1 7100P-852-1 LOW WATER CUT-OFF SENSOR 1
4
7100-004 7100P-004 UPPER TEMPERATURE SENSOR 1
5
7100-005 7100P-005 LOWER TEMPERATURE SENSOR 1
6
7100-172 7100P-172 CLIP-ON PIPE TEMPERATURE SENSOR 2
7
7100-132 7100P-132 BRAZED PLATE HEAT EXCHANGER 1
8
7100-131 7100P-131 HYDRONIC HEATING MODULE PUMP 1
9
N/A 7100P-267 BSPP FACE SEALING WASHER 4
10
7250-080 7250P-080 HYDRONIC HEATING PRESSURE RELIEF 1
11
7100-137 7100P-137 1/4"-20 X 1" BARREL NUT 4
12
7100-171 7100P-171
EXCHANGER SIDE FLEX LINE (W/ NUTS AND
WASHERS)
1
13
7100-165 7100P-165 PUMP SIDE FLEX LINE (W/ NUTS AND WASHERS) 1
14
7100-140 7100P-140 GAS FLEX LINE 1
15
2500-0019 N/A CONDENSATE PLASTIC ELBOW 1
16
9500-0027 N/A CONDENSATE PLASTIC STRAIGHT 1
17
7100-121 7100P-121 CONDENSATE HOSE 1
18
7250-215 7250P-215 CONDENSATE HOSE CLAMP 2
19
T1500 VS210
THERMODISC FLUE ECO 210
Σ
1
20
7250-154 7250P-154 HOSE BARB 1/4 X 10-32 1
21
S7100-246
S7100-247
7100P-264
7100P-265
55-80 GAL PLASTIC CABINET
199 GAL PLASTIC CABINET
1
22
S7100-250 7100P-266
CONTROL BOARD DISPLAY (INCLUDES
MEMBRANE, DISPLAY BOARD, PLASTIC SHELL,
AND RIBBON CABLE)
2
23
7500-087 7500P-087 POWER SWITCH 1
24
7100-134
7100-136
7100P-134
7100P-136
55-80 GAL HYDRONIC MODULE COVER
119 GAL HYDRONIC MODULE COVER
1
25
2500-0057 N/A PLASTIC SNAP BUSHING 4
26
7100-156
7100-135
7100P-156
7100P-135
55-80 GAL HYDRONIC MODULE BACKPLATE
119 GAL HYDRONIC MODULE BACKPLATE
1
27
7100-103
7100-114
7100P-103
7100P-114
3" AIR INLET COUPLING-199k BTU
2" AIR INLET COUPLING-130k BTU
1
28
7100-104 7100P-104 AIR INLET COUPLING NUT 1
29
7100-149 7100P-149 HYDRONIC MODULE COVER THUMB SCREW 4
DESCRIPTION
LP-314-K
11/19/09
1
3
2
4
5
15 16 18
20
19
24
7
8
23
14
11
10
17
22
6
21
12
13
9
25
26
27
28
29
