IMPORTANT CONSIDERATIONS
AVOID AIMING THE SENSOR AT:
• Below are examples of objects that might produce heat and may cause the motion sensor to trigger:
• Pools of Water • Air Conditioners • Dryer Vents
• Animals • Heating Vents • Automobile Trac
If you suspect that a heat source of this type is triggering the motion sensor, reduce the sensitivity.
• Areas where pets or trac may trigger the motion sensor.
• Nearby large, light-colored objects reecting light may trigger the shut-o feature. Do not point other lights at the
motion sensor.
SEASONAL CHANGES:
e motion sensor works by sensing temperature changes across its eld of view. e closer the surrounding tempera-
ture is to a person’s body heat, the less sensitive the sensor will appear. e greater the temperature dierence, the more
sensitive the sensor will appear. e sensitivity (SENS) switch might need to be readjusted as the outside temperature
changes for the dierent seasons. is is a normal part of the light sensor’s operation.
CREEP ZONE
Creep Zone increases the motion sensing detection zone by increasing the sensor coverage area. is feature adds ad-
ditional protection under the light xture and against the wall of the home or building for “no where to hide” protection.
MANUAL MODE
Manual mode overrides the motion sensor and “ON-TIME” control so the
light will operate full bright. is feature only works at night and only for
one night at a time. e motion sensor will reset to motion sensing mode at
6 hours or sunrise, whichever comes rst. Manual mode can be toggled on
and o using a wall switch.
• To turn manual mode on, switch the light o at the wall switch for 1 to 2
seconds and then back on.
• To turn manual mode o, switch the light o at the wall switch for 1 to 2
seconds and then back on.
SPECIFICATIONS
Range ...................................................Up to 70 ft. (21 m) [varies with surrounding temperature].
Sensing Angle.......................................Up to 240°
Power Requirements .............................120 VAC, 60 Hz
Operating Modes .................................TEST, MOTION ACTIVATED, and MANUAL MODE
ON-Timer ............................................1, 5, 20 minutes
Test Timer ............................................8 Seconds
Manual Mode Timer ............................Maximum 6 Hours
Sensitivity (SENS) ...............................“LO”, “M”, “HI”

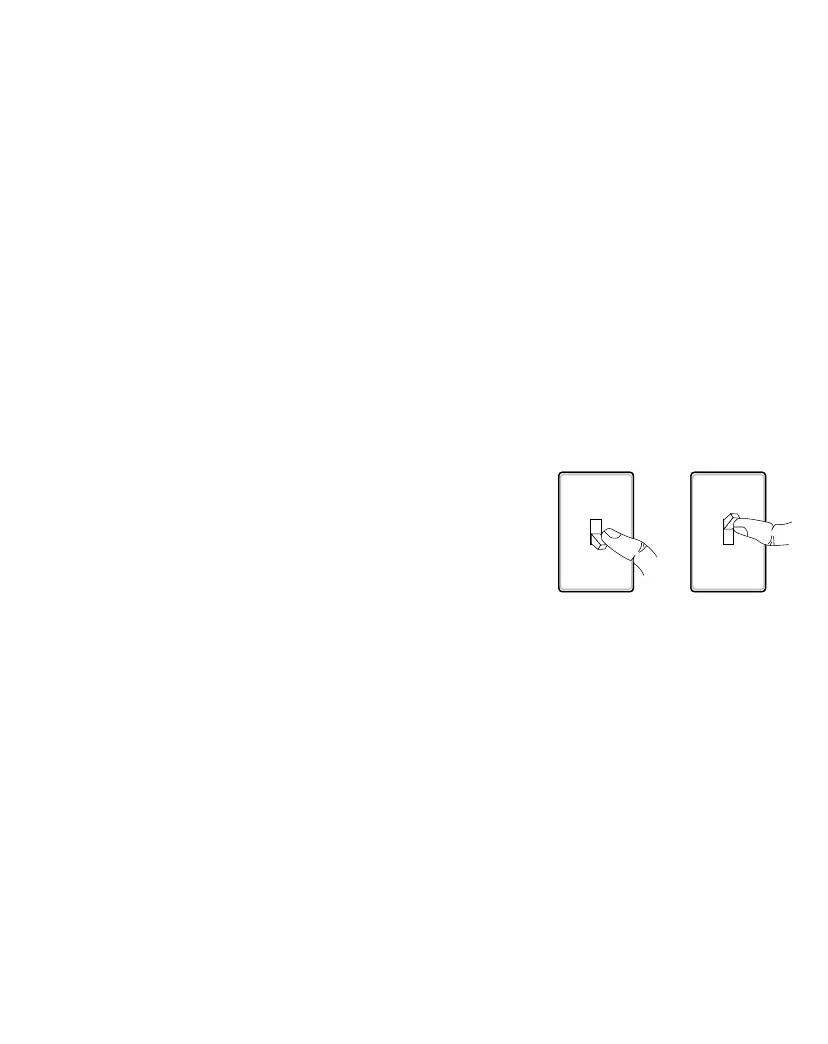

Turn the switch
OFF for 1 to 2
seconds
Turn the
switch
back ON
To Next Page
