2
200471-02
GND

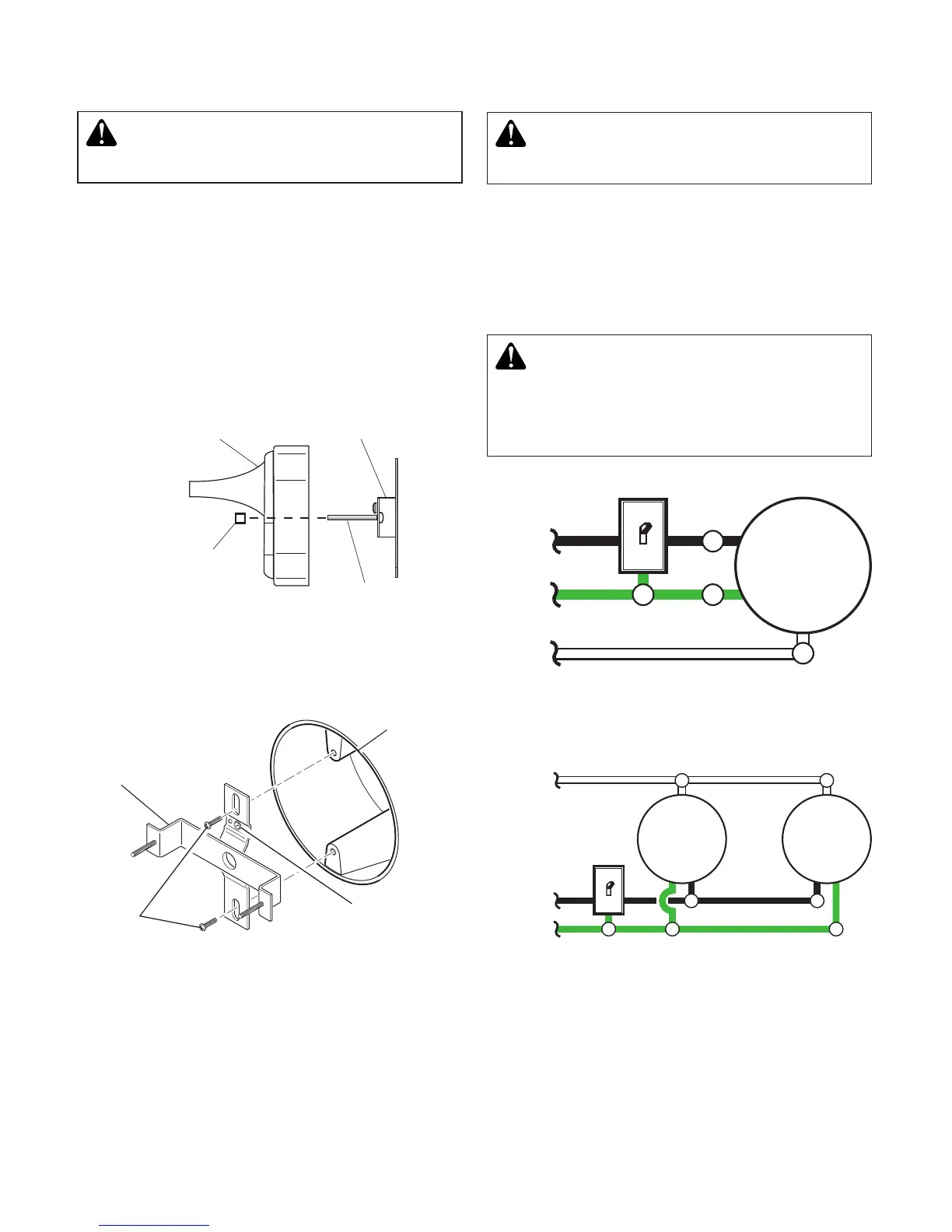

WIRING
CAUTION: DO NOT connect the RED
wire unless you want to control other
lights from the motion sensor (see Op-
tional Wiring).
Note: All wiring must be run in accordance with
the National Electrical Code through conduit
or another acceptable means. Contact a quali-
ed electrician if there is any question as to the
suitability of the system.
WARNING: Turn power o at circuit
breaker or fuse.
One Motion Light
Two Motion Lights
Black
White
Green
or Bare
Light
Fixture
Black
White
Green
or Bare
Light
Fixture
Light
Fixture
Ground Screw
INSTALLATION
Bracket
Mounting
Screws
Junction
Box
Note: We recommend having an assistant help hold
the lantern assembly during the wiring process.
For best performance, mount the xture about 6
feet (1.8 m) above the ground.
1. Remove two decorative nuts.
2. Remove X-Bar.
3. Tighten mounting screws on X-Bar nger
tight.
4. Attach X-Bar to junction box.
WARNING: Turn power o at circuit
breaker or fuse.
X-Bar
Decorative Nut
Lantern Base
Lantern Mounting
Screw
X-Bar
To Next Page
