~•ffMiifHfi
( )
Install
the
front
panel
on
the
control
panel.
Use
control
nuts
on
the
bushings
at
Source,
Treble,
Phase
,
and
Tuning.
( )
Install
four
knobs
for
1/ 4"
shaftsatSource,
Treble
,
Phase,
and
Tuning.
Turn
the
Treble
control
fully
counterclock-
wise.
Turn
the
shaft
of
the
Bass
control
fully
counterclockwise.
( )
Install
the
knob
with
the
setscrew
at
Bass.
Now
position
the
knob
so
that
the
indicator,
on
the
front
of it,
is
in
the
same
position
as
the
indicator
on
the
Treble
control.
Then
tighten
the
setscrew.
( )
Install
the
lever
knob
and
the
knob
for
a
3/
16"
shaft
at
Volume.
Refer
to
Pictorial
28
for
the
following
steps.
( )
Rotate
the
tuning
control
fully
counterclock-
wise
until
the
dial
pulley
stops
turning.
( )
Cut
off
the
end
of
the
dial
pointer
as
shown
in
inset
drawing
#1 on
Pictorial
28.
( )
Position
the
Receiver
so
it
rests
on
the
front
panel
controls.
( )
Slide
the
dial
pointer
onto
the
control
panel.
Then
place
the
dial
cord
over
hooks
1,
2,
and
3 of
the
pointer.
( )
Position
the
Receiver
so
thatthefrontpanel
faces
you.
Make
sure
the
Tuning
knob
is
in
the
full
counterclockwise
position.
Then
slide
the
dial
pointer
to
the
diamond
shape
next
to
number
88
as
shown
in
Inset
#2.
'
Page
43

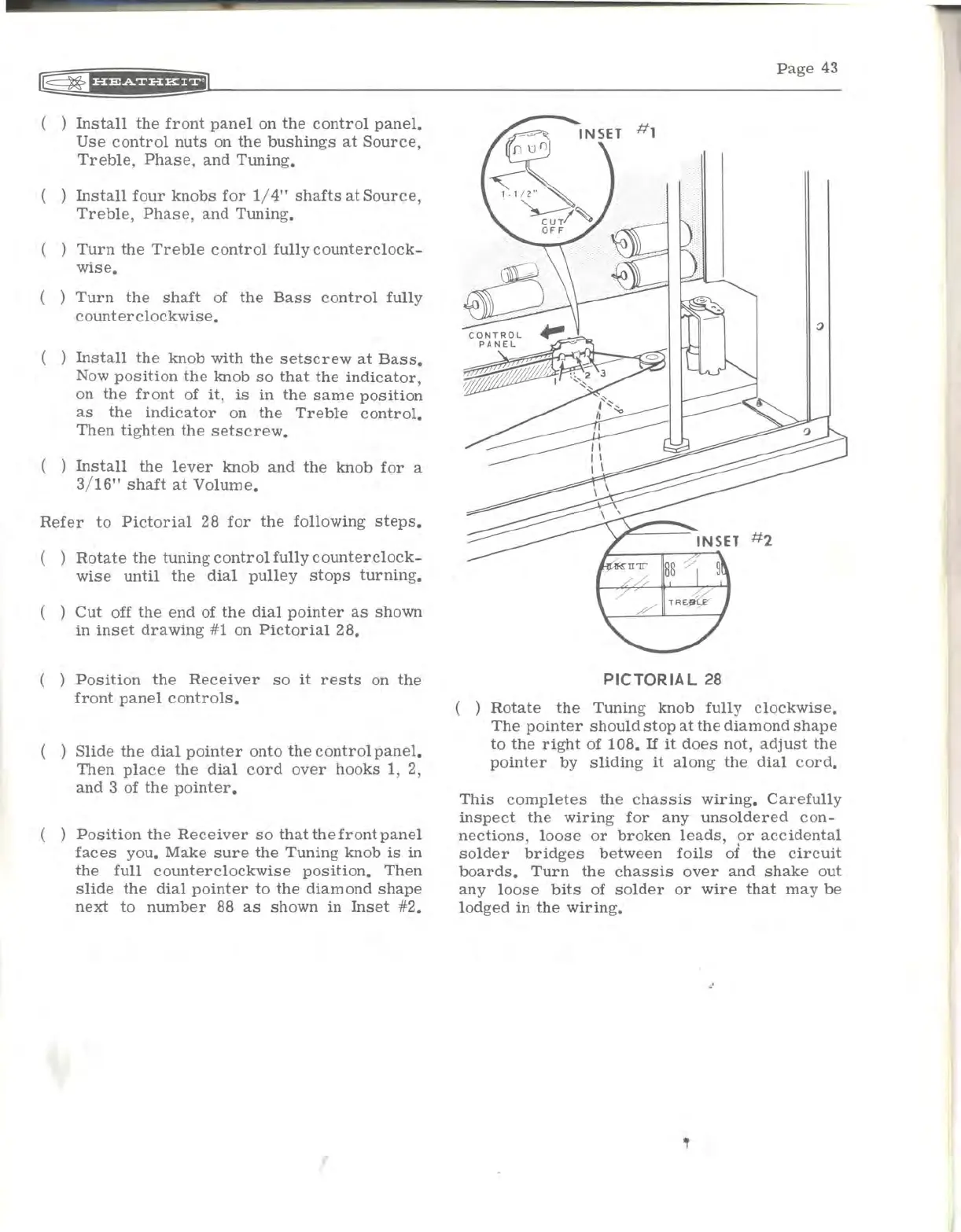

PICTORIAL
28
( )
Rotate
the
Tuning
knob
fully
clockwise.
The
pointer
should
stop
at
the
diamond
shape
to
the
right
of 108.
If
it
does
not,
adjust
the
pointer
by
sliding
it
along
the
dial
cord.
This
completes
the
chassis
wiring.
Carefully
inspect
the
wiring
for
any
unsoldered
con-
nections,
loose
or
broken
leads,
~r
accidental
solder
bridges
between
foils
of
the
circuit
boards.
Turn
the
chassis
over
and
shake
out
any
loose
bits
of
solder
or
wire
that
may
be
lodged
in
the
wiring.
