_pa_g_e_6
______________________________________________________________________
~~~fifi6Sfff{¥~

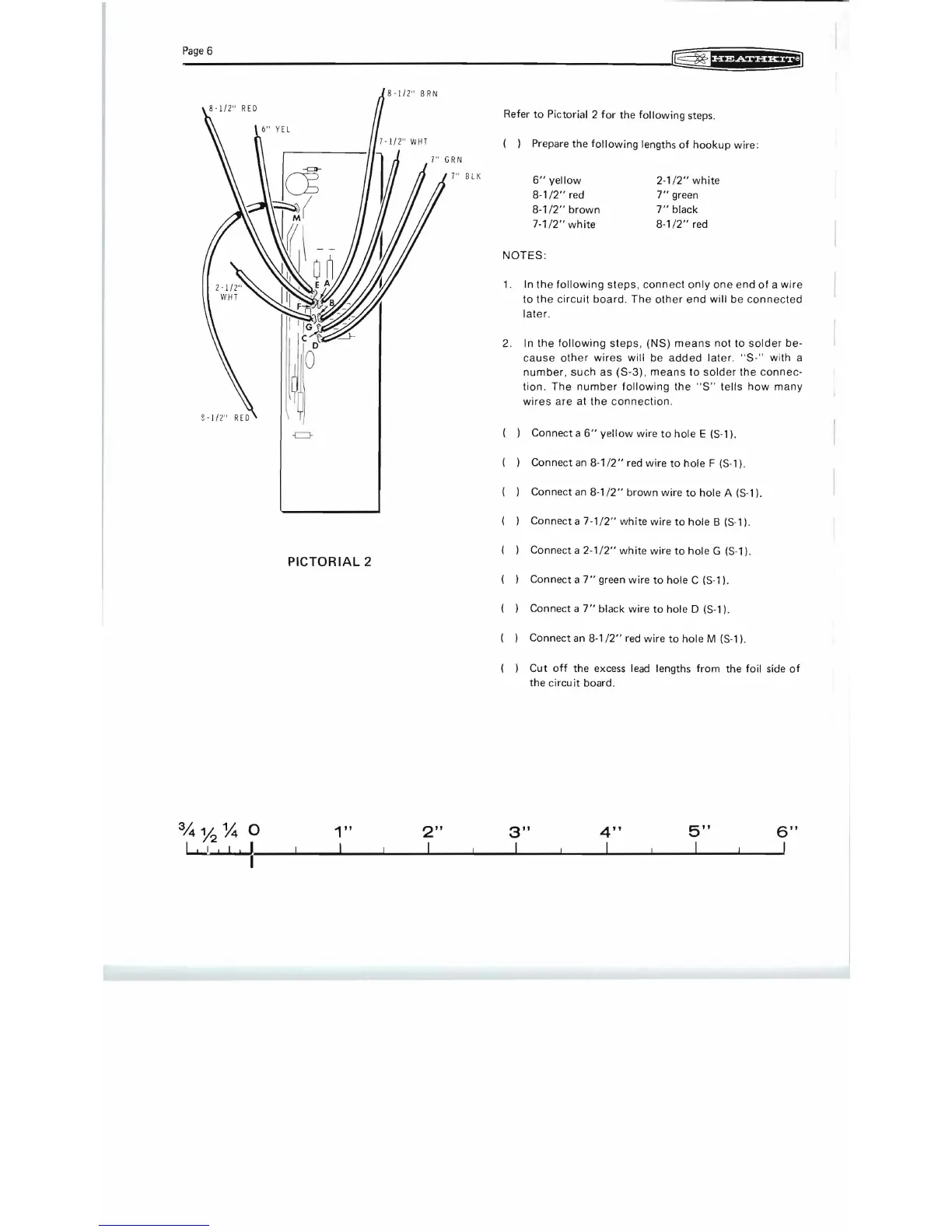

Refer
to
Pictorial 2
for
the
following
steps.
( ) Prepare
the
following
lengths
of
hookup
wire:
6"
yellow
2-1/2"
white
8-1/2"
red
7"
green
8-1/2"
brown
7"
black
7-1/2"
white
8-1/2"
red
NOTES:
1.
In
the
following
steps,
connect
only
one
end
of
a
wire
to
the
circuit
board
.
The
other
end
will
be
connected
later
.
2. In
the
following
steps,
(NS)
means
not
to
solder
be-
cause
other
wires
will
be
added
later.
"S-"
with a
number,
such
as
(S-3),
means
to
solder
the
connec-
tion.
The
number
following
the
"S"
tells
how
many
wires
are
at
the
connection.
Connect a
6"
yellow
wire
to
hole
E
(S
-1).
Connect
an
8-1/2"
red wire
to
hole
F (S-1).
Connect
an
8-1/2"
brown
wire
to
hole A (S-1).
Connect a 7
-1/2"
white
wire
to
hole
B (S-ll.
Connect a
2-1/2"
white
wire
to
hole
G (S-1).
PICTORIAL
2
Connect a
7"
green
wire
to
hole C (S-1).
Connect a
7"
black wire
to
hole 0 (S-1).
Connect
an
8-1/2"
red
wire
to
hole
M (S-1).
Cut
off
the excess lead lengths
from
the foil side
of
the
circuit
board.
34% % 0
I , I I I 1 I
1"
I
2"
I
3"
I
4"
I
5"
I
6"
,
