Page
31
@
~
f§f%iUHfi

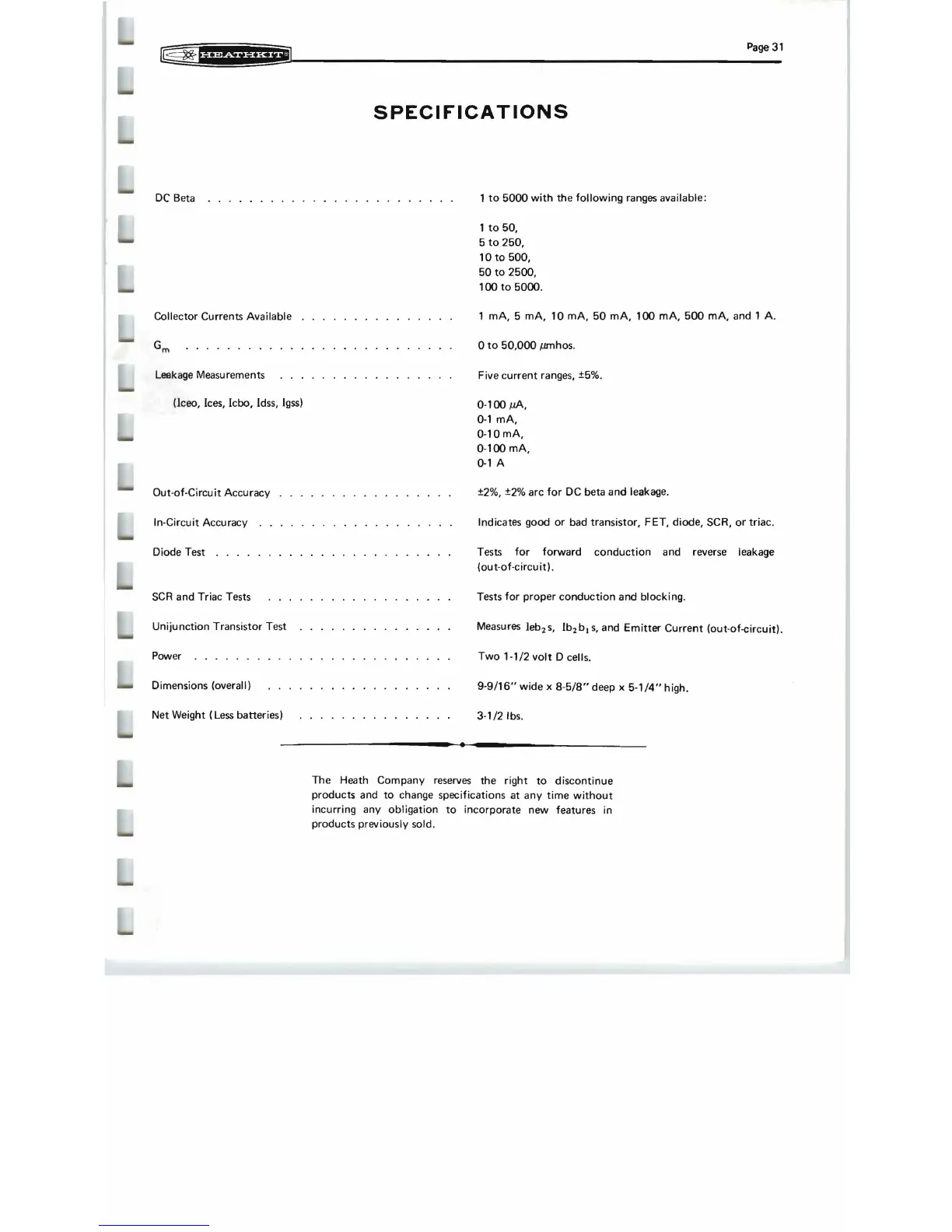

SPECIFICATIONS
DC
Beta 1
to
5000
with
the
following ranges available:
1
to
50,
5
to
250,
10
to
500,
50
to
2500,
100
to
5000.
Collector Currents Available
1 rnA, 5 rnA,
10
rnA,
50
rnA,
100
mA,
500
mA, and 1 A.
o
to
50,000
pmhos.
Leakage Measurements
Five
current
ranges, ±5%.
(Iceo, Ices, Icbo, Idss,
Igss)
0·100
pA,
0-1
rnA,
0-10mA,
0-
100
rnA,
D-1A
Out-of-Circuit Accuracy
±2%
,
±2%
arc
for
DC
beta
and
leakage.
In-Circuit Accuracy
Indicates good or bad transistor, FET, diode, SCR,
or
triac.
Diode Test
....
Tests
for
forward
conduction
and reverse leakage
(out-of-circuit).
SCR
and
Triac Tests
Tests for proper
conduction
and
blocking.
Unijunction Transistor Test
Measures leb
2
S,
Ib
2
b)
s,
and Emitter
Current
(out-of-circuit).
Power
Two 1-1/2 volt D cells.
Dimensions
(overall)
9-9/16"
wide x
8-5/8"
deep x
5-1/4"
high.
Net Weight (Less batteries)
3-1/2Ibs
.
•
The
Heath Company reserves
the
right
to
discontinue
products and
to
change specifications
at
any
time
wi
thout
incurring any obligation
to
incorporate new features
in
products previously sold.
