14 Heatilator • CNXT Series • 4000-011 Rev N • 11/05
Top Vent—Horizontal Termination—Two or Three Elbows
You may use a maximum of three 90° elbows (or six 45° elbows) in any vent confi guration, Some may be installed hori-
zontally.
H
1
V
1
H
2
H
3
Installed
Horizontally
Installed
Vertically
H
2

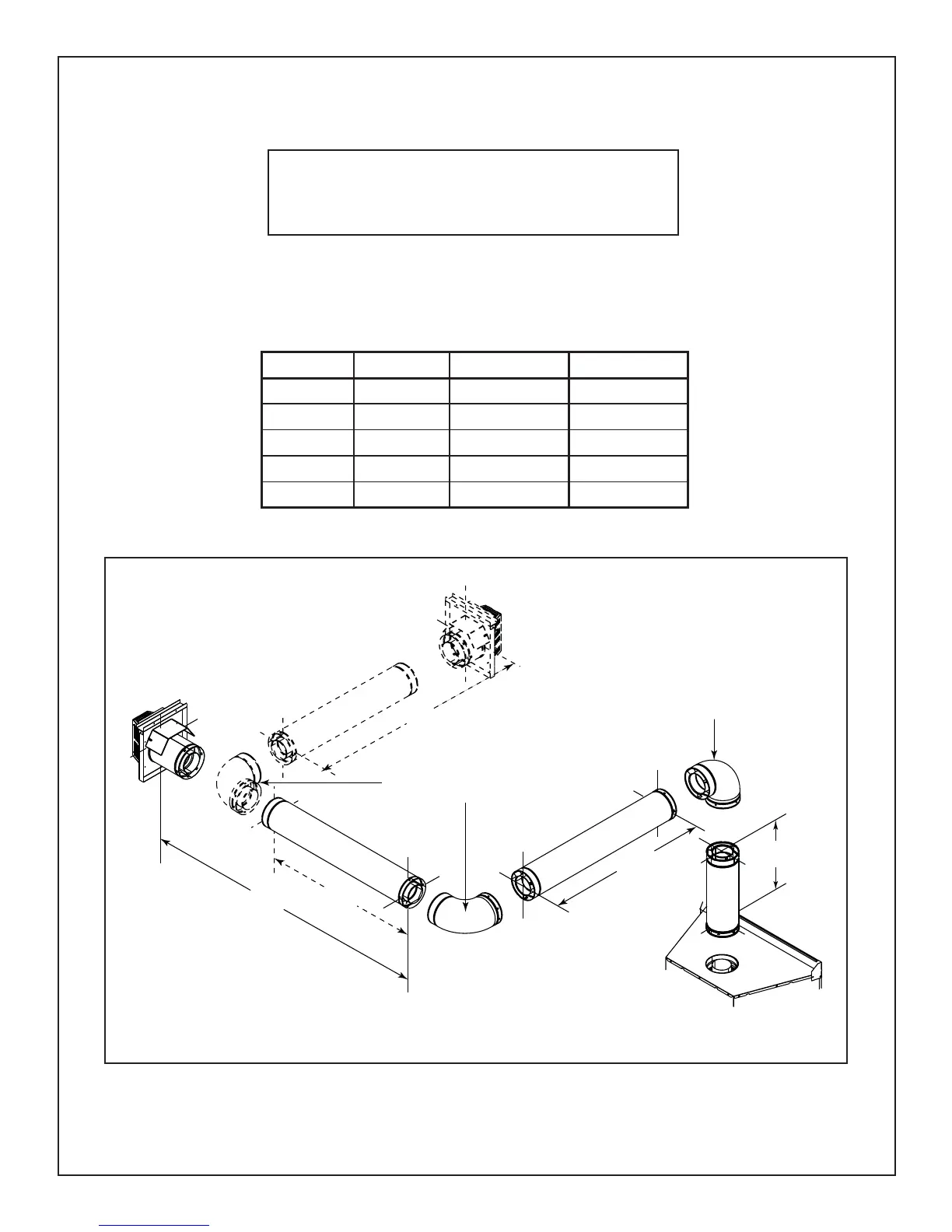

Figure 5.6 Two or Three Elbows, some Horizontal
Note: Subtract 3 ft (914 mm) from the total horizontal
measurement for each 90° elbow installed horizontally.
Subtract 1-1/2 ft (457 mm) from the total horizontal
measurement for each 45° elbow installed horizontally.
Table 5.3
V
1
min. V
1
max. H
1
+H
2
max. H
1
+H
2
+H
3
max.
6 in./152 mm x 6 ft/1.83 m x
12 in./305 mm x 11 ft/3.35 m 11 ft/3.35 m
18 in./457 mm x 18 ft/5.49 m 18 ft/5.49 m
24 in./610 mm x 25 ft/7.62 m 25 ft/7.62 m
x 25 ft/7.62 m 25 ft/7.62 m 25 ft/7.62 m
