Heatilator • CNXT Series • 4000-011 Rev N • 11/05 15
12 ft (3.66 m) min.
60 ft (18.29 m) max.

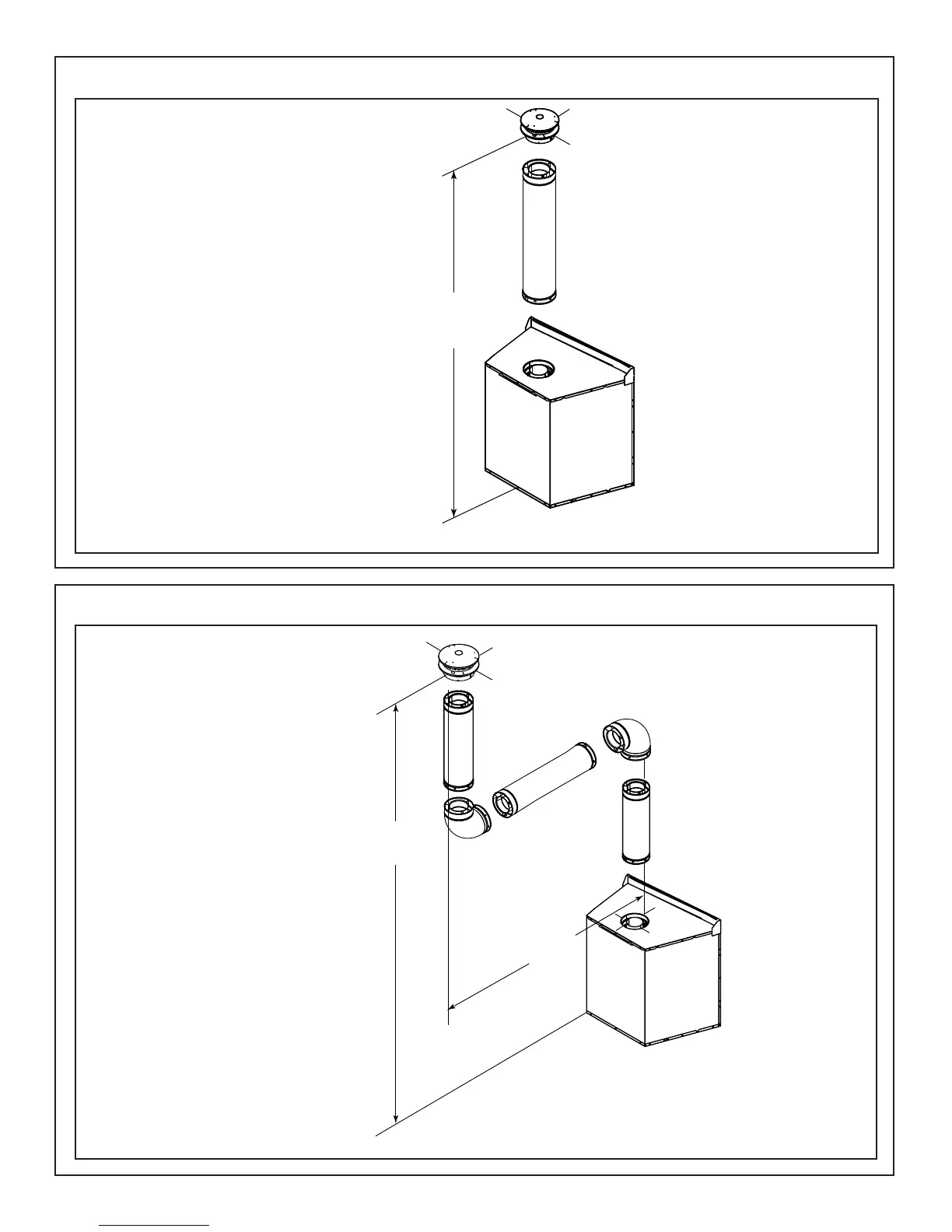

Top Vent—Vertical Termination—No Elbows
Top Vent—Vertical Termination—Two Elbows
Figure 5.7 Vertical Termination - No Elbows
12 ft (3.66 m) min.
60 ft (18.29 m) max.
Maximum horizontal
run is 100% of
vertical, but cannot
exceed 26 ft (7.92 m)
Figure 5.8 Vertical Termination - Two Elbows
