Heatilator • Constitution EPA Fireplace • 480-1091C
Page 63
12
Reference Materials

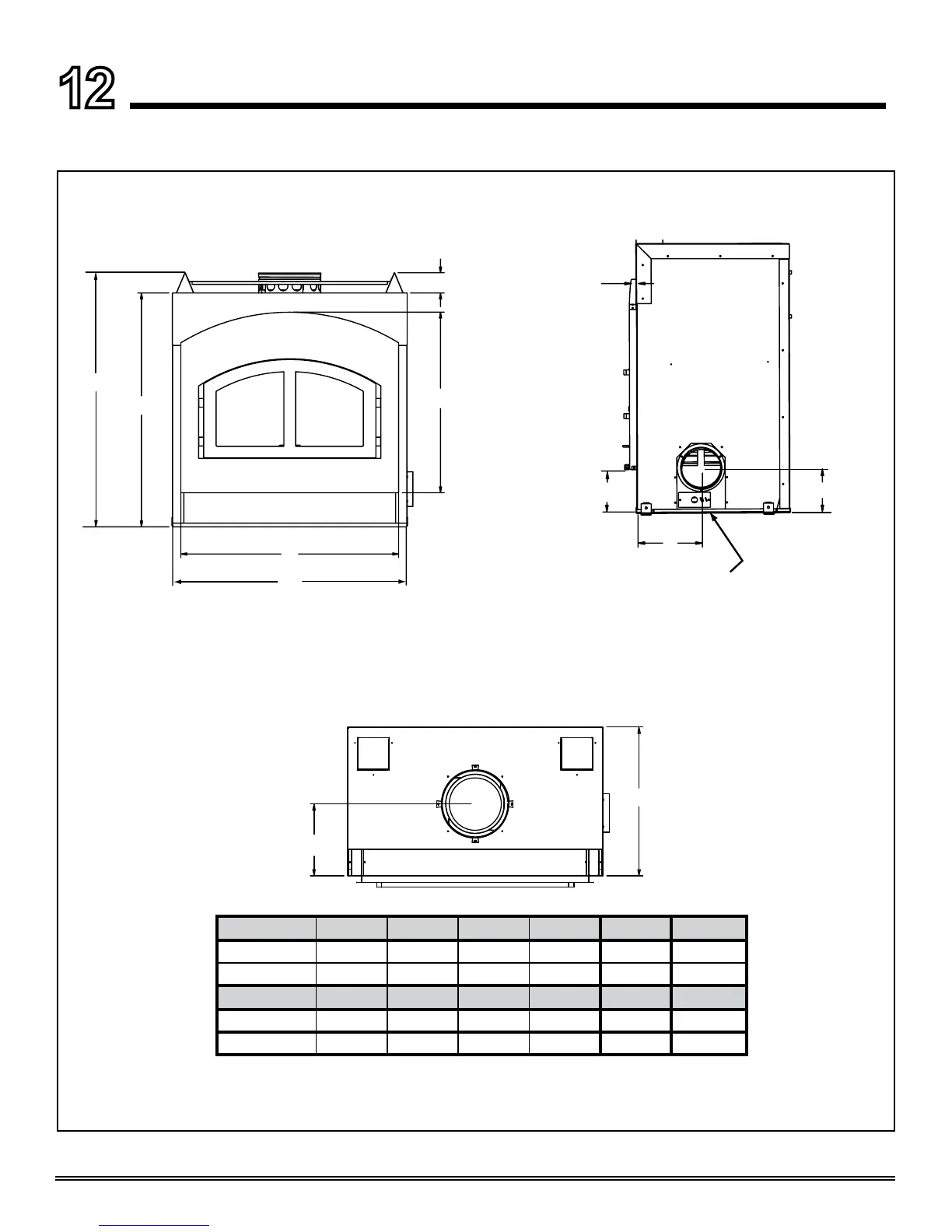

A. Fireplace Dimensions
L
K
A
B
C
D
E
F
TOP VIEW
FRONT VIEW
SIDE VIEW
Constitution A B C D E F
in
3-1/2 31-1/8 40 37 40-5/16 43-13/16
mm
89 791 1016 940 1024 1100
G H I J K L
in.
6-1/2 9-11/16 5-7/8 1 23-1/8 11-1/8
mm
165 246 149 25 587 283
Figure 63.1
Blower Electrical
Access
(right side of fireplace)
G
H
I
J
