Heatilator • Constitution EPA Fireplace • 480-1091C
Page 37

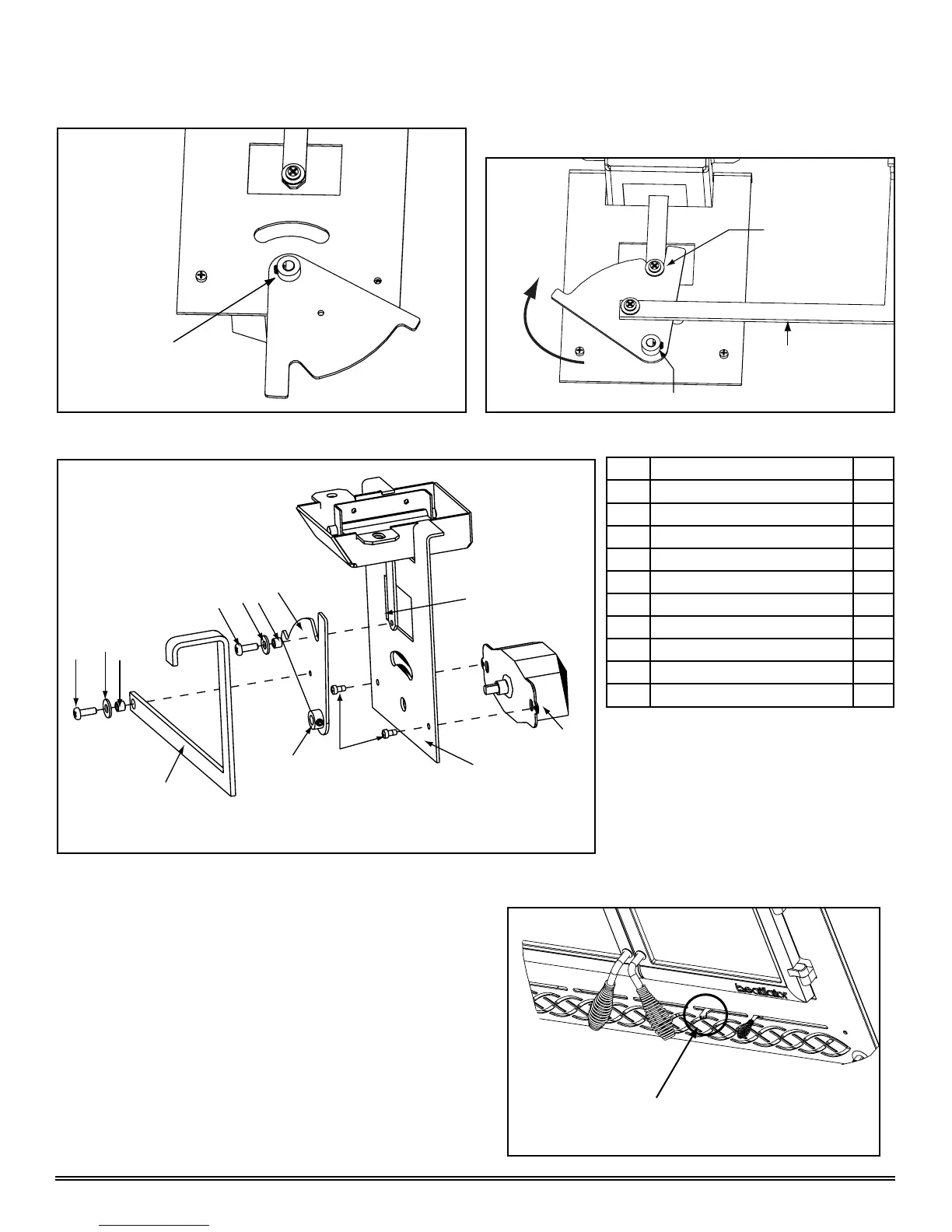

3. Place linkage control arm over timer shaft and tighten
set screw. Figure 37.1.
4. Rotate linkage control arm into nal position and re-
attach to mounting plate. Note that the D cut is now
facing the linkage timer arm. Re-attach the linkage timer
arm. Figure 37.2.
Tighten set screw
Attach to
Mounting
Plate
Attach Linkage
Timer Arm
“D” cut is not facing the Linkage Arm
Figure 37.1
Figure 37.2
1
2
3
4
5
3
4
5
6
7
8
9
10
Figure 37.3 Exploded View of Entire Assembly for Point of Reference only
Item Description Qty
1 Door Linkage 1
2 Linkage Control Arm 1
3 Bushing 2
4 Washer SAE #10 2
5 Screw8-32x1/2PHPHLTC 2
6 Linkage Timer Arm 1
7 AttachmentNut&SetScrew 1
8 Screw6-32x1/4PHPHLTC 2
9 MountingBracket 1
10 Timer,Mechanical,12hours 1
F. Manual Timer Override
Iftimerisunintentionallyengaged,pushtheTimerOverride
Lever to the left. This will disengage the timer and set the
replacebacktothelowsetting.Figure37.6.
Timer Override Lever
Figure 37.6
