Heatilator CONSTITUTION C-40 - Chimney Components

Page 64
Heatilator • Constitution EPA Fireplace • 480-1091C
November 11, 2008

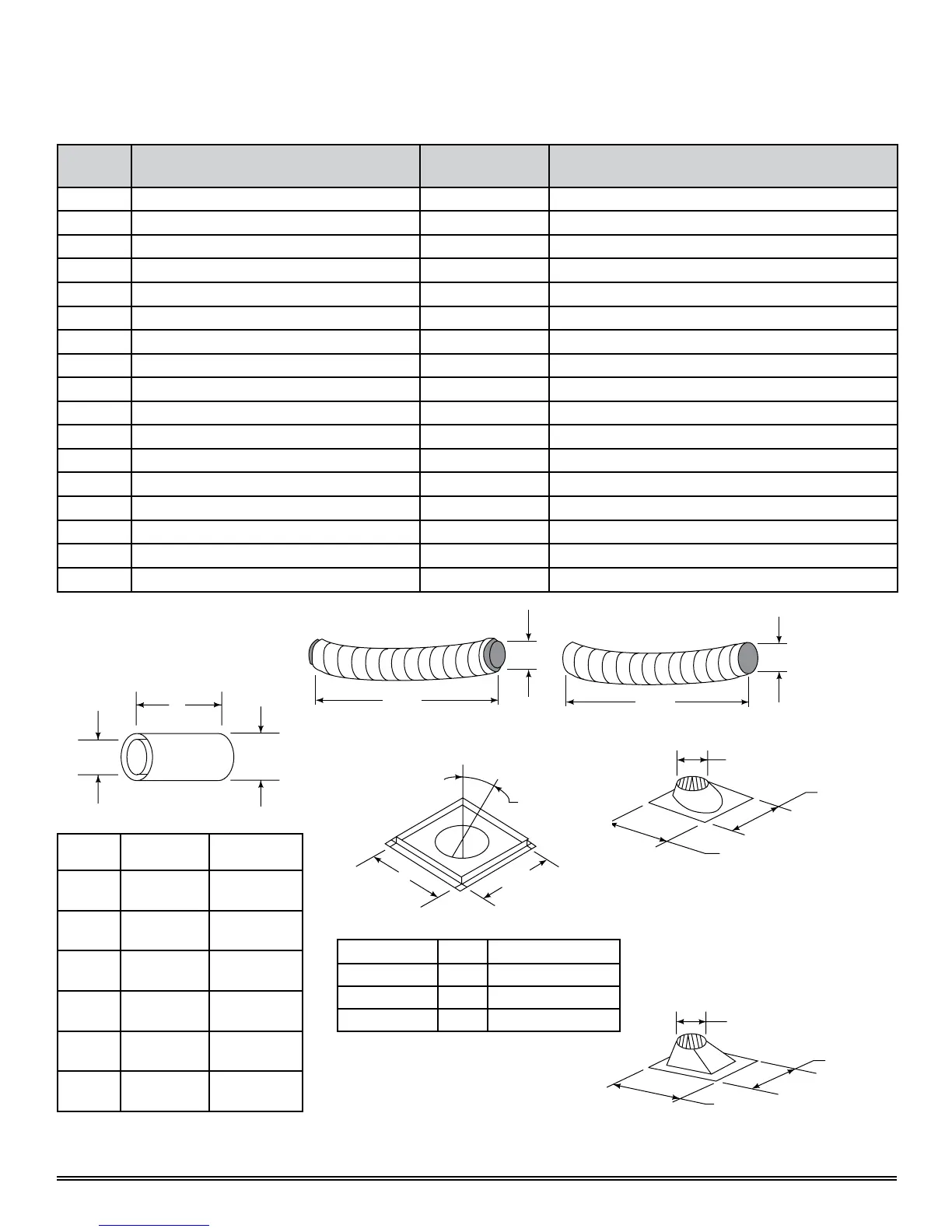

B. Chimney Components
RF370 - Roof Flashing
Flat to 6/12 Pitch
12 in.
(305 mm)
24-5/8in.
(625 mm)
27-3/8in.
(695 mm)
RF371 - Roof Flashing
6/12 to 12/12 Pitch
12in.
(305 mm)
31 in.
(787 mm)
24-5/8in.
(625 mm)
Firestop Spacer
A
B
14-1/2in.
(368 mm)
A
8 in.
(203 mm)
10-1/2in.
(267 mm)
A=ActualLength
B=Effectivelength(lengthofchimneypart
after it has been snapped to another)
ID4
INSULATED DUCT
UD4
UNINSULATED DUCT
4 in.
(102 mm)
4 in.
(102 mm)
42 in.
(10669 mm)
42 in.
(10669 mm)
ThefollowingdrawingsshowtheSL-300Serieschimneyandreplacecomponentswhichmaybesafelyused
withthisreplace.
Catalog No. A B
FS338 0° 14-1/2” (368 mm)
FS339 15° 18-3/8” (467 mm)
FS340 30° 16-3/4” (425 mm)
Chimney Sections
Catalog
No.
A B
SL306 6 in.
(152 mm)
4-3/4 in.
(121 mm)
SL312 12 in.
(305 mm)
10-3/4 in.
(273 mm)
SL318 18 in.
(457 mm)
16-3/4 in.
(425 mm)
SL324 24 in.
(610 mm)
22-3/4 in.
(578 mm)
SL336 36 in.
(914 mm)
34-3/4 in.
(883 mm)
SL348 48 in.
(1219 mm)
46-3/4 in.
(1187 mm)
Catalog
No.
Description Catalog No. Description
CAK4A Chimney Air Kit CB876 Chimney Bracket
ID4 InsulatedDuct/OutsideAir RF370 RoofFlashing-Flatto6/12Pitch
UD4 UninsulatedDuct/OutsideAir RF371 RoofFlashing-6/12to12/12Pitch
SL306 Chimney Section - 6 in. (152mm) Long TR344 Round Termination Cap
SL312 Chimney Section - 12 in. (305mm) Long TR342 Round Telescoping Termination Cap
SL318 Chimney Section - 18 in. (457mm) Long ST375 Square Termination Cap
SL324 Chimney Section - 24 in. (610mm) Long TS345 Square Termination Cap
SL336 Chimney Section - 36 in. (914mm) Long CT35M Chase Top (Sold in pack of 10)
SL348 Chimney Section - 48 in. (1219mm) Long 12966A MobileHomeThimble
SL3 Chimney Stabilizer MH841 MobileHomeThimbleExtension,20in.(508 mm)
SL315 ChimneyOffset/Return-15° HX4 MICOREHearthExtension,20in.(508mm)wide
SL330 ChimneyOffset/Return-30° HEATZONE-WOOD Heat Zone Kit
FS338 Firestop - Straight SCR-433 Fire Screen
FS339 Firestop - 15° TMP-433 MetalFaceTemplate
FS340 Firestop - 30° LINTEL-433 Lintel Bar
AS8 Straight Attic Insulation Shield TV-TRK Round Termination Top Vent Kit
JB877 Chimney Joint Band 9201
Simpson Dura-Plus Base Plate
