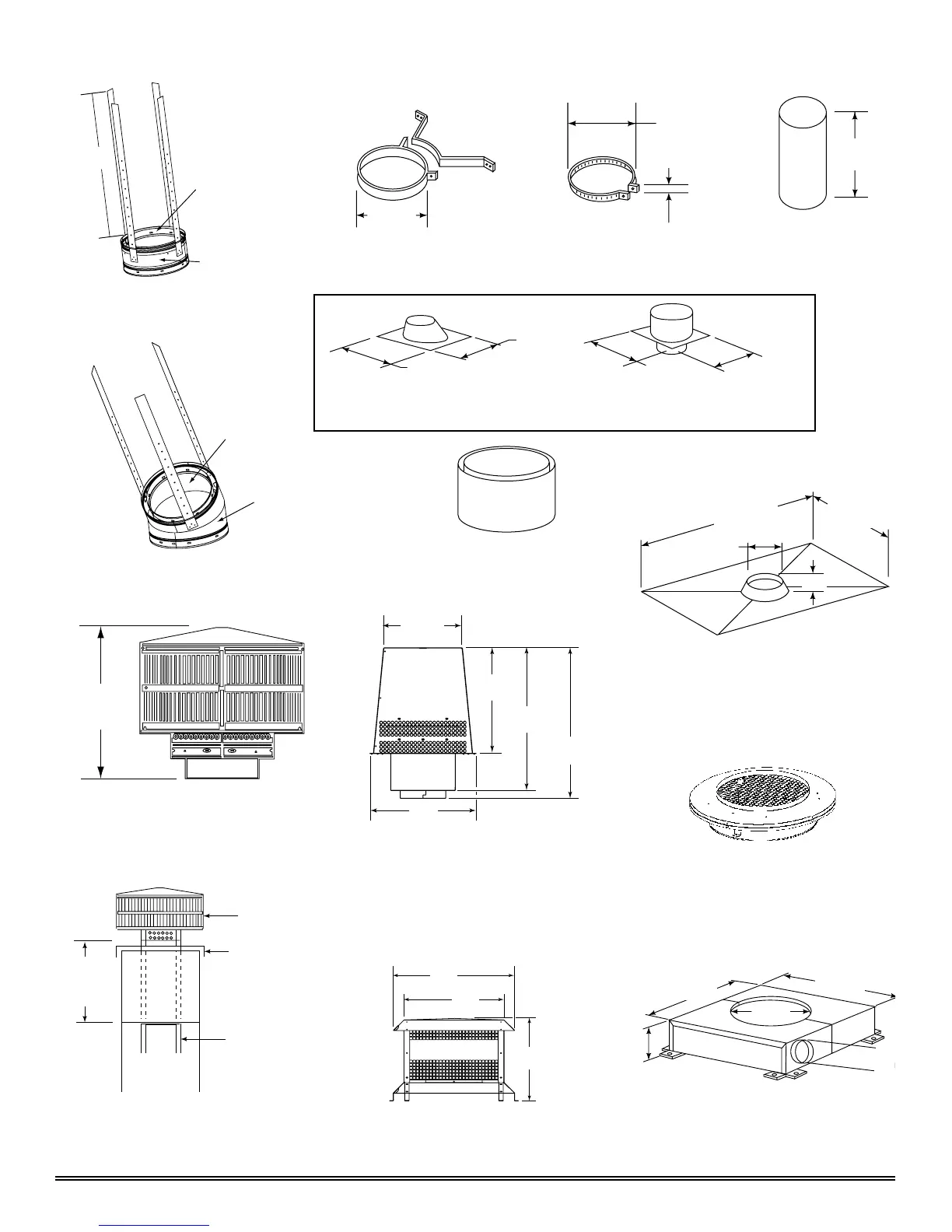

AS8
Straight Attic
Insulation Shield
24 in.
(610 mm)
SL3 - Chimney Stabilizer
Inside
Diameter
8 in.
(203 mm)
Outside
Diameter
10-1/2in.
(267mm)
20-3/4in.
(527 mm)
SL315-SL330 - Offset/Return
Inside
Diameter
8 in.
(203 mm)
Outside
Diameter
10-1/2in.
(267 mm)
CB876
Chimney Bracket
10-1/2in.
(267 mm)
2 in.
(51 mm)
10-1/2in.
(267 mm)
JB877
Joint Band
12 in.
(305 mm)
12 in.
(305 mm)
5-1/4in.
(133 mm)
4 in.
(102 mm)
10-1/2in.
(305 mm)
CAK4A
Chimney Air Kit
TR344
Round Termination Cap
15-3/4in.
(400 mm)
TR342
Round Telescoping
Termination Cap
TR342
TERMINATIONCAP
TOP OF
UPPERMOST
CHIMNEY
SECTION
14-1/2in.
(368 mm)
MAX.
DISTANCE
CHASE TOP
13-1/4 in.
(337 mm)
18 in.
(457 mm)
16-1/4 in.
(413 mm)
22 in.
(559 mm)
23-1/8 in.
(587 mm)
TS345/TS345P
Square Termination Cap
CT35M
Chase Top
10-7/8in.
(276 mm)
72 in.
(1829 mm)
36 in.
(914 mm)
2 in.
(51 mm)
MH841
Mobile Home Thimble
Extension 20 in. (508 mm)
24-5/8in.
(625 mm)
16-5/8in.
(422 mm)
29 in.
(737 mm)
16-5/8in.
(422 mm)
12966A
Mobile Home Thimble
ST375
Square Termination Cap
23 in.
(584 mm)
19 in.
(483 mm)
15-5/8 in.
(397 mm)
TR-TVK - Round
Termination Top Vent Kit
