Heatilator E39 - System Components

08/04 17335 Rev L 5
E36/39/42 INSTALLATION INSTRUCTIONS

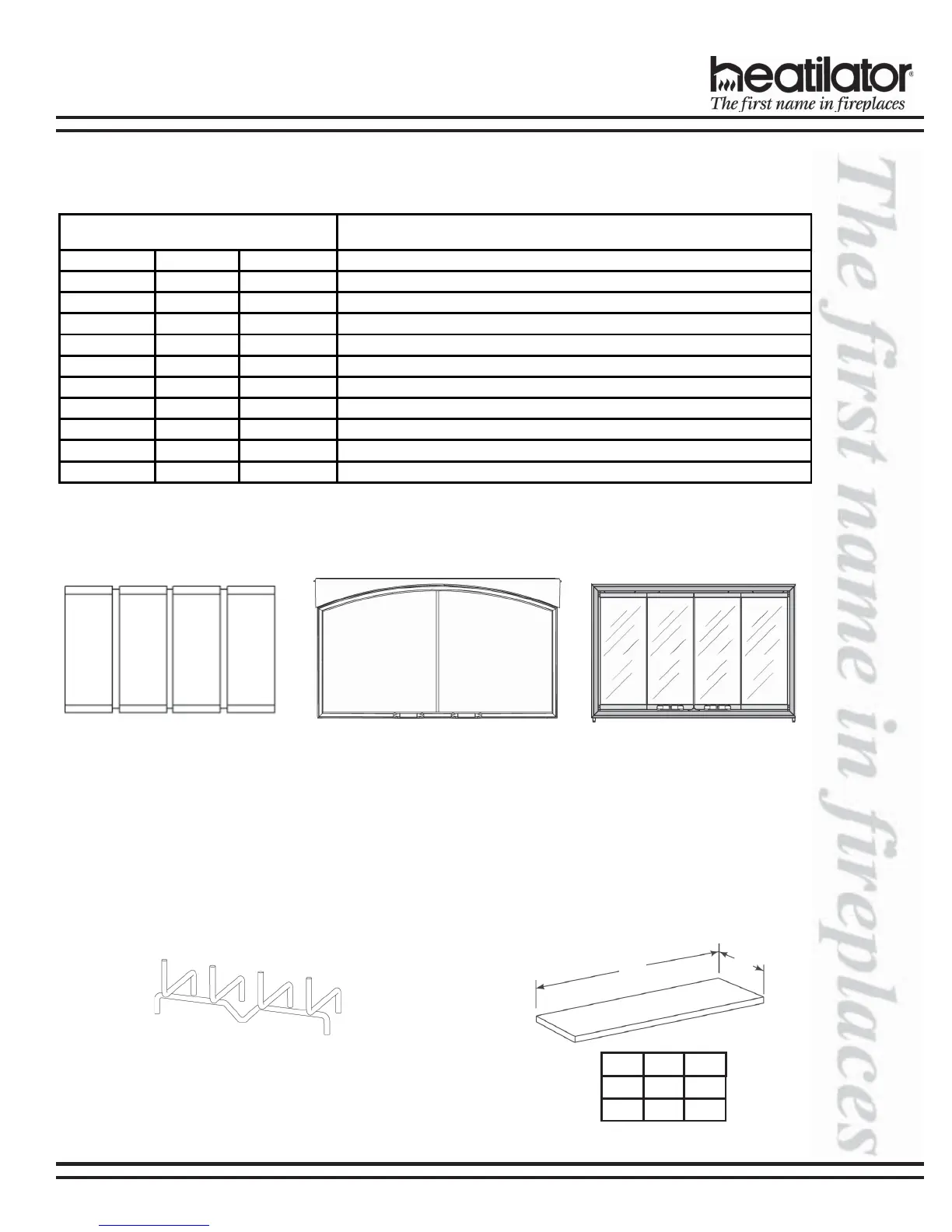

C. SYSTEM COMPONENTS
1. Fireplace Components
GR4
GR5
GR6
INTEGRAL GRATE
(Supplied)
GLASS DOORS
HEARTH EXTENSION
A
B
DP1036 DP1036B DP1036S
DP1042 DP1042B DP1042S
Perception Glass Doors
DM1036 DM1036B DM1036S
DM1039 DM1039B DM1039S
DM1042 DM1042B DM1042S
Bifold Glass Doors
DMA1036B
DMA1042B
Arched Cabinet Glass Doors
Catalog # Description:
E36 E39 E42 Fireplace, includes integral grate and hearth protection strips
HX3 HX3 HX4 Hearth Extension
DM1036 DM1039 DM1042 Original Bifold Glass Doors - Black Finish
DM1036B DM1039B DM1042B Original Bifold Glass Doors - Polished Brass Finish
DM1036S DM1039S DM1042S Original Bifold Glass Doors - Stainless Steel Finish
DP1036 none DP1042 Perception Glass Doors - Black Finish
DP1036B none DP1042B Perception Glass Doors - Polished Brass Finish
DP1036S none DP1042S Perception Glass Doors - Stainless Steel Finish
DMA1036B none DMA1042B Arched Cabinet Style Glass Doors - Polished Brass Finish
GR4 GR5 GR6 Integral Grate (included with fireplace)
AK14 Outside Air Kit
Cat # A B
HX3 52 in. 16 in.
HX4 66 in. 20 in.
