Heatilator ECOCHOISE CAB50-C - Page 18

18 August 23, 20197074-801C
HEATILATOR ECO CHOICE CAB50

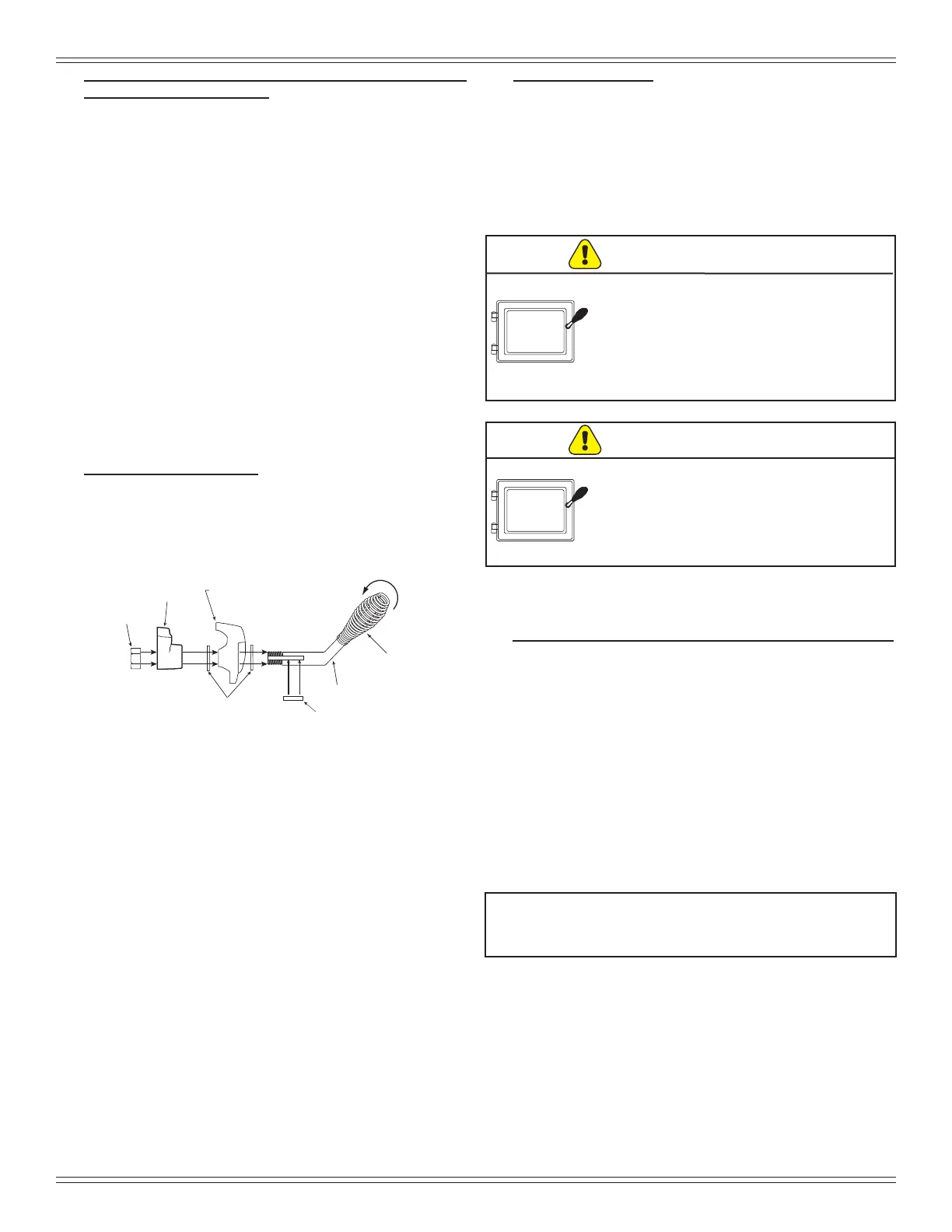

Figure 18.1
8. Soot and Fly Ash: Formation & Need for Removal in
Exhaust Venting System.
• Frequency: Yearly or more frequently depending on
ash build-up.
• By: Qualied Service Technician/Homeowner
Be sure the appliance is allowed to cool, has been
unplugged and the exhaust blower is o󰀨.
The products of combustion will contain small particles
of y ash. The y ash will collect in the exhaust venting
system and restrict the ow of the ue gases.
At start-up if there is incomplete combustion, or if there is
a shutdown or incorrect operation of the appliance it will
lead to some soot formation. This will collect in the exhaust
venting system.
The venting (chimney) system may need to be cleaned at
least once a year or more often depending upon the quality
of your fuel or if there are any horizontal pipe sections.
Ash will build up more quickly in the horizontal sections
and elbows.
9. Door Handle Inspection
• Frequency: Monthly or prior to heating season
• By: Homeowner
The gasket between the glass and rebox should be
inspected periodically to make sure there is a good seal.
Check door handle for smooth cam operation.
10. Cleaning the Glass
• Frequency: When clear view of the re pot becomes
obscure
• By: Homeowner
a. Appliance must be completely cool before
cleaning glass.
b. Vacuum y ash from glass and door rope.
c. Use a damp paper towel or any non-abrasive glass
cleaner. Wipe o󰀨 with dry towel.
11. Cleaning Exhaust Blower - Requires No Lubrication
• Frequency: Yearly or more frequently depending on
ash build-up
• By: Homeowner or Qualied Service Technician
a. Be sure the appliance is allowed to cool, has been
unplugged and the exhaust blower is o󰀨.
b. Follow the directions for cleaning the exhaust path
found on page 15.
c. If unable to thoroughly clean the blower through
this access, then follow the directions on page 22
for direct access to the exhaust blower.
d. Vacuum the blower’s impellers. Use care not to
bend or damage the blower ns.
NOTE: Hearth & Home Technologies recommends to
use a heavy duty vacuum cleaners specically
designed for solid fuel appliance cleaning.
Handle glass assembly with care.
When cleaning glass:
• Avoid striking, scratching or
slamming glass.
• Do NOT clean glass when hot.
• Do NOT use abrasive cleaners.
• Refer to maintenance instructions.
CAUTION
Handle glass with care.
• Inspect the gasket to ensure it
is undamaged.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass
assembly removed.
WARNING
Contre-écrou
Section transversale de
la porte (exemple)
Verrou à came
Rondelles
d’espacement
Clé carrée
Poignée de porte
Poignée
à ressort
