26 August 23, 20197074-801C
HEATILATOR ECO CHOICE CAB50

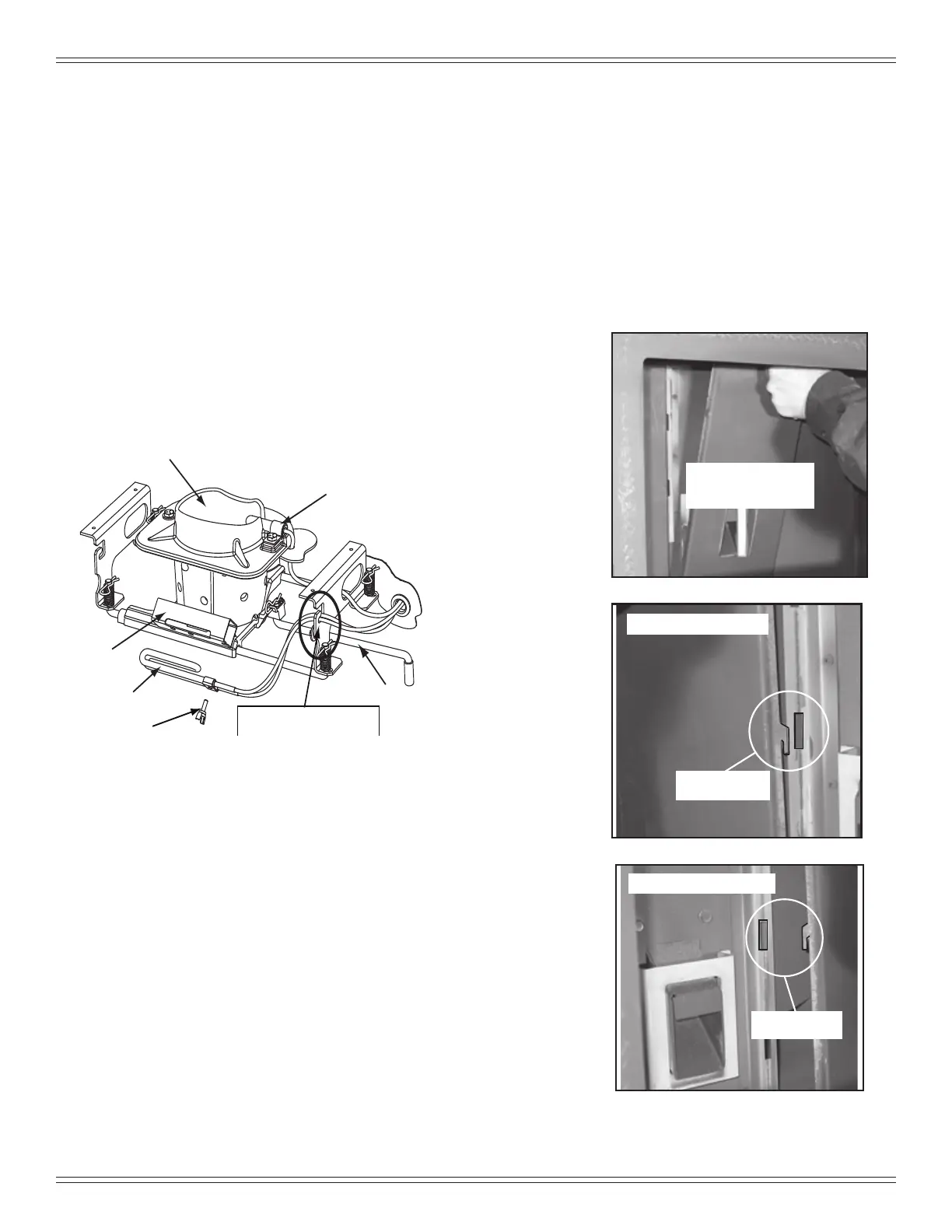

D. Igniter Replacement
1. Shut down the appliance by turning down the
thermostat and let the appliance completely cool down.
After the appliance has cooled down, unplug it and
remove the ash drawer.
2. The wire leads to the igniter are connected to the wire
harness with 1/4 inch male / female spade connectors.
3. Follow the directions on page 21 to remove the
upper and lower right side panels to expose the
spade connectors.
4. Disconnect the spade connectors and remove the
igniter from the chamber. Loosen thumb screw and
slide igniter out.
5. Install new igniter into the chamber and tighten thumb
screw. The wires MUST route through the wire retainer
hook and then re-connect the wires to the 2 leads with
the spade connectors (Figure 26.1).
6. Double check that the igniter wires are clear of any
movement, i.e. ash drawer, repot cleaning rod, etc.
7. Re-install the ash drawer and side panel and
re-connect the power.
E. Bae Removal & Replace
1. Shut down the appliance by turning down the
thermostat and let the appliance completely cool down.
2. Remove the center bae rst by using the handle at
the top of the bae and pull up and then towards you.
The hooks on the bae will slide out of the slots in the
bracket (Figure 26.2).
3. Remove the left bae and then the right bae
by pulling up and then towards you. The left
and right baes have similar hooks and slots
(Figures 26.3 and 26.4).
4. Re-install the baes in reverse order. Be careful to
insert the hooks in their respective slots. Be sure the
baes are completely secure/seated (close, if not
touching, the rebox oor).
Firepot
Igniter
Igniter
Chamber
Thermocouple &
Thermocouple Cover
Thumb Screw
Firepot Cleaning
Rod
Igniter Wires
MUST BE ROUTED
Through Wire Retainer Hook
Figure 26.1
Figure 26.2
Figure 26.3
Figure 26.4
Use handle at top of
center baffle to pull up
and then towards you.
Lift up to remove
hooks from slots
Remove left baffle
Remove right baffle
Lift up to remove
hooks from slots
