Service Parts
CAB50-C
Beginning Manufacturing Date: Mar 2019
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and
Home Technologies does not sell directly to consumers. Provide model number and serial number when
requesting service parts from your dealer or distributor.
Stocked at
Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Hopper Lid Assembly SRV7074-009
Y
2 Handle, Hopper Lid SRV200-0110
3 Top Assembly SRV7074-032
4 Door Assembly SRV7058-014
4.1 Glass Assembly SRV7058-015 Y
4.2 Rope, Door, 3/4” X 84” 832-1680 Y
Corner Tape 1 Ft SRV560-437-9
Gasket, Glass Tape, 3/4” X 1/8” 5 Ft 832-0460 Y
4.3 Hinge Pin, 1/2” Nickel SRV430-5320
4.4 Door Handle Assembly SRV7058-030 Y
4.5 Spring Handle, 1/2” Black 250-8330 Y
4.6 Handle, Formed Door SRV7058-182
4.7
Key Latch, Cam SRV430-1151
4.8
Washer, SAE, 3/8 (Qty 2 req) Pkg of 3 832-0990 Y
4.9
Cam Latch SRV430-1141
4.10
Nut, 2-Way Side-Lock Jam Pkg of 24 226-0100/24 Y
5 Bumper, Rubber
Pkg of 12
SRV224-0340/12 Y
6 Bae Assembly SRV7059-026
Y
7.1 Thermocouple Protection Tube
SRV7034-186 Y
Pkg of 10 SRV7034-186/10
7.2 Half Clip 7000-321
7.3 Thermocouple 812-4470 Y
Additional Service Parts on following page.

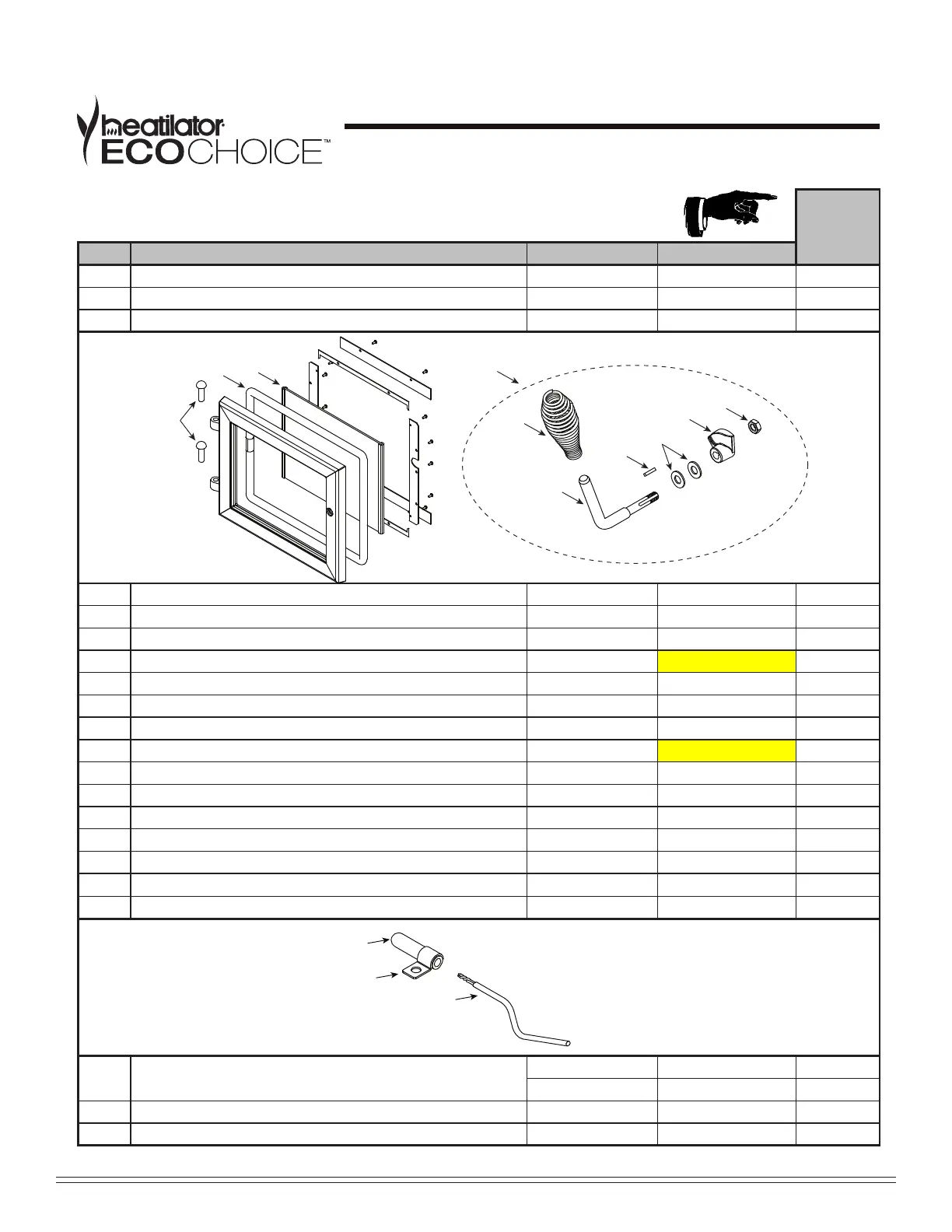

#7 Thermocouple Assembly
#4 Door Assembly
4.5
4.6
4.7
4.8
4.9
4.10
4.4
4.3
4.2
4.1
7.1
7.2
7.3
