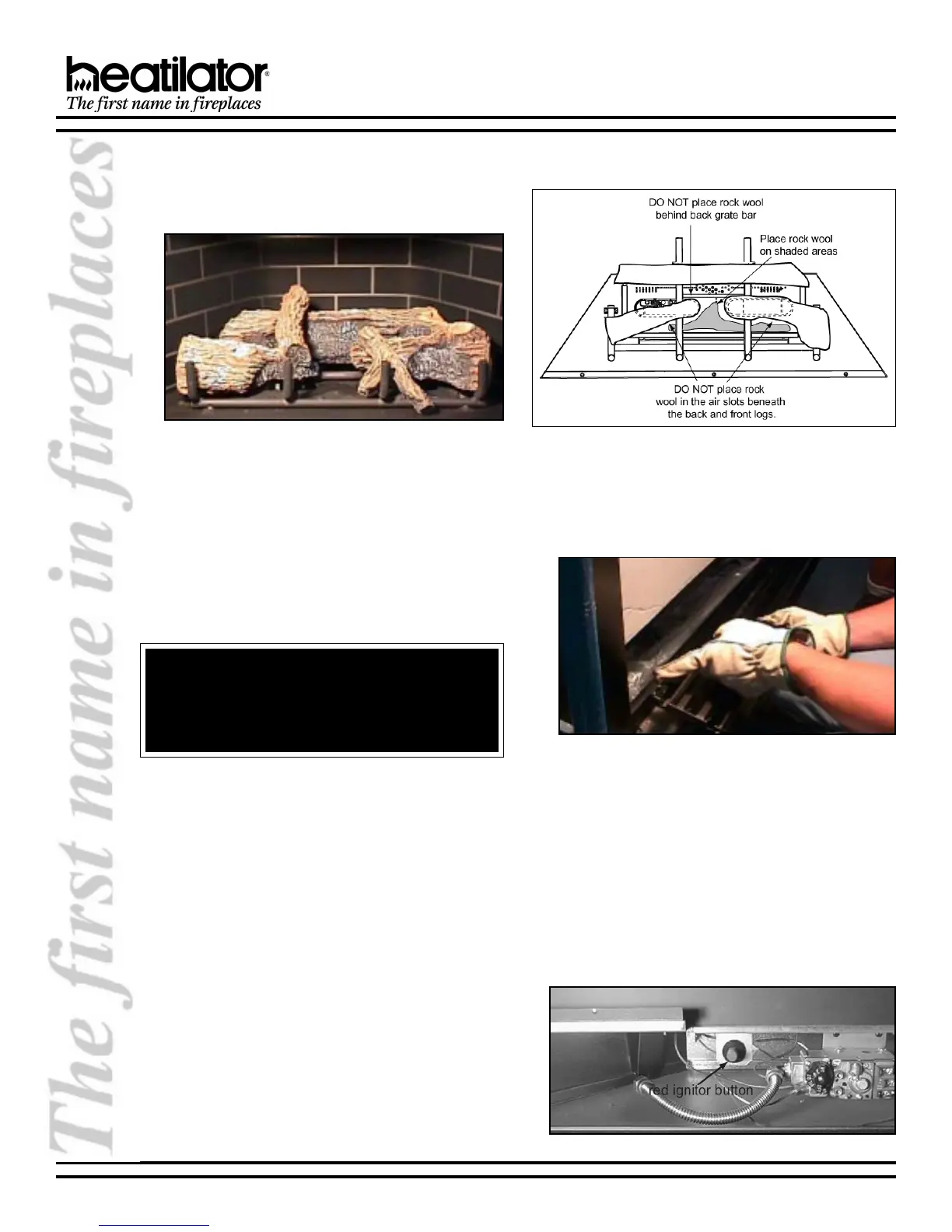

28466 Rev H 14 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
I. DETERMINING THE IGNITION TYPE
Figure 25 - Standing Pilot Ignition
To determine whether your appliance is an electronic
ignition or a standing pilot ignition, open the control access
panel to examine the wiring system. If your system has a
red ignitor button, as shown in Figure 25, you own a
standing pilot ignition appliance. If no red ignitor button is
present, you own an electronic ignition appliance.
You may also check the rating label located on the inside
of the control access panel to determine ignition type.
Figure 22 - Log Set for NOVUS
5. APPLIANCE PREPARATION
a. Log Set
The log set should look similar to that in
Figure22.
WARNING! RISK OF CARBON MONOXIDE!
Do not hit or strike glass. Do not operate this
appliance with the glass removed, broken, or not
sealed.
7. CONTROL ACCESS PANEL PLACEMENT
Place the control access panel as shown in Figure24.
b. Placing the Lava Rock and Vermiculite
See Figure 23 for lava rock and vermiculite
placement.
c. Placing the Rock Wool
Place a small amount of 1/2 diameter pieces
(dime-size) of rock wool on the burner pan so
that the rock wool touches but does not cover the
holes in the burner pan. This will provide the
glowing embers look. See Figure 23.
Figure 24 - Control Access Panel
Figure 23
Placing the Rock Wool
(top logs removed for clarity)
6. GLASS AND SCREEN REPLACEMENT
See page 20 of this instruction manual.
