01-02 19 28466 Rev H
NOVUS B-VENT INSTALLATION INSTRUCTIONS
M. MAINTENANCE INSTRUCTIONS
1. CLEANING THE BURNER AND
CONTROL COMPARTMENT
Keep the burner and control compartment clean by
brushing and vacuuming at least once a year. Failure
to do this may shorten the fans life (where applicable).
Always turn off the wall switch (or remote control) and
gas valve before cleaning.

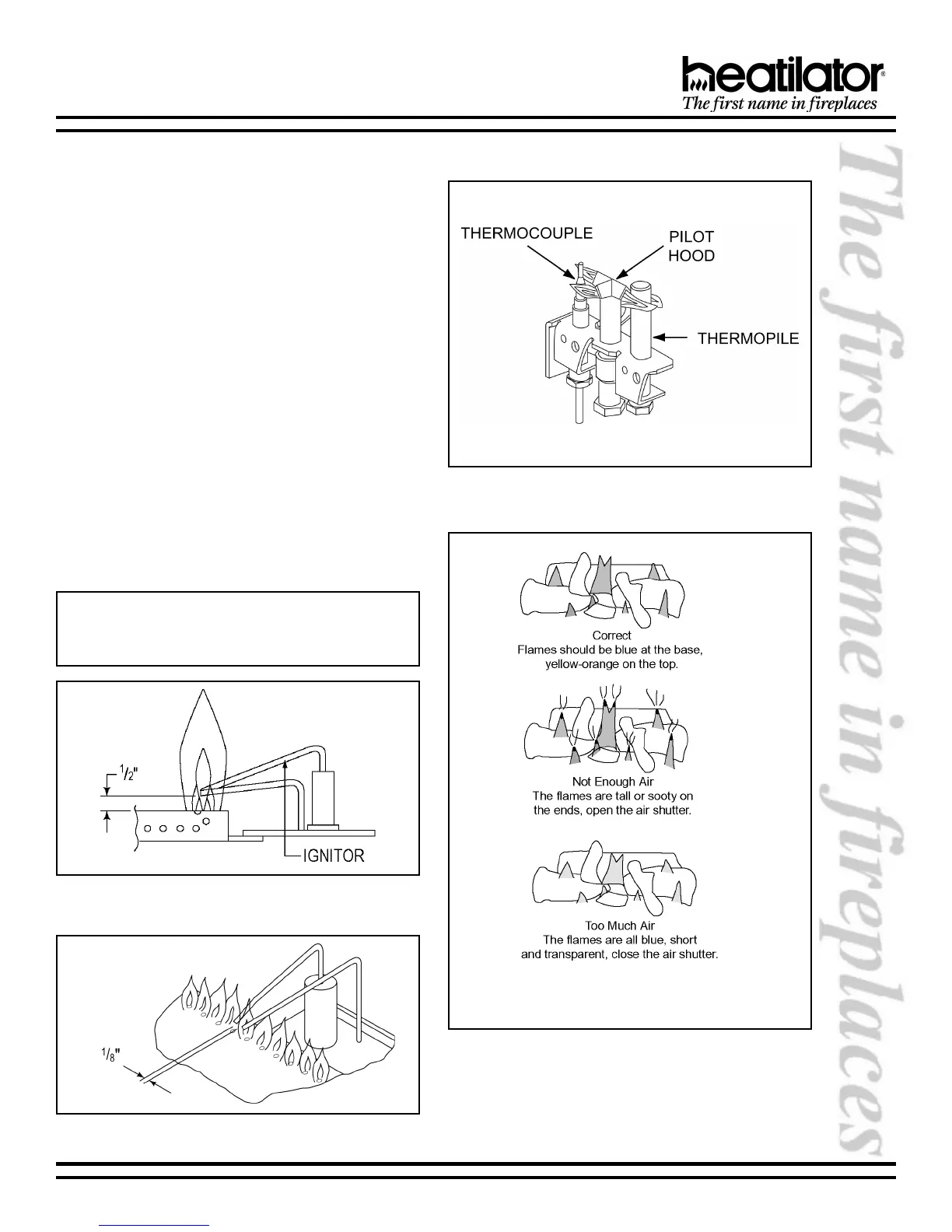

2. CHECKING FLAME PATTERNS
Visually check the flame of the burner periodically,
making sure the flames are steady, not lifting or
floating. The flame color should be blue with yellow
tips. The ignitor (electronic) or thermopile and
thermocouple (standing pilot) tips should be covered
with flame. See Figures 27-29.
If the vent configuration is installed incorrectly, the vent
may cause the flames inside the appliance to lift or
ghost, which is a dangerous situation. Inspect the
flames after installation to ensure proper
performance. See Figure 30. If the vent configuration
is correct, yet the flames are lifting or ghosting, shut
off gas to the appliance and contact the dealer you
purchased the appliance from.
Note: The look of the flames and embers may differ
based on the type of fuel and venting assembly that is
required.
Figure 27
Electronic Ignition
Figure 28
Electronic Ignition
Figure 29 - Standing Pilot
Figure 30
Flame Patterns
