TO CONNECT BOILER CONSULT
BOILER MAKERS DIAGRAM
NEUTRAL
LIVE
230V SUPPLY IN
230V AC 50/60Hz
REMOTE PROBE
SWITCHED LIVE TO BOILER
-RT A2 A1 N L
Remote
Air Sensor
Slimline
230VAC

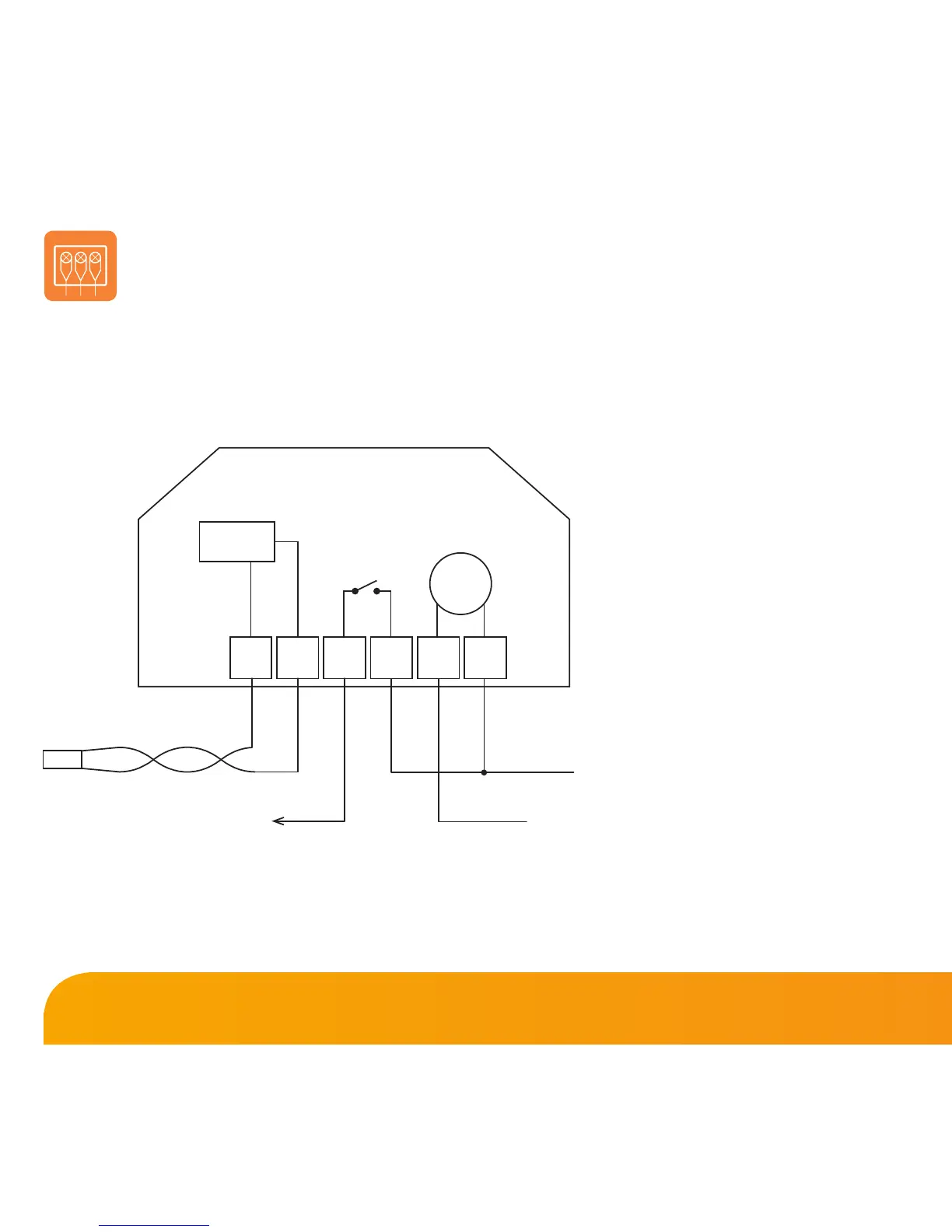

Wiring Diagram - Slimline to Boiler 230v
THIS UNIT MUST BE PROTECTED BY A FUSE OR RCD
25 Slimline Series
